Complete Product Range

Sleeve Material:EPDM;

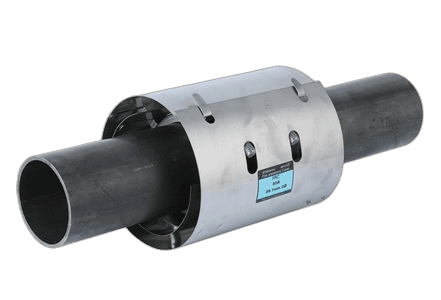

The Fire Protection Coupling is compliant with IACS standards. Installed with an Orbit Couplings Metal Lock S pipe coupling for axial restraint and pull out resistance. Specifically designed for fire protection systems.

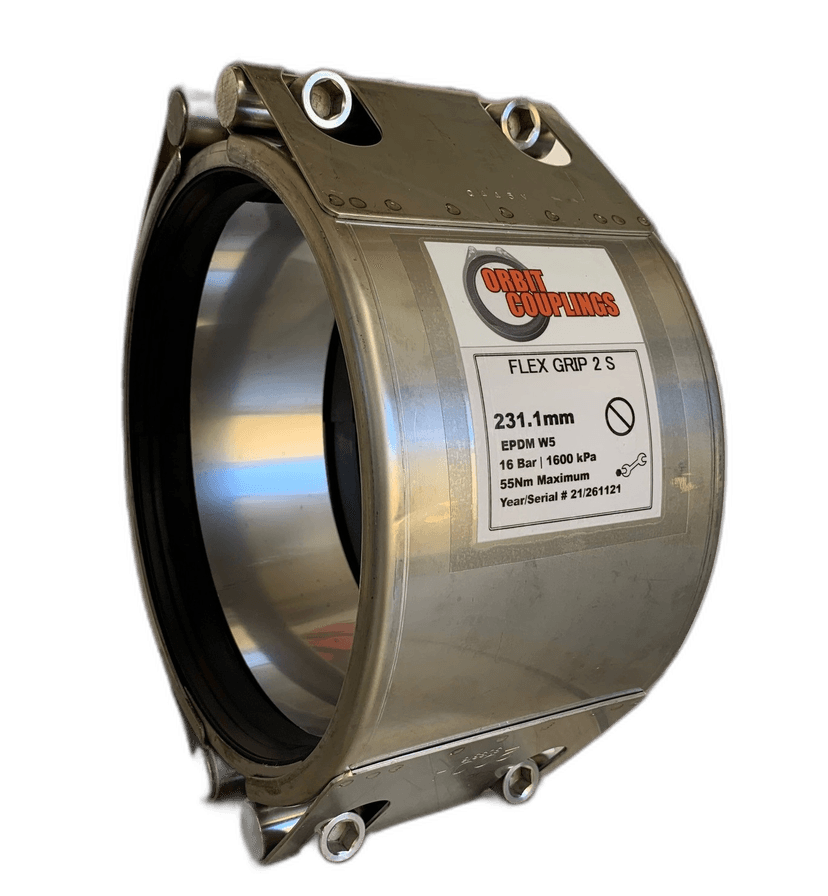

The Flex Grip 2 S is the two peice casing model, which can open into two halves for installation. The short model pipe coupling/ repair clamp with two locking mechanisms. Allowing for axial movement. This model is very strong, heavy duty with extra bolts, adding to the working pressure rating. Low pressure and High pressure versions available. Contact us about your high working pressure applications. Available up to Pipe Outside Diameter size 4000.0mm Please check your pipe Outside diameter before ordering. - High Pressure Pipe Couplings are available - contact us for a quote. - High Pressure Pipe Repair Clamps are available - contact us for a quote. - Different rubber material options are available such as NBR, EPDM, Viton - contact us for a quote - 12 months warranty on manufacturing defects only.

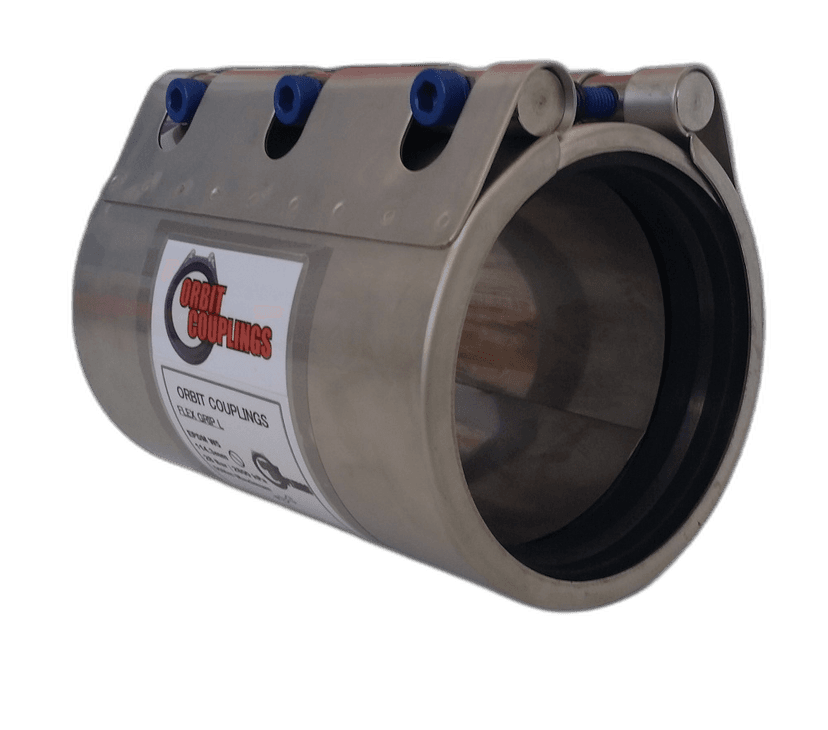

The Flex Grip L model is the Long model pipe coupling, allowing for axial movements, vibration, and minor pipe misalignments. This coupling does not prevent pull out, so pipes must be anchored. Measure your pipe outside diameter before selecting the size. Ensure the working pressure is suitable.

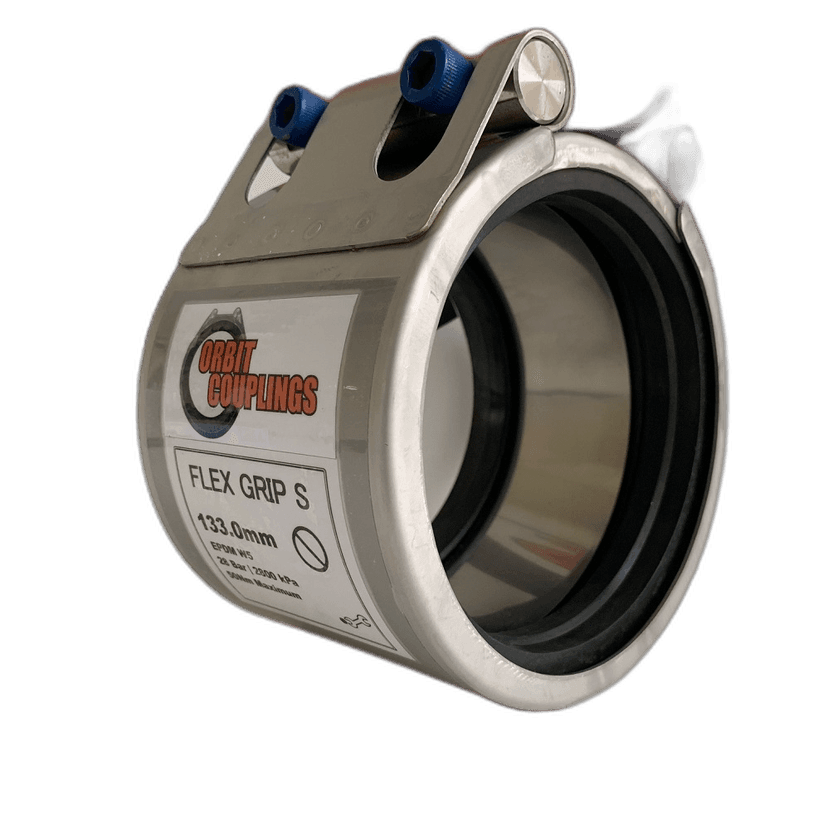

The Flex Grip S model is the Short model pipe coupling for allowing axial movements, vibration and minor pipe misalignments. This coupling does not prevent pull out so pipes must be anchored somehow.

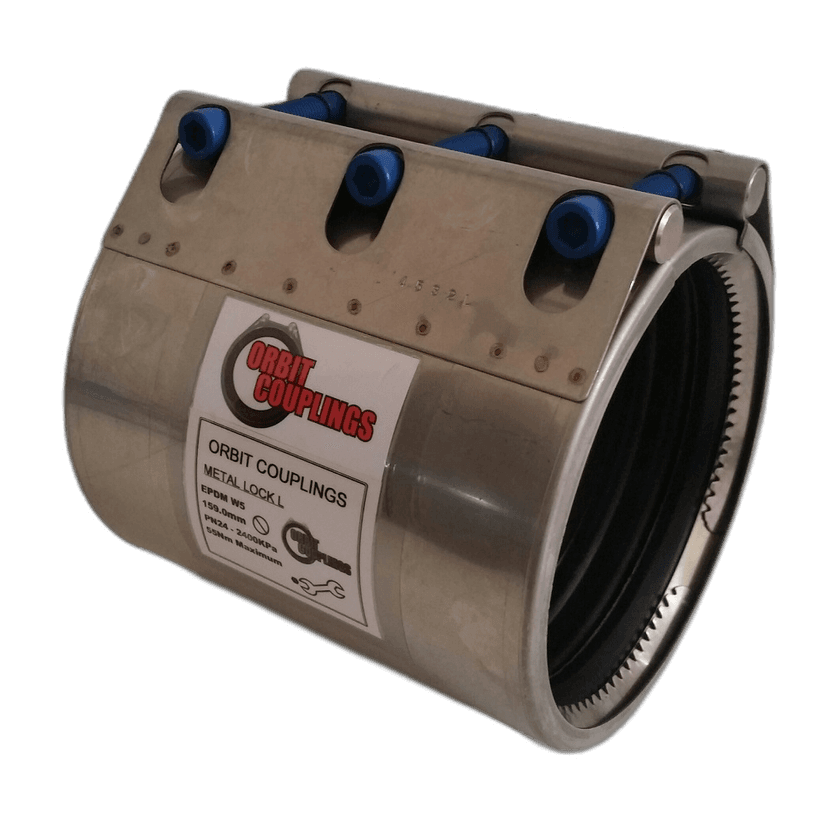

The Metal Lock L model is the Long model pipe coupling providing axial restraint and pull out resistance. High-strength stainless steel construction ensures reliable performance in demanding applications.

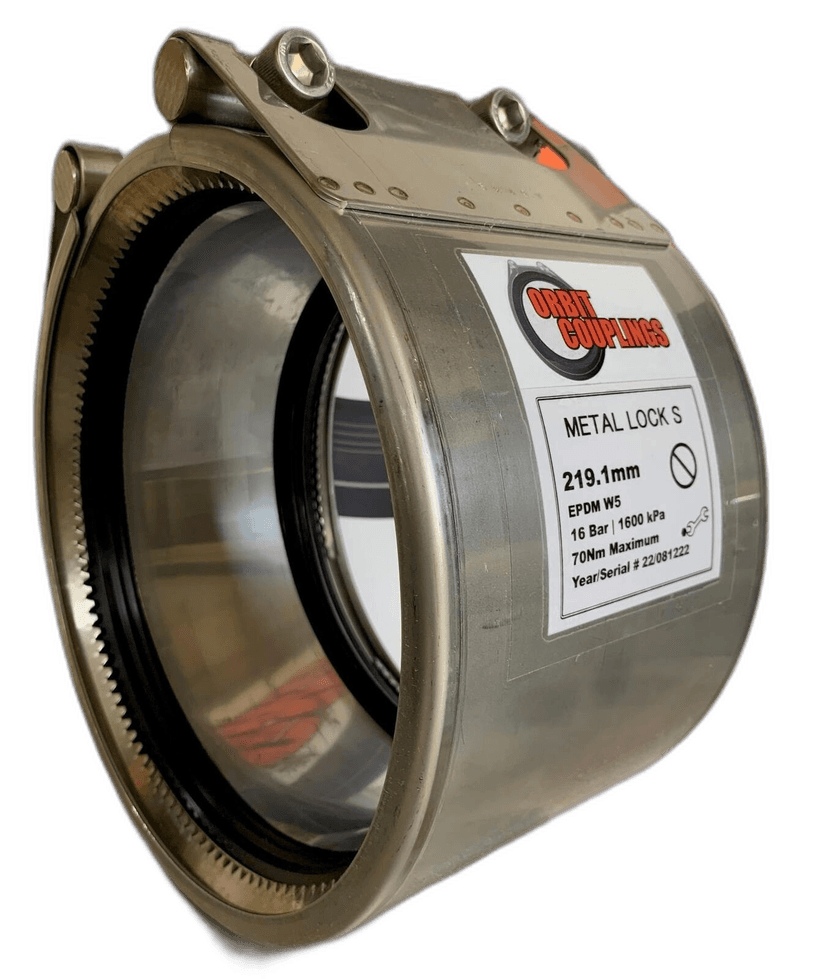

The Orbit Metal Lock S pipe coupling model is the short width version and provides pipe connections with pull out resistance and axial restraint. Ideal for compact installations requiring secure joint integrity.

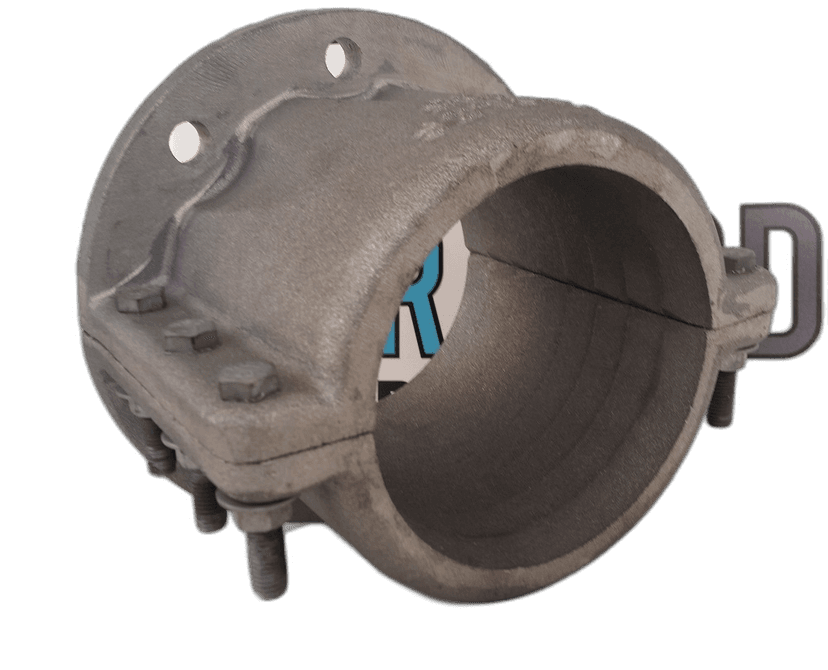

Muff Couplings Aluminium Flanged Table D or E. Please specify when ordering. ANSI 150LB also available. Muff couplings are great for connecting muff hoses together or installing valves. Please check your Muff Hose outside diameter to select the size. 50mm (2") Hose OD 69-71mm, 75mm (3") Hose OD 102-104mm, 100mm (4") Hose OD 125-129mm, 150mm (6") Hose OD 180-184mm, 200mm (8") Hose OD 234-238mm, 250mm (10") Hose OD 284-290mm, 300mm (12") Hose OD 343-349mm.

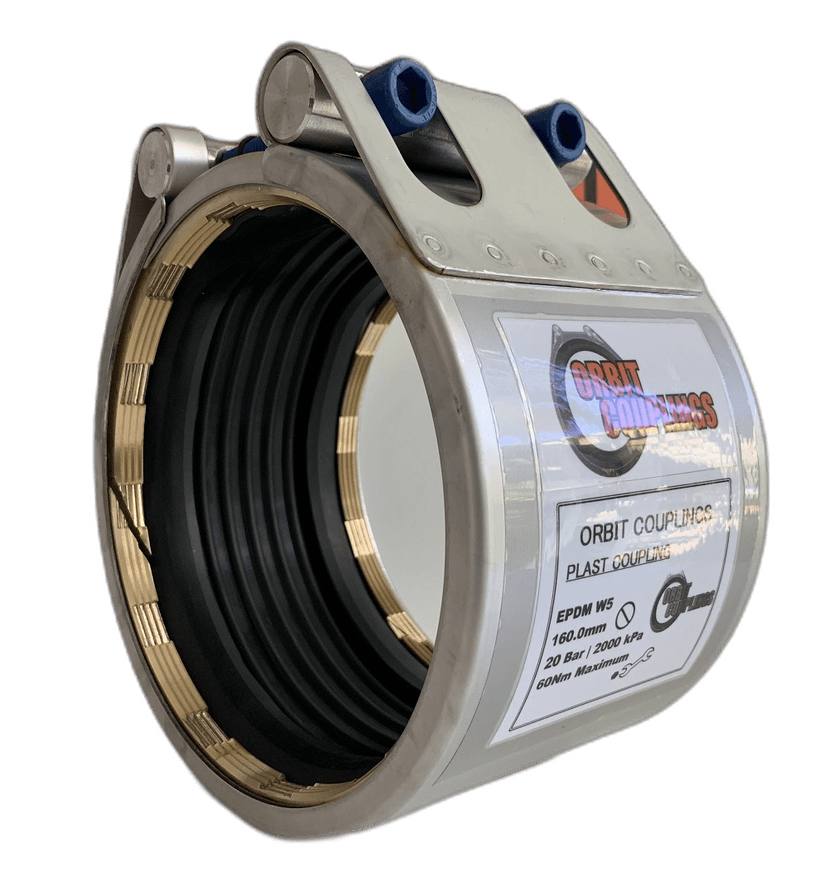

The Plast Coupling is the easiest pipe coupling model specifically used for connecting plastic pipes such as HDPE pipe. The coupling is designed to provide axial restraint and pull out resistance, using progressive anchor rings. Tightening the two bolts will lock the two pipes together using this mechanical pipe coupling. This mechanical Plast pipe coupling is used to connect two HDPE pipes together, in a fast and easy manner. Please ensure your pipe outside diameter matches the size of coupling. The Plast coupling is sized to suit the Outside diameter of the HDPE pipe. 63mm outside diameter, 75mm outside diameter, 90mm outside diameter, 110mm outside diameter, 125mm outside diameter, 140mm outside diameter, 160mm outside diameter, 180mm outside diameter, 200mm outside diameter, 225mm outside diameter, 250mm outside diameter. - Different rubber material options are available such as NBR, EPDM, Viton - contact us for a quote. *Other outside diameter sizes not mentioned can be manufactured on request* - 12 months warranty on manufacturing defects only.

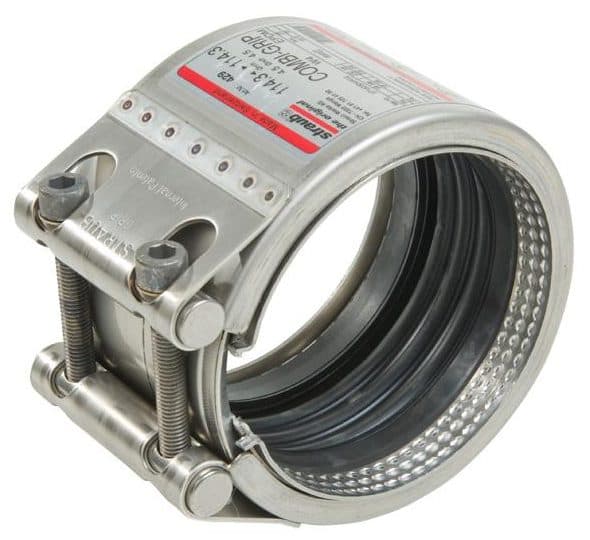

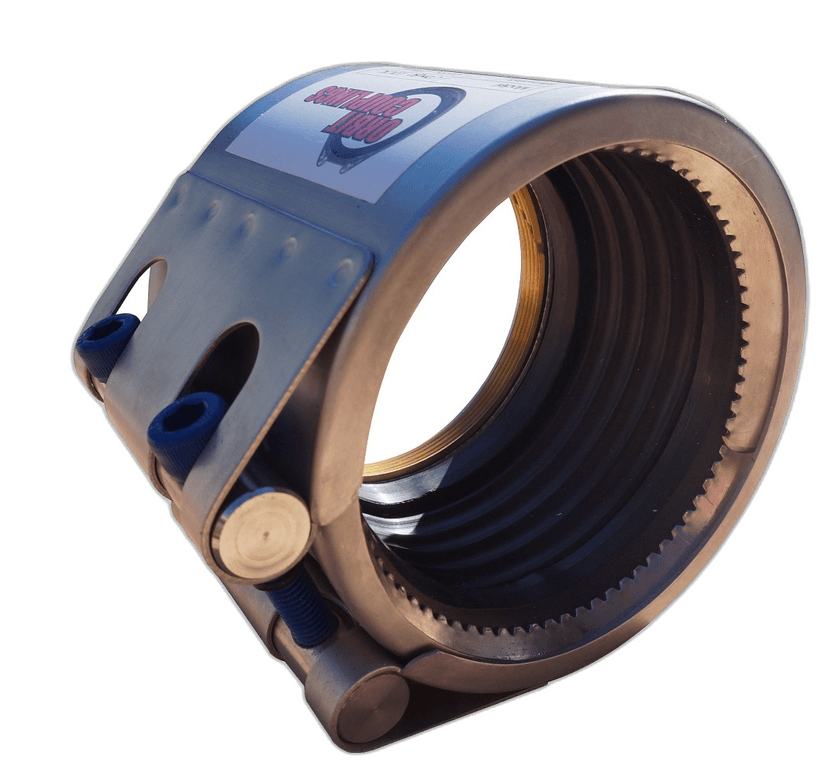

Versatile coupling for connecting metal to plastic pipes with axial restraint. Ideal for mixed material pipeline systems.

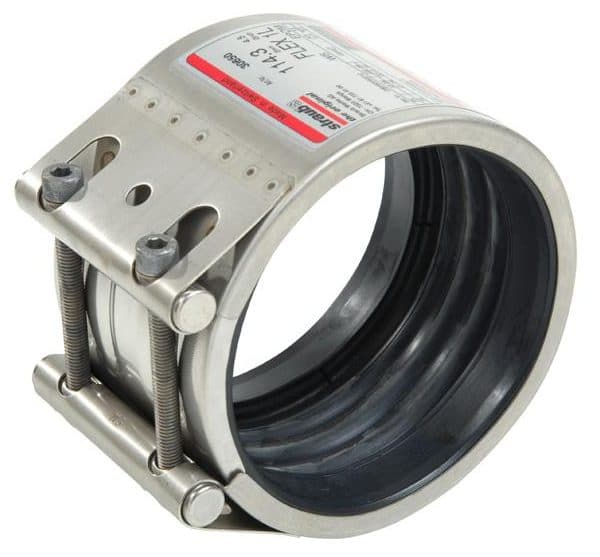

Axially flexible pipe coupling for pipes of all materials. Accommodates axial movement, vibration, and minor misalignment. Equivalent to Orbit Flex Grip L.

Large diameter flexible coupling for pipes up to 2032mm. Ideal for infrastructure and industrial applications.

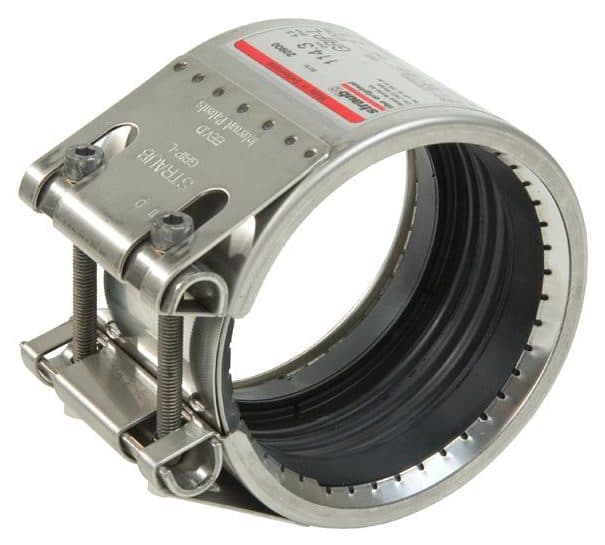

Full-face sealing version of STRAUB-GRIP with 40 bar pressure rating. Enhanced sealing for critical applications.

Axially restrained pipe coupling with 40 bar pressure rating. Wide size range from 25mm to 711.2mm for versatile applications.

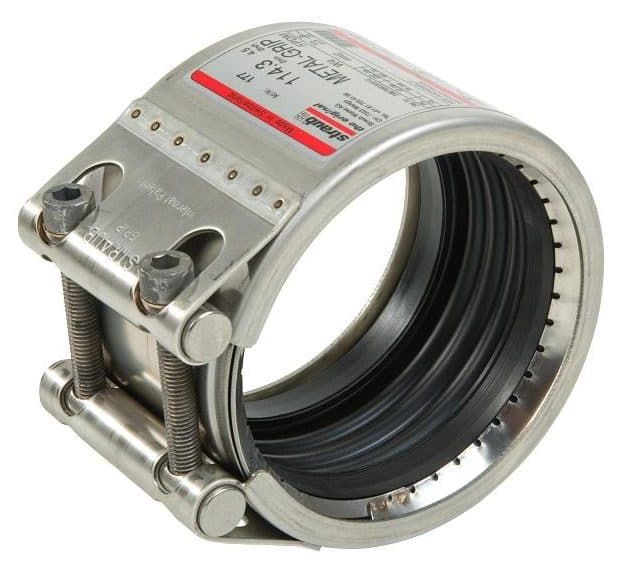

Pull-out resistant pipe coupling for all metal pipes to meet the highest standards. Swiss precision engineering with 67 bar pressure rating. The STRAUB-METAL-GRIP provides axial restraint, preventing pipe separation under pressure.

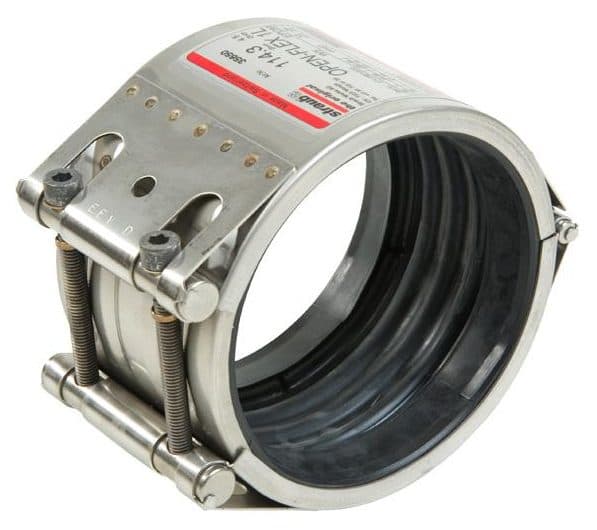

Open design flexible coupling for easy installation around existing pipes. 25 bar pressure rating.

Large diameter open design coupling for retrofit installation on pipes up to 2032mm.

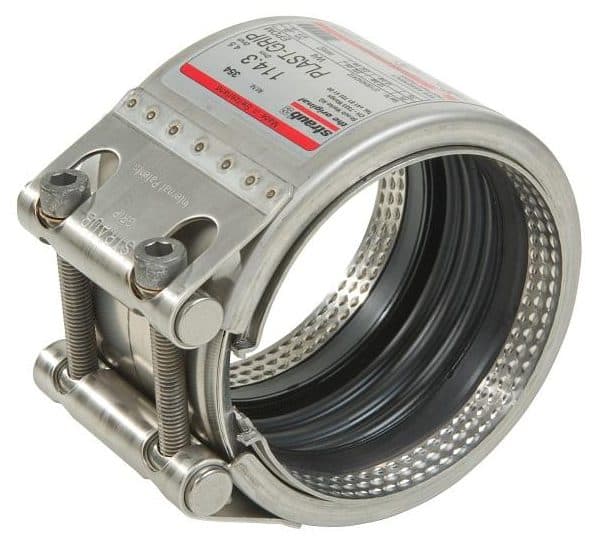

Axially restrained coupling specifically designed for plastic pipes. 16 bar pressure rating with gentle gripping action to prevent pipe damage.

Stepped coupling for connecting pipes of different diameters. Flexible design with 10 bar pressure rating.

Straub Grip L The Straub Grip L pipe coupling providing axial restraint and pull out resistance. Size range: 26.9mm to 609.6mm Pressure rating: 46 Bar to 1 Bar Low Pressure coupling compared with Straub Metal Grip with a lower price tag. Please check your pipe Outside diameter before ordering. Price shown on website is for EPDM rubber sealing sleeve material.

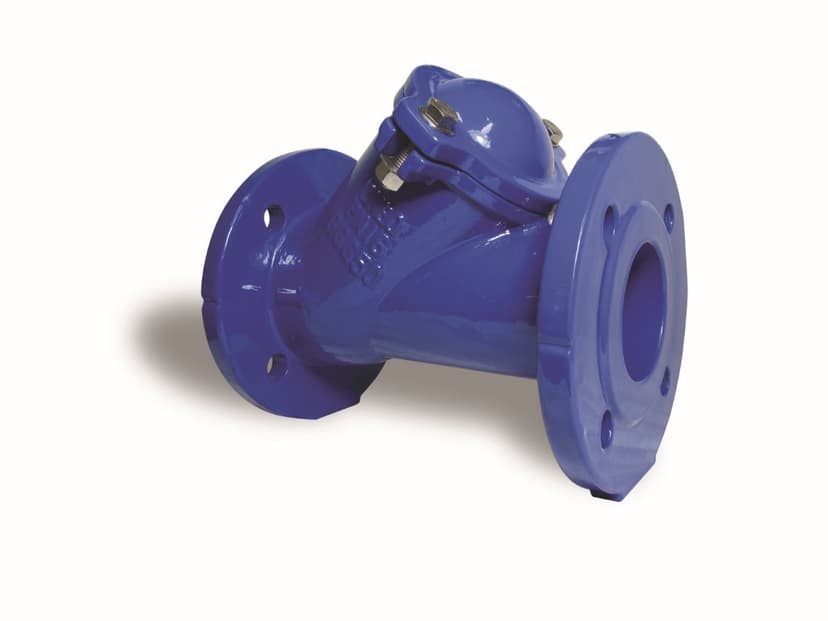

Ball Check Valve, full body flanged design with Table E flanges. Cast Iron/Ductile Iron body, with NBR coated ball. - 12 months warranty on manufacturing defects only.

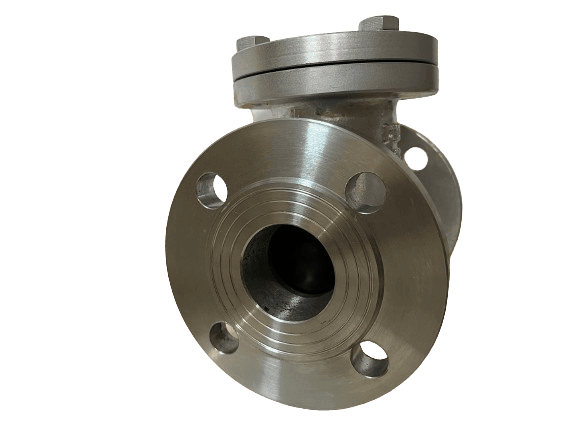

Flanged Ball Check Valve in Duplex 2205 stainless steel material with a VITON FKM coated ball. Design life 50 years on the body and 15 years on the ball. The valve must be pickled and passivated for a 50 years design life. Rated to 20 Bar. The Duplex 2205 stainless steel material provides this valve with excellent corrosion resistance and strength, exceeding that of 316 stainless steel. 316 stainless steel has a design life of 20 to 25 years.

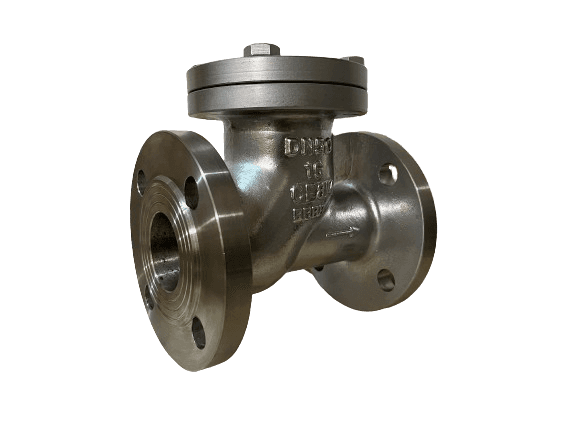

The CF8M Cast 316 Stainless Steel Flanged Ball Check Valve with Table E flanges. Also available with ANSI 150LB/ASME 150 Flanges on request. CF8M 316 stainless steel body, with EPDM, coated ball. Excellent materials for corrosive applications. - 12 months warranty on manufacturing defects only. Design life of 20 to 25 years on the CF8M body, and 7 years on the EPDM coated ball.

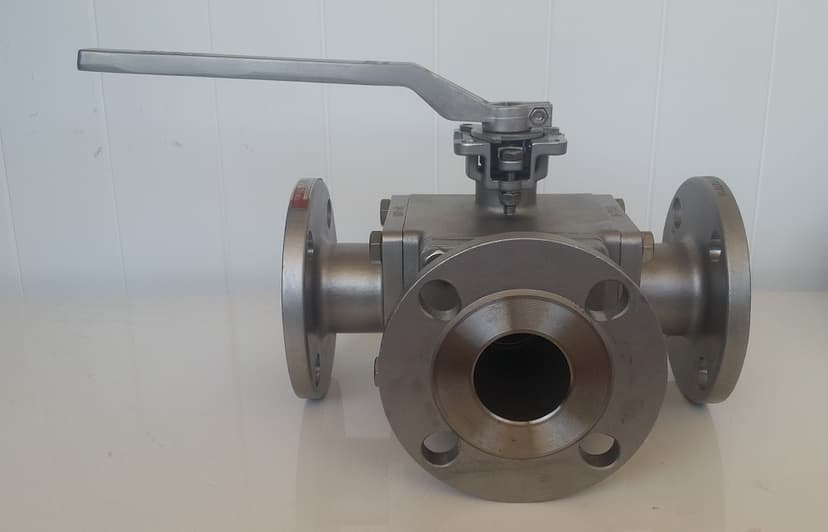

3 Way Ball Valve flanged design, lever operated. CF8M 316 stainless steel body. RPTFE seat. Full Bore design. L or T Port options. - 12 months warranty on manufacturing defects only.

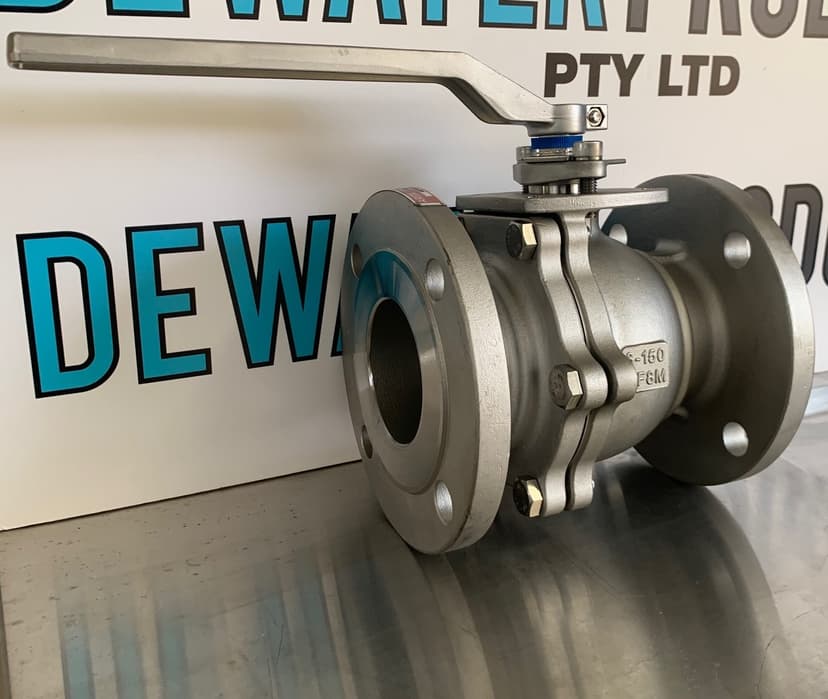

Ball Valve - Flanged ANSI 150LB. CF8M body with PTFE seat. Fitted with a gearbox as standard in larger sizes only. - 12 months warranty on manufacturing defects only.

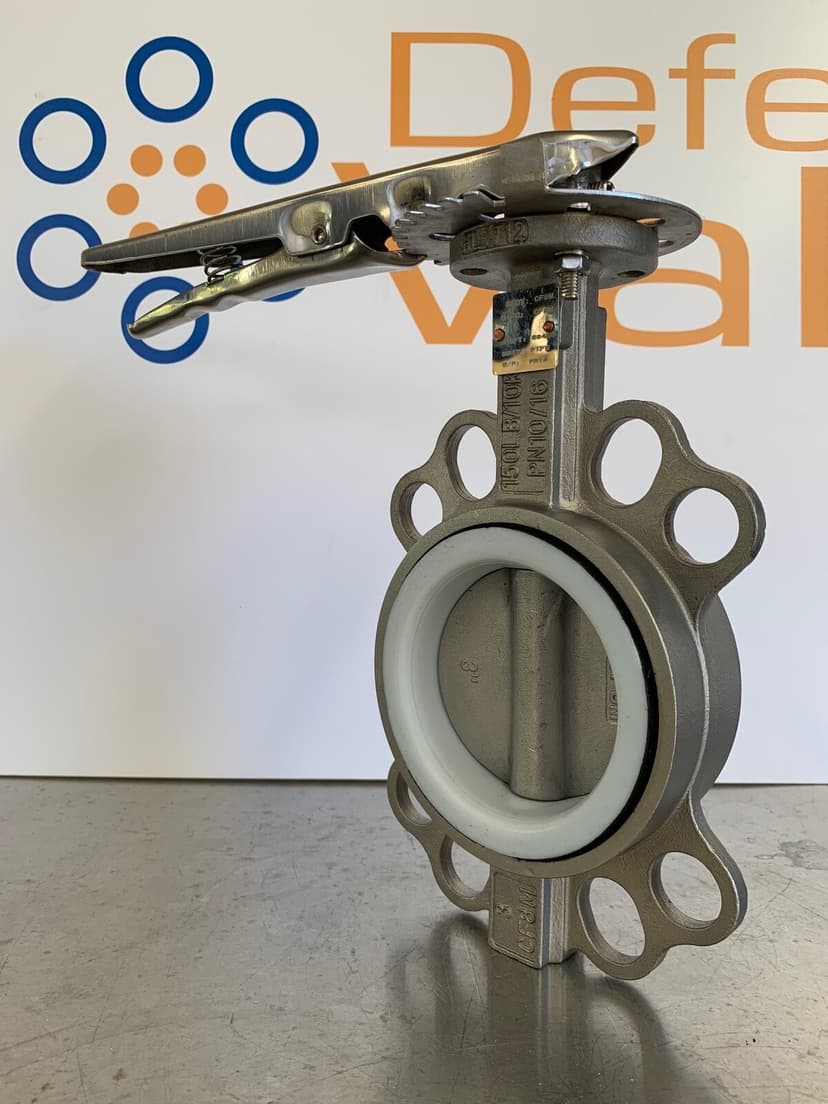

Stainless Steel bodied CF8M Butterfly Valve with EPDM/PTFE seat. Universal wafer design to suit a range of flanges and lever operated.

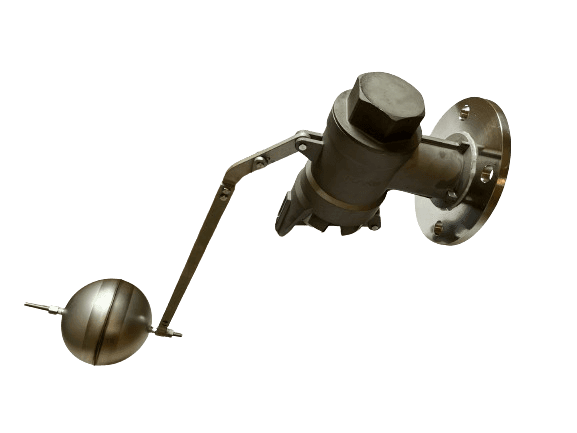

CF8M Flanged Float Valve AS4087 PN16. Full 316 stainless steel construction. Sizes available: DN65, DN80, DN100. Body material: CF8M 316SS. Lever and float material: 316 stainless steel.

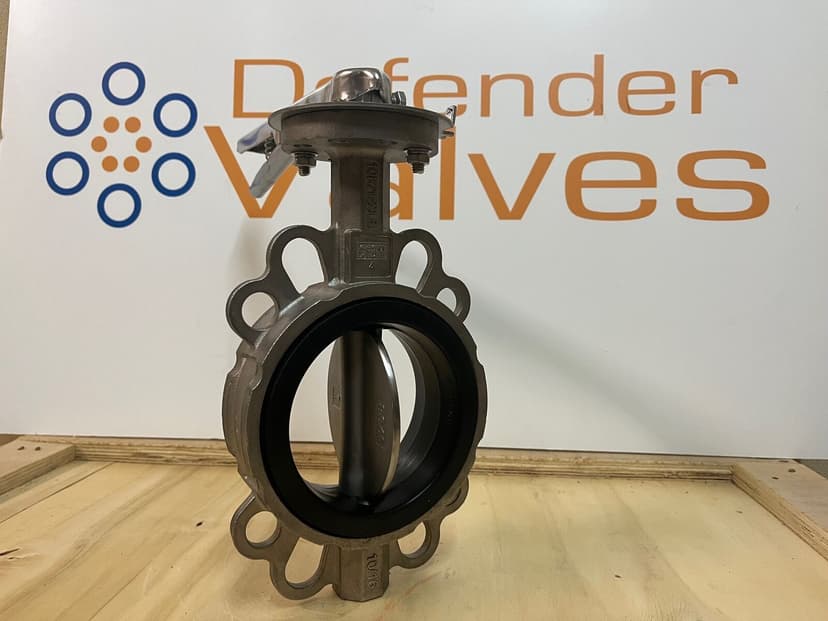

CF8M body Universal Wafer Butterfly Valve with EPDM rubber seat, lever operated. Rated PN16. Full 316 stainless steel construction for excellent corrosion resistance.

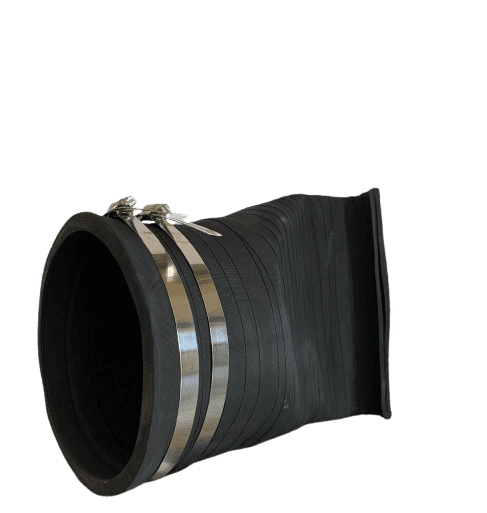

The Slip On Duckbill Check Valve model DB-1 is installed over the end of a plain ended pipe to prevent back flow. The DB-1 model is a Flat bottom model, with a flared top to enhance flow rates and reduce head loss.

Size range from DN80 to DN1600 The DB-2 Flanged Duckbill Check Valve model can be bolted to the mating flange at the end of a pipe to prevent back flow, or be bolted to a storm water concrete headwall. Available in a range of different flange specifications such as AS2129 Table E, Table D, ASME 150/ANSI 150LB, AS4087 PN16. Cracking pressure is from 25cm of water/2.48kPa - the valve does not fully open at 25cm of water, full flow is required to fully open the valve with no back flow on the outside of the valve*. ( Curved bill ) Head loss is 2kPa average. 2 design options as follows: - Flared model - Flat bottom model Choosing a Curved Bill or Straight Bill: - Curved Bill model - provides 50% more sealing area compared to the straight bill ended duckbill check valve, enabling a better tighter seal when debris are present. Does require a slightly higher cracking pressure to crack open the valve compared to the Straight Bill model. - Straight Bill model - cracks open with minimal cracking pressure but does not fully open the valve. If debris are present there is a high chance it will effect sealing performance. Supplied with a 316 stainless steel backing flange, the rubber duckbill check valve will last for many years in operation. Choose the Neoprene rubber material if the duckbill check valve will be fitted near the Ocean and in contact with salt water. - Available in a range of different flange specifications on request. - Available in a range of different rubber materials on request, such as Neoprene, NBR, EPDM, Viton etc. - 12 months warranty on manufacturing defects only.

The DB-3 Inline Duckbill Check Valve is Flanged Table E and is to be fitted inside your pipe to prevent back flow. This is an insertable rubber check valve. The end is secured in place by the flange. Suited to low back pressure applications. Size range starting from Pipe ID of 73.0mm. The pipe ID (internal diameter) must be advised at the time of requesting a quote or ordering. Choosing a Curved Bill or Straight Bill: - Curved Bill model - provides 50% more sealing area compared to the straight bill ended duckbill check valve, enabling a better tighter seal when debris are present. From 25cm head pressure to crack open the valve( curved end) this low head pressure does not fully open the valve, and for the valve to fully open, full flow is required with no back pressure. Does require a slightly higher cracking pressure to open the valve compared to the Straight Bill model. - Straight Bill model - opens with minimal cracking pressure, if debris are present there is a high chance it will effect sealing performance. Please advise the flange specification when ordering. Standard is AS2129 Table E. - Available in a range of flange specifications - contact us for a quote. - Available in a range of rubber materials such as Neoprene, NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only.

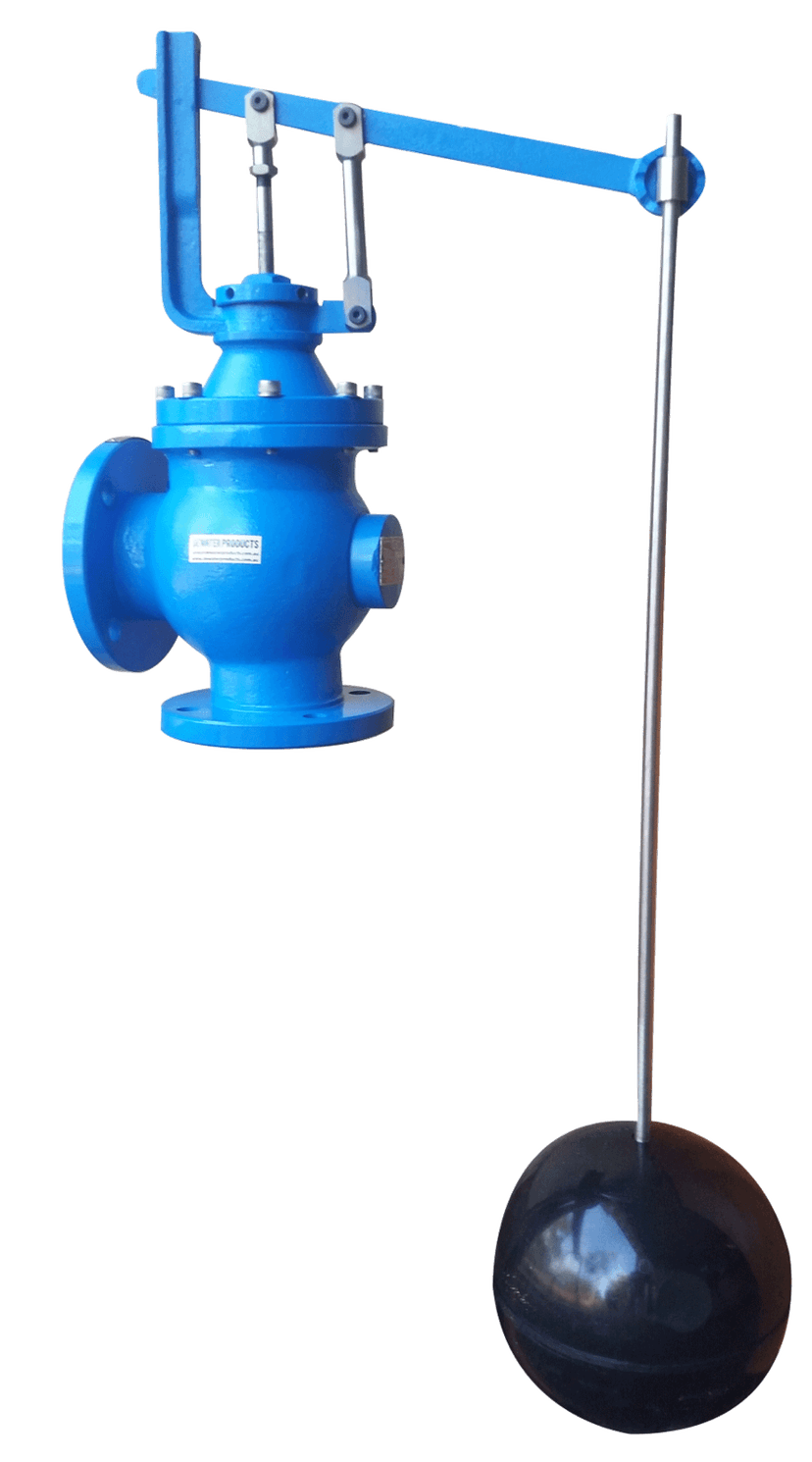

Hydraulically Lever Operated Flanged Float valve. Flange specification ANSI 150LB / ASME 150. Size range DN50(2") to DN150(6"). Application: Clean water only This Float Valve is hydraulically operated, single seated, piston actuated, internal pilot and float controlled. At the full supply level, inlet pressure is retained within the piston chamber by the pilot valve, equalising pressures across the piston, and permitting inlet pressure to close the valve. As the supply level falls, the pilot valve discharges internal pressure allowing inlet pressure within the valve to act upon the larger piston area to lift the valve to a modulating opening. Water supply authorities and industry throughout Australia accept this robust reliable design and construction which utilises proven materials.

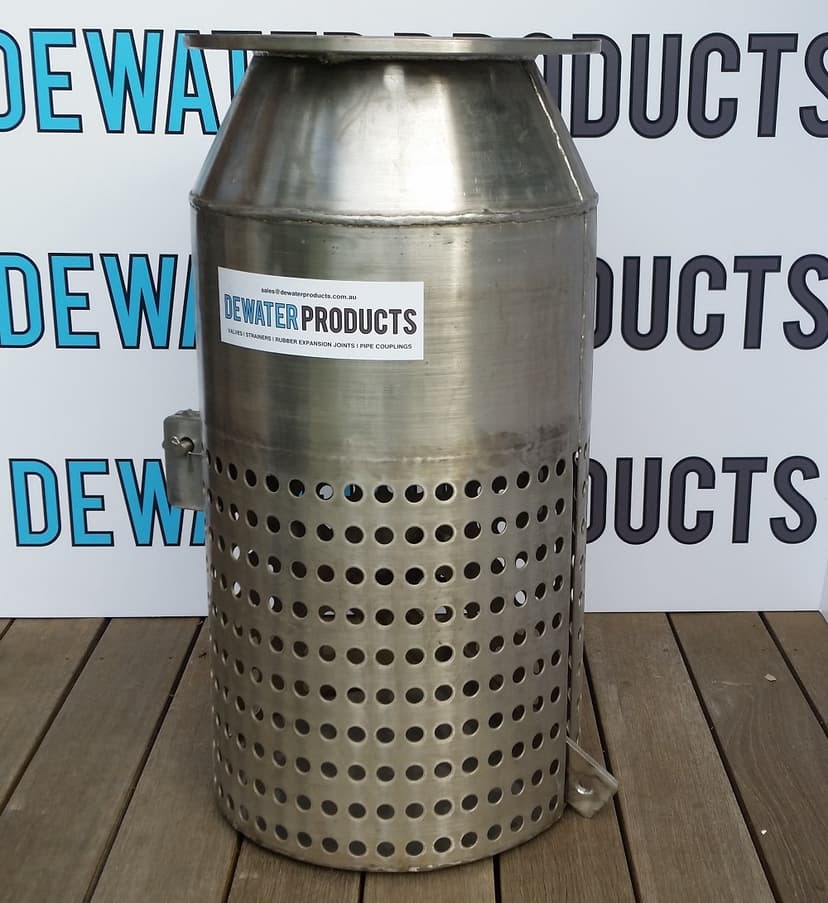

The 316 stainless steel Foot Valve is installed under water or submerged in a fluid to prevent back flow when a pump is switched off, and to prevent large debris entering the pump system during pump operation. Size range: DN80(3") to DN600(24") Installed on the suction side of a pump. Flanged Foot valves in 316 stainless steel are available in sizes DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600. AS2129 Table D flange. AS2129 Table E flange on special request. Pricing differs to Table D. - 12 months warranty on manufacturing defects only.

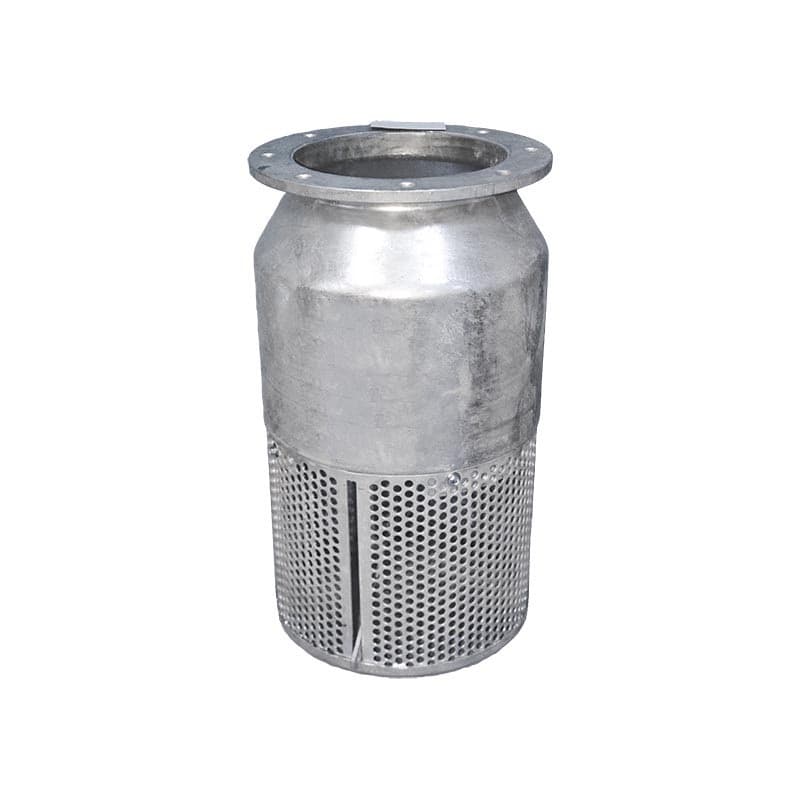

Galvanised foot valve with integrated strainer, designed for the suction side of pumps. Prevents backflow and maintains prime in pumping systems.

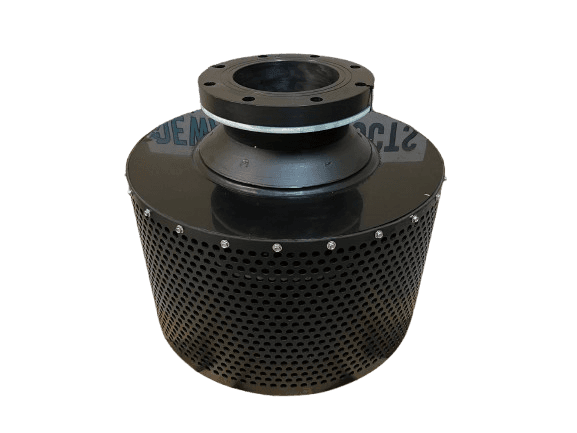

The HDPE Foot Valve is installed to stop large debris from entering the pump system and stops back flow maintaining priming for the pump. Size range: DN80(3") to DN400(16"). Over size DN150(6") The Poly Foot Valve comes with Anti Vortex plates in the screen. No water swirling occurs, maximising an unrestrictive water flow. Installed on the suction side of a pump. Keep your suction line primed with this valve. HDPE poly Flanged Foot valves are available in sizes DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400. The Poly Foot Valve can be installed vertically, or at a 45 degrees angle. The disc has a spring closure mechanism. Available in a range of flange specifications such as Table D, Table E, ANSI 150LB/ ASME 150 - contact us for a quote. 12 months warranty on manufacturing defects only.

The Gate Valve is an isolation valve to shut off flow. Flanged ANSI 150LB/ASME 150. CF8M 316SS. - 12 months warranty on manufacturing defects only.

The Gate Valve is an isolation valve to shut off flow. Flanged Table E. CF8M 316SS. - 12 months warranty on manufacturing defects only.

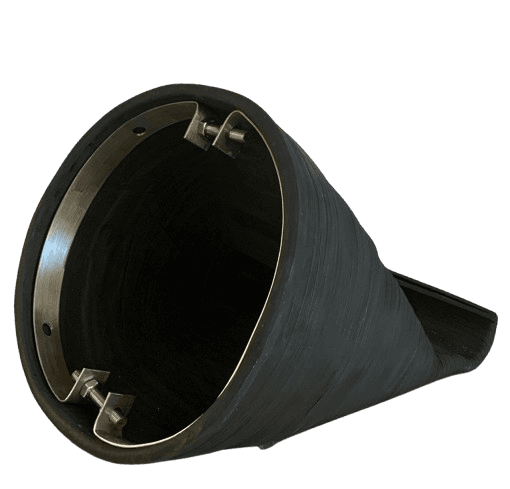

The DB-4 inline duckbill check valve is an insertable rubber non-return valve that fits inside your pipe to stop backflow, in sizes from 100mm to 600mm ID. It is secured by an internal expanding clamp, and additional bolts can be fitted through the pre-existing holes in the clamp (drilling required). It suits low back-pressure applications. Please advise the pipe internal diameter (ID) when requesting a quote or ordering. Curved Bill or Straight Bill: the curved-bill model provides around 50% more sealing area than a straight-bill duckbill check valve, giving a tighter seal when debris is present. It cracks open from about 25cm of head pressure; the valve needs full flow with zero back pressure to open fully, and requires a slightly higher cracking pressure than the straight-bill model. The straight-bill model cracks open with minimal pressure, though debris can affect its sealing performance. Available in a range of rubber materials including Neoprene, NBR, EPDM and Viton, contact us for a quote. 12 months warranty on manufacturing defects only.

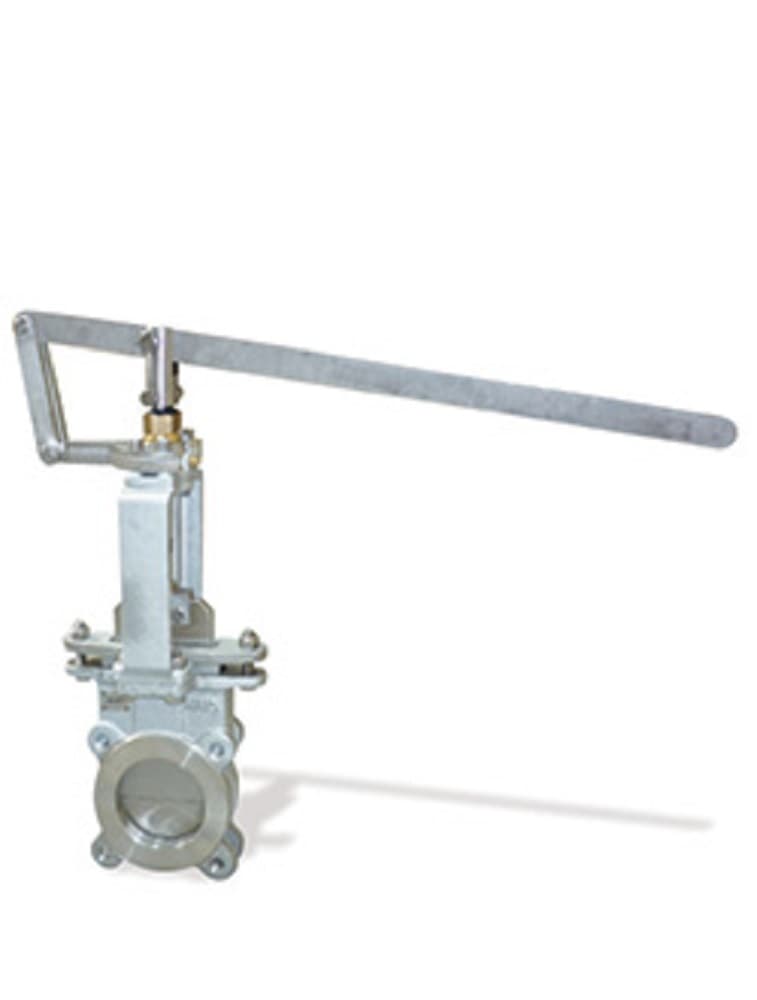

Lever Operated Knife Gate Valve in 316 stainless steel and metal seated. Lugged Table E AS2129. 0 - 10 Bar rated. Ideally suited for a fast shut off effect when isolating. Metal seated will not fully seal fluid such as water, and a minor leak is to be expected. If you require a 100% shut off with zero leakage then choose resilient seated option. - 12 months warranty on manufacturing defects only.

Lever Operated Knife Gate Valve in 316 stainless steel with resilient seat EPDM. Lugged AS2129 Table E. 0 - 10 Bar. Resilient seated should be chosen if zero leakage is required. - Available in a range of flange specifications - contact us for a quote. - Available in a range of rubber seating materials - contact us for a quote. - 12 months warranty on manufacturing defects only.

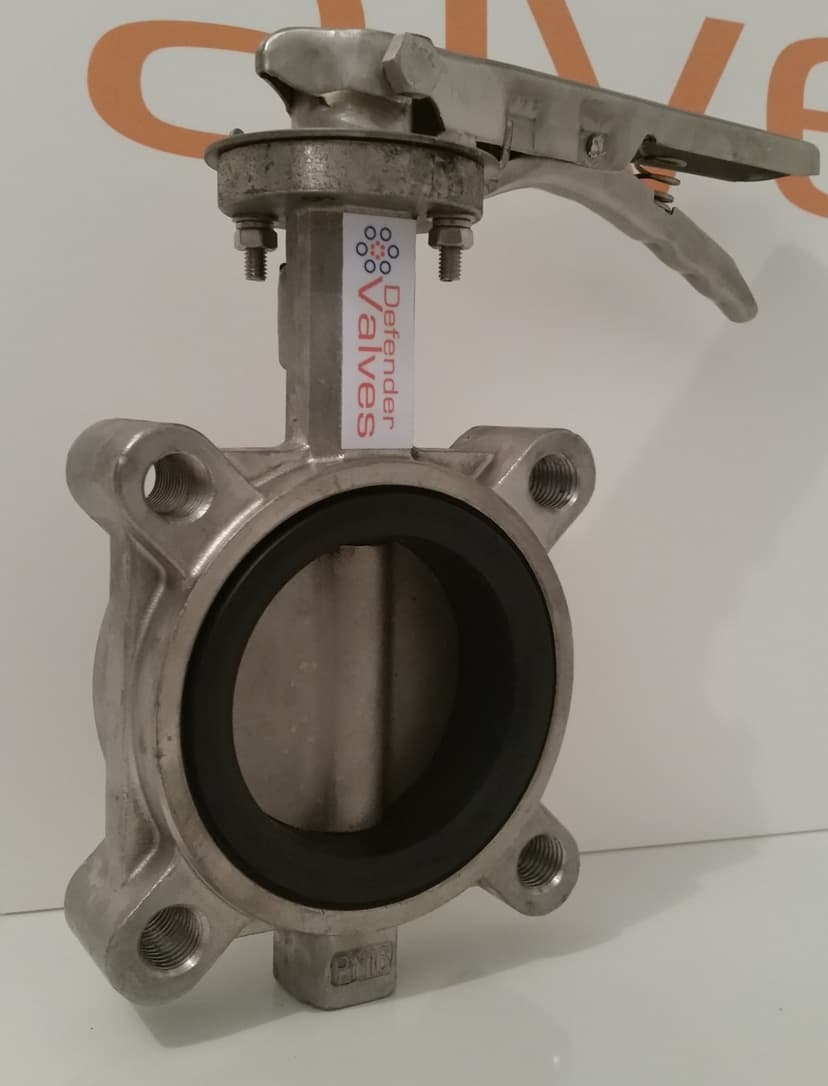

Stainless steel bodied CF8M Butterfly Valve, lugged Table E, with an EPDM seat. Rated to PN16 up to size 300mm. Lever operated. The lugged design suits end-of-pipeline installations, typically at tank or hopper inlets.

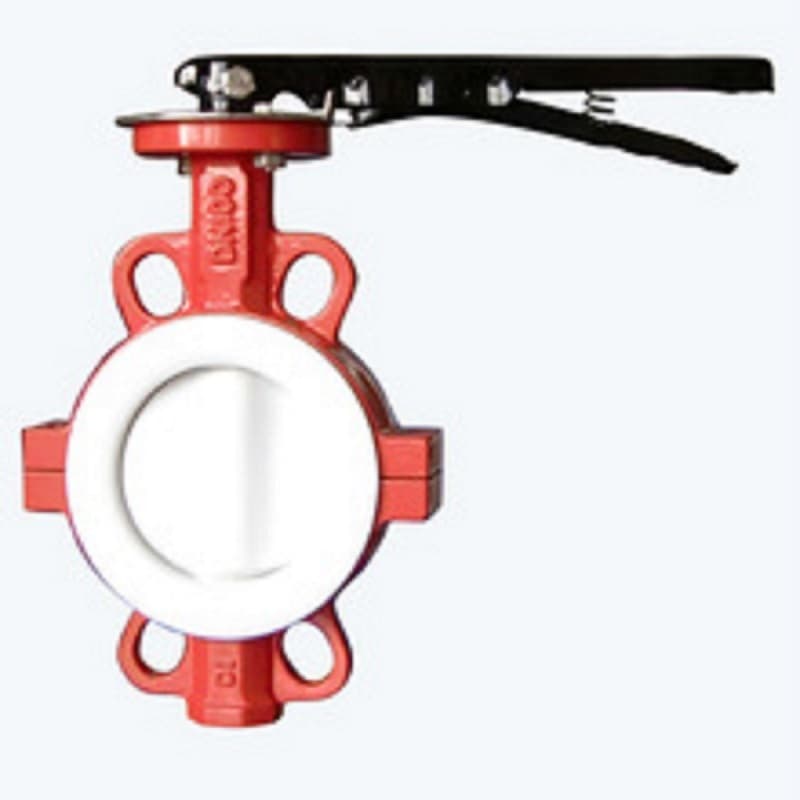

PTFE Lined Butterfly Valve with disc and seat fully encapsulated with PTFE. Universal wafer pattern to suit ANSI 150LB/Table D/E flanges. Lever operated for smaller sizes, gearbox operated for larger sizes.

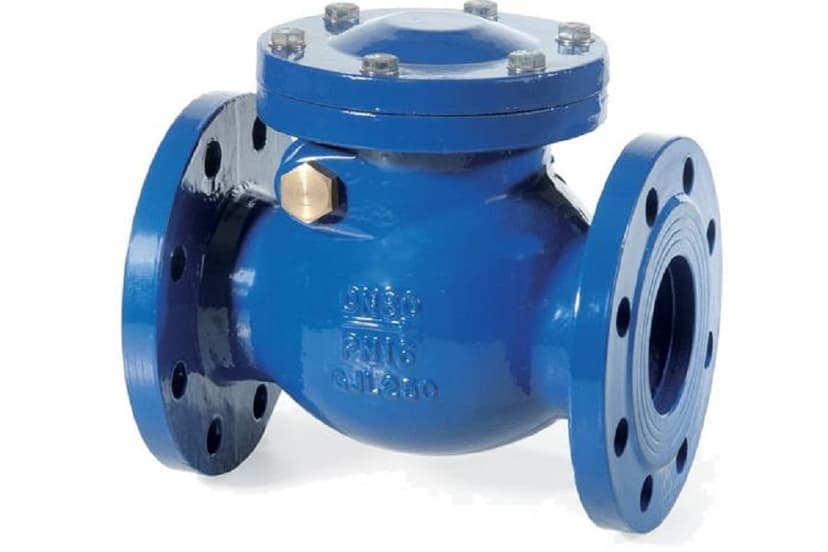

The Resilient Seated Swing Check Valve Flanged Table E. Max working pressure 1600kPA. Max Temperature 120 degrees celcius. Priced without counterweight and lever, please contact us if you require these additional parts. Ideally suited for water use and preventing backflow. The disc sits nicely on a resilient seat, which creates a better seal than metal seated, however resilient seated should only be used with water and not abrasive solids. - 12 months warranty on manufacturing defects only.

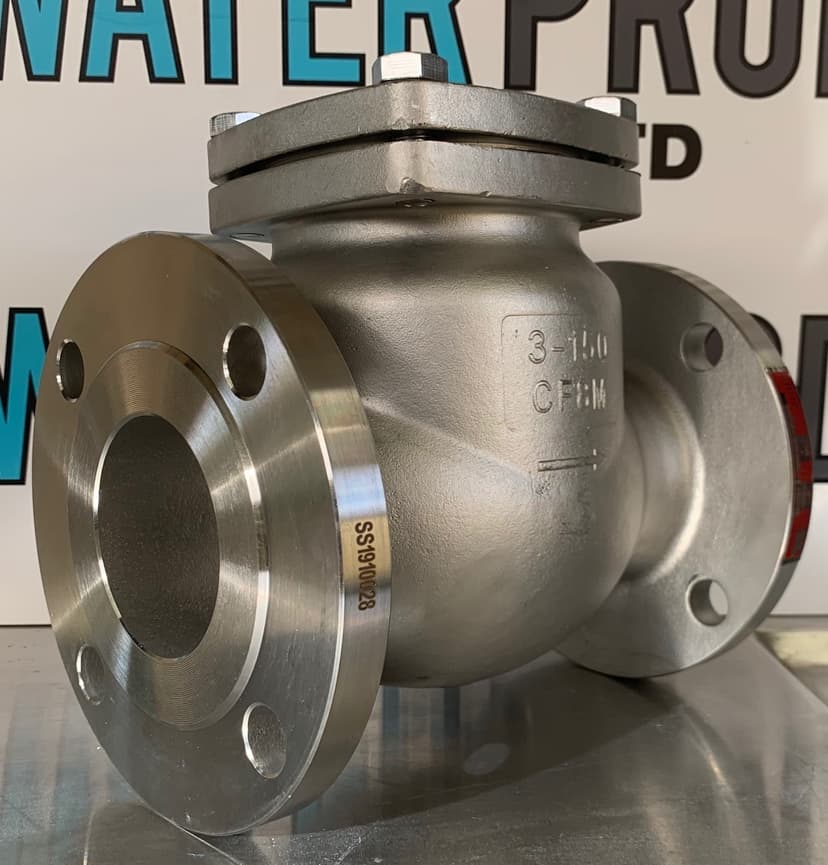

The CF8M bodied flanged Swing Check Valve is the full body model with ANSI 150LB flanges in full 316 stainless steel CF8M casting. Non return valve preventing back flow. - 12 months warranty on manufacturing defects only.

Swing Check Valve, full body, flanged design, with internal swing disc for back flow prevention. WCB Cast Steel body, with stellite seat. Flanged ANSI 150LB/ASME 150 spec. - 12 months warranty on manufacturing defects only

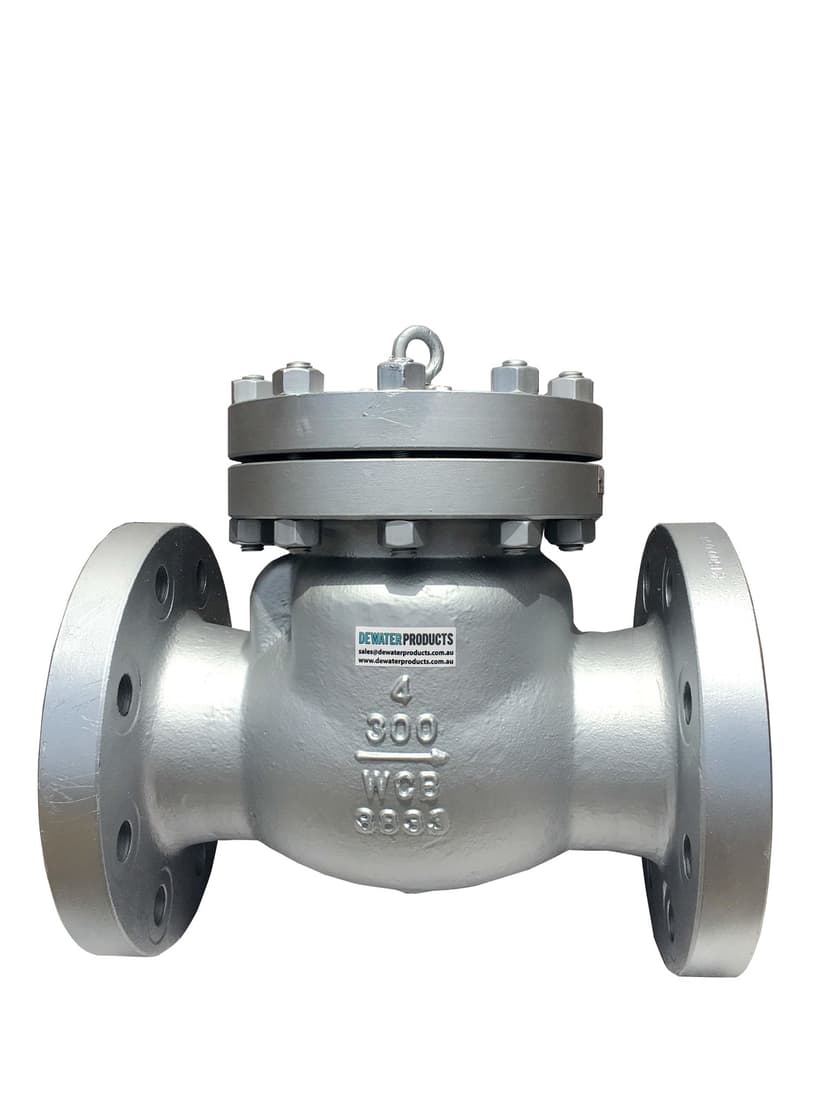

Flanged Swing Check Valve, full body, non return valve, WCB Cast steel body with stellite seat. Flanged to ANSI 300LB/ASME 300 spec. - 12 months warranty on manufacturing defects only

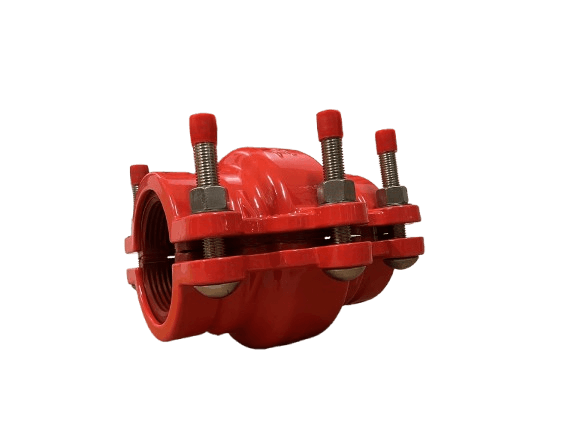

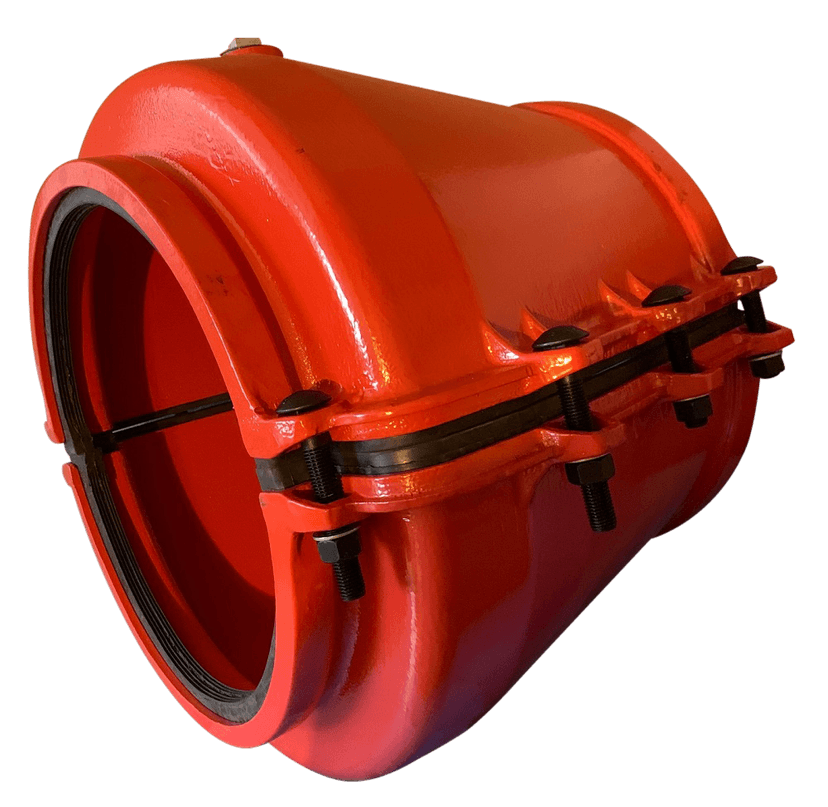

Encapsulating Pipe Repair Clamp D - Series. Available in sizes 87.0mm to 219.1mm OD. Being 88.9mm, 114.3mm, 168.3mm, 219.1mm OD pipe. The D-series encapsulating pipe repair clamp has been designed to have an increased Internal Diameter in the centre of the clamp, to accommodate seals or connections which are leaking. Test Pressures are 16 Bar for all sizes. Manufactured from cast Ductile Iron with epoxy coating, EPDM rubber and stainless steel fasteners.

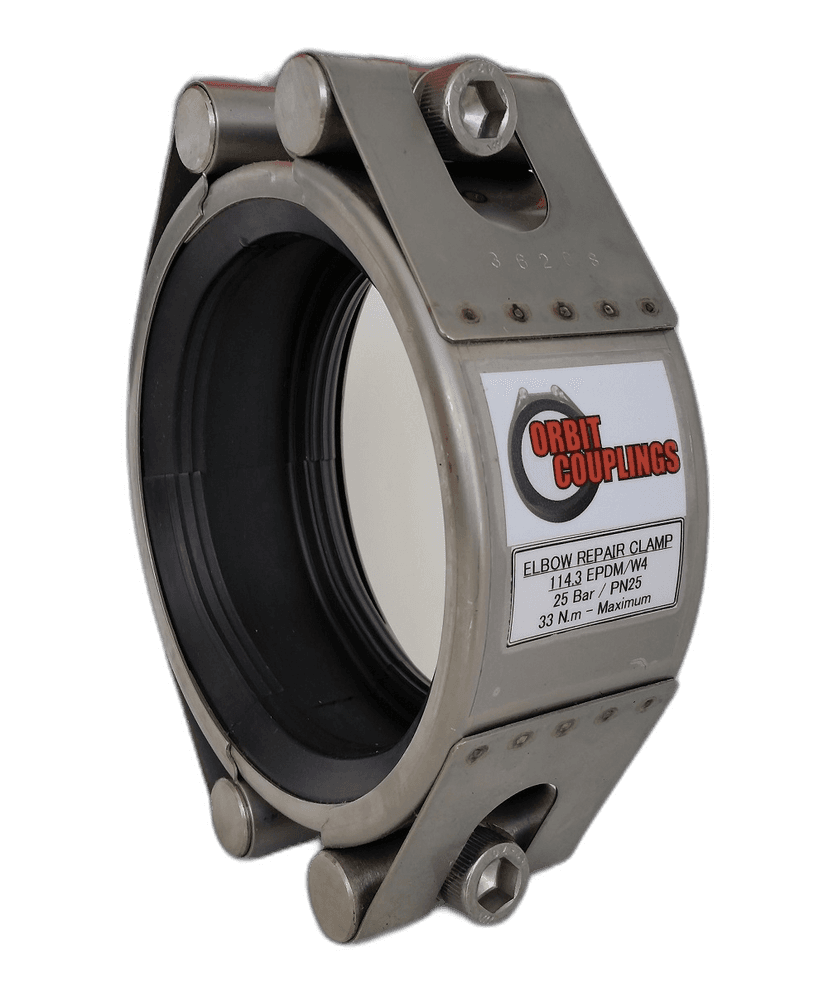

The Elbow Repair Clamp is specifically designed to stop leakage from a pipe elbow requiring a very slim clamp to allow for the pipe curvature. Measure the pipe outside diameter to select the clamp size required. Can only be used on long radius elbows. - Available with a range or rubber material options such as NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only.

Encapsulating Pipe Repair Clamp to fit over spigot socket connections also known as bell joint connections, when leaks occur. The Spigot Socket Encapsulating Pipe Repair Clamps are available in a range of sizes to suit pipe outside dimensions 98.0mm to 1140.0mm. Test Pressures are 16 Bar for all sizes. Manufactured from cast Ductile Iron with epoxy coating, EPDM rubber and stainless steel fasteners. Suit Pipe OD sizes: 98.0mm,118.0mm,150.0mm,170.0mm, 200.0mm, 222.0mm, 260.0mm, 320.0mm, 380.0mm, 490.0mm, 506.0mm, 610.0mm, 720.0mm, 810.0mm, 830.0mm, 920.0mm, 940.0mm, 1050.0mm, 1140.0mm

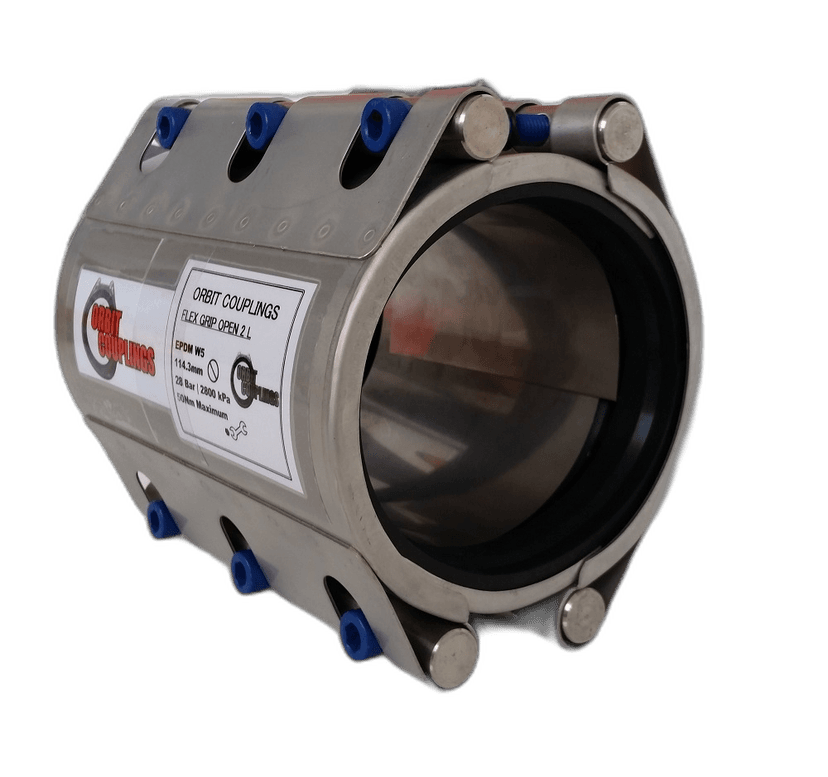

The Flex Grip 2 L model is the two peice Long model of pipe coupling/ repair clamp with a double locking mechanism and allowing for axial movement. Available up to Pipe Outside Diameter size 4000.0mm Please check your pipe Outside diameter before ordering. - Higher Pressure ratings are available - contact us for a quote - Different rubber material options are available such as NBR, EPDM, Viton - contact us for a quote - 12 months warranty on manufacturing defects only

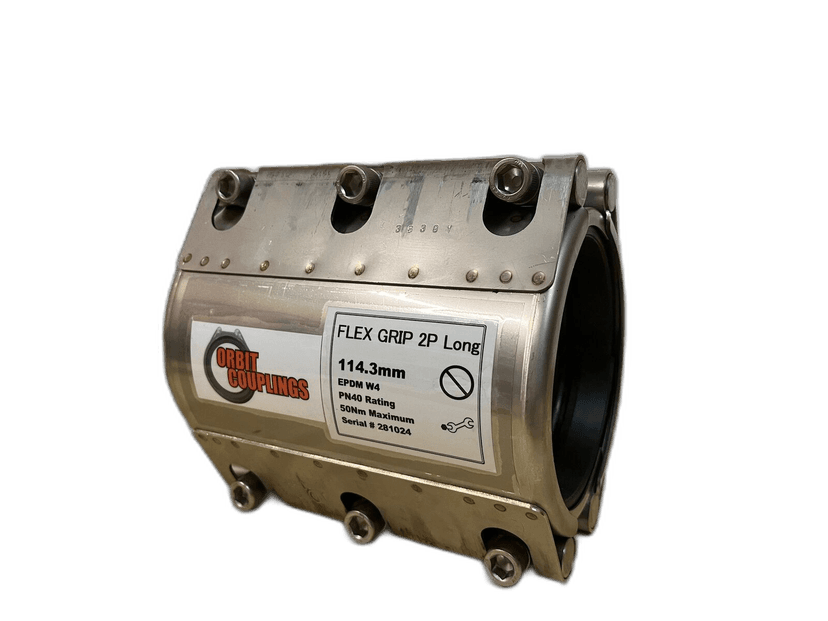

Flex Grip 2P Long model by Orbit Couplings. Pipe repair clamp and flexible pipe coupling. Opens into two parts to wrap around the pipe. High Pressure model, using a thicker casing. Size range: 42.0mm to 1016.0mm OD. 4,000kPa rated in some smaller sizes. Refer to the datasheet.

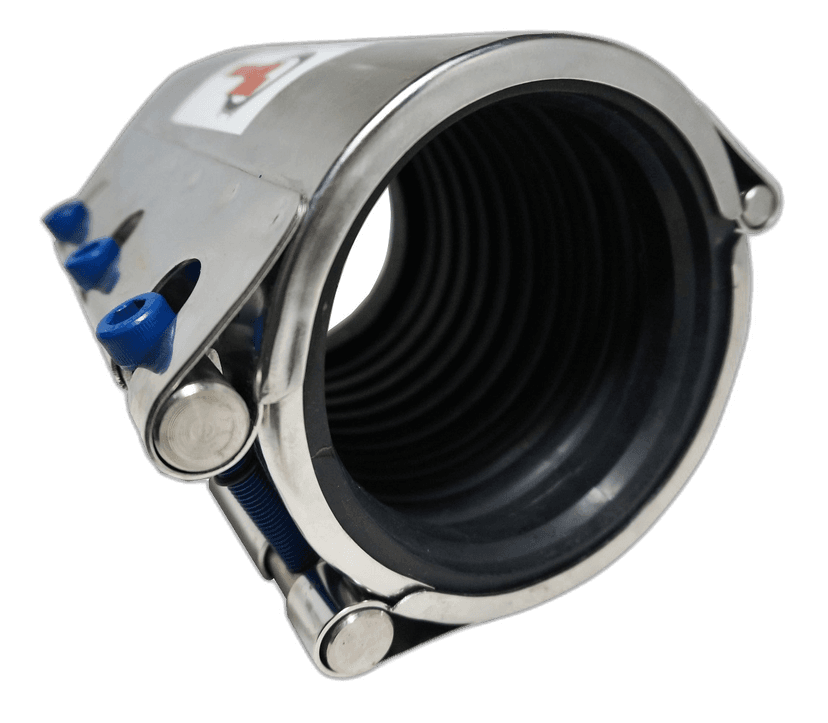

The Flex Grip Open L model is the opening Long model pipe coupling/ repair clamp for ease of installation and allowing for axial movement. Can also be used as a repair clamp/coupling. Please check your pipe Outside diameter before ordering. - Higher Pressure ratings available - contact us for a quote. - Different rubber material options are available such as NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only. Flex Grip Open L • Openable Design: Allows for quick access to piping systems, making it easier to perform maintenance or repairs without dismantling the entire system. • Accommodates Pipe Movement: Flexes to handle axial movement and angular deflection, ideal for dynamic systems. • Durable: Built with corrosion-resistant materials, ensuring longevity and reliable performance in various environments. The Orbit Couplings Flex Grip Open L is a flexible coupling that stands out for its openable design, making it easier to access piping systems for inspection, maintenance, or repairs. It is commonly used in systems with dynamic loads and where regular access is needed. Like the Flex Grip L, it accommodates axial movement and angular deflection, providing a flexible yet secure connection in high-pressure and high-temperature environments. Features: • Openable structure: Provides easy access for maintenance without full disassembly. • Flexible connection: Accommodates pipe misalignment and movement. • Corrosion-resistant materials: Long-lasting performance in harsh conditions. • Quick installation and removal: No welding or flanging required. • Vibration absorption: Protects piping systems from stress due to movement or vibrations. Note: The Orbit Couplings Flex Grip Open L is similar to the Flex Grip L but features an openable design, allowing for easy access for maintenance and inspection without removing the entire coupling.

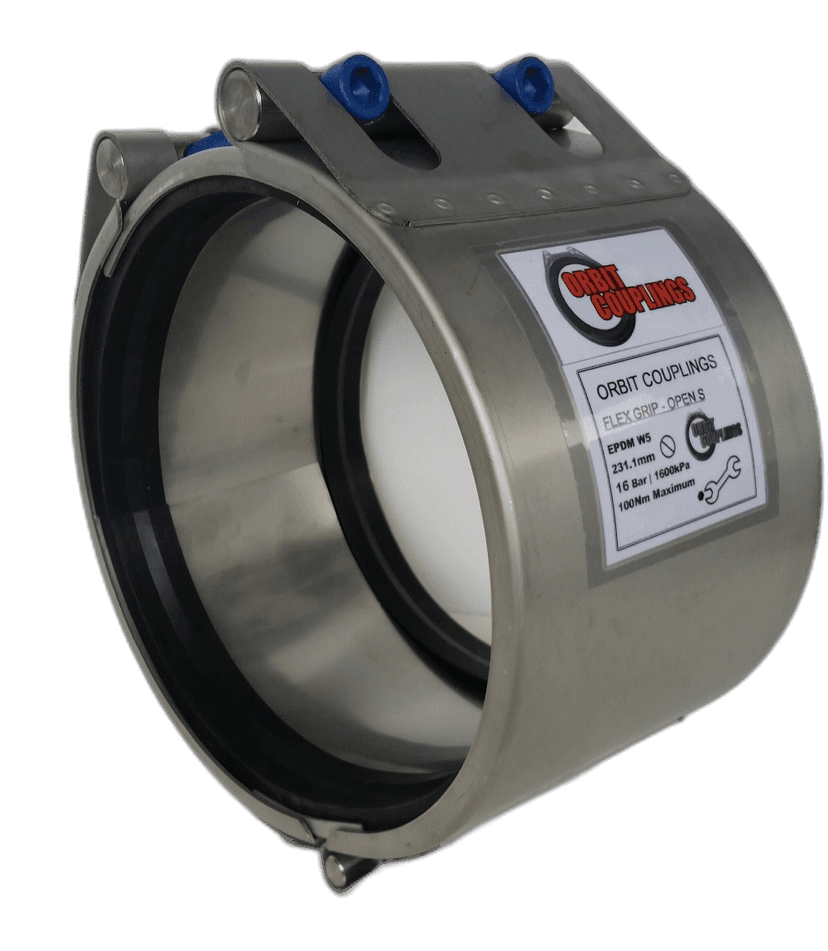

The Flex Grip Open S is the Short model opening pipe coupling/ repair clamp and can be installed easily without disassembling pipes. Allowing for axial movement. Please check your pipe Outside diameter before ordering. - Higher Pressure ratings are available - contact us for a quote. - Different rubber material options are available such as NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only.

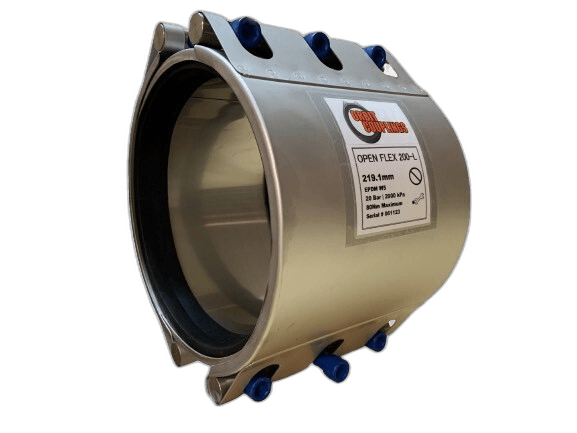

Orbit Open Flex 200-L pipe coupling and pipe repair clamp. 200mm Long. Size range: 154.0mm to 2010.0mm Features an OD range of 12mm per unique size.

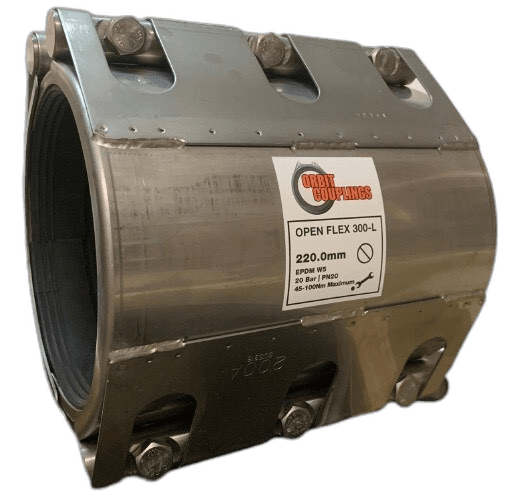

Orbit Open Flex 300-L pipe coupling and pipe repair clamp. 300mm Long. Size range: 219.1mm to 1016.0mm Also available in a high pressure model, for high pressure requirement. Model name: Open Flex 300-LP.

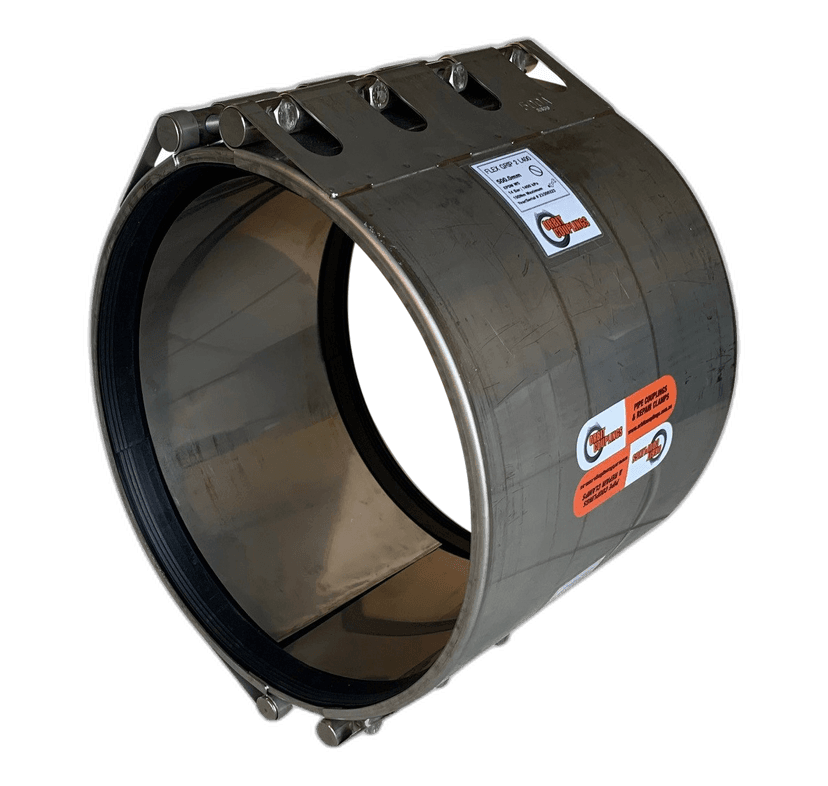

The Orbit Couplings Open Flex 400-L model is 400mm long with a two piece casing and a double locking mechanism. Size range from 200.0mm to 1524.0mm Allowing for axial movement, it can be used as a pipe coupling and as a pipe repair clamp. Being 400mm long, it will allow for a 200mm pipe gap, or 200mm diameter hole in a pipe when a stainless steel strip insert is fitted to the clamp. Using big rubber sealing lips on each side, this is a heavy duty clamp for sealing pipes with large sections missing. Casing material options are 316 stainless steel and 304 stainless steel. Available up to Pipe Outside Diameter size 1524.0mm Please check your pipe Outside diameter before ordering. - Higher Pressure model available - contact us for a quote on the Open Flex 400-LP - Different rubber material options are available such as NBR, EPDM, Viton - contact us for a quote - 12 months warranty on manufacturing defects only

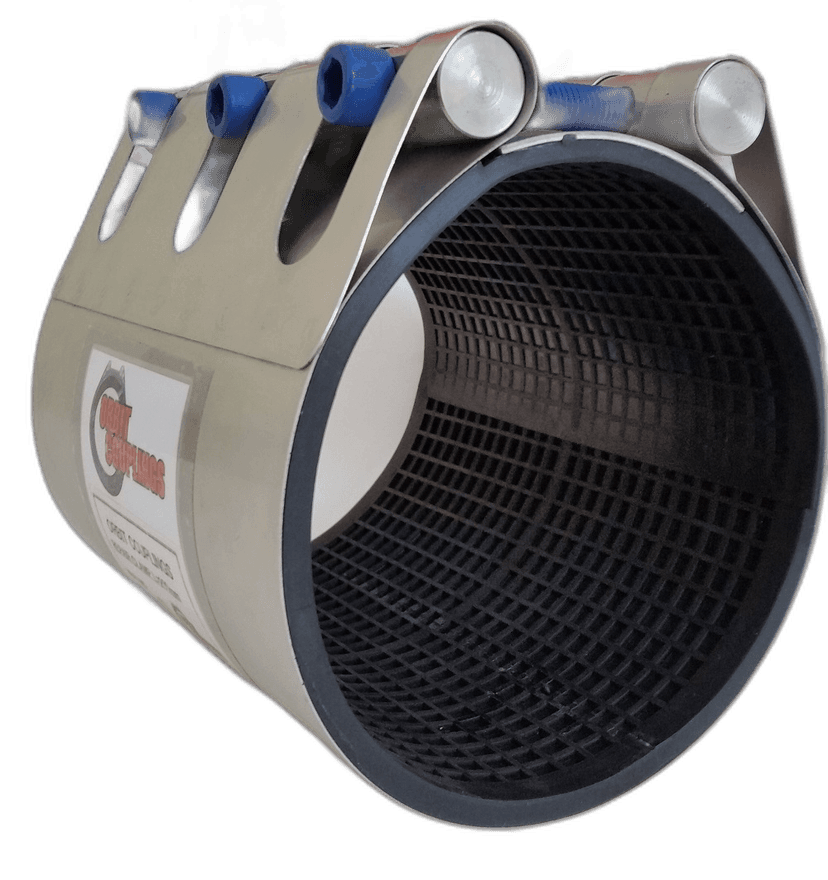

The Orbit Pipe Repair Clamp 200mm wide with reinforced mesh backing for larger leak areas. Manufactured from 316 stainless steel and WRAS-approved EPDM rubber. For pipe repair use only.

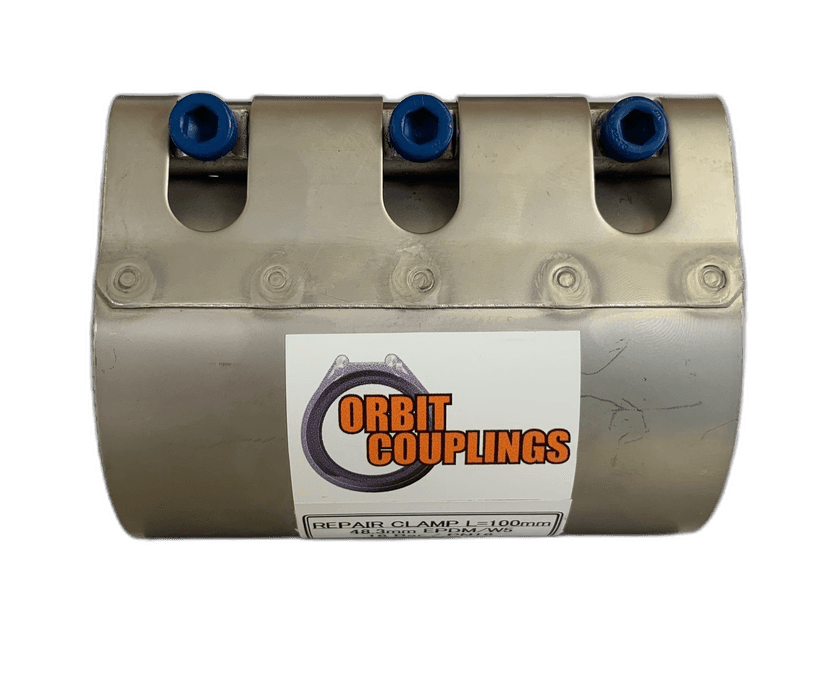

The Orbit Pipe Repair Clamp Series 1 and 100mm wide with 3 bolts. Wrap around your pipe to seal any leaking holes or cracks. For small Outside diameter pipes only. Size range 48.3mm to 59.0mm. Manufactured from 316 stainless steel and rubber. For Pipe Repair Use Only. This cannot be used as a pipe coupling. Please check your pipe Outside diameter before ordering. Price shown is for EPDM rubber or NBR rubber sealing sleeve. - Available in a range of different rubber materials such as NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only.

The Orbit Pipe Repair Clamp Series 1 and 400mm long with 6 bolts. Wrap around your pipe to seal any leaking holes or cracks in your piping system. Manufactured from 316 stainless steel and rubber. For Pipe Repair Use Only. This cannot be used as a pipe coupling. Please check your pipe Outside diameter before ordering. Price shown is for EPDM rubber or NBR rubber sleeve. - Different rubber material options are available such as NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only.

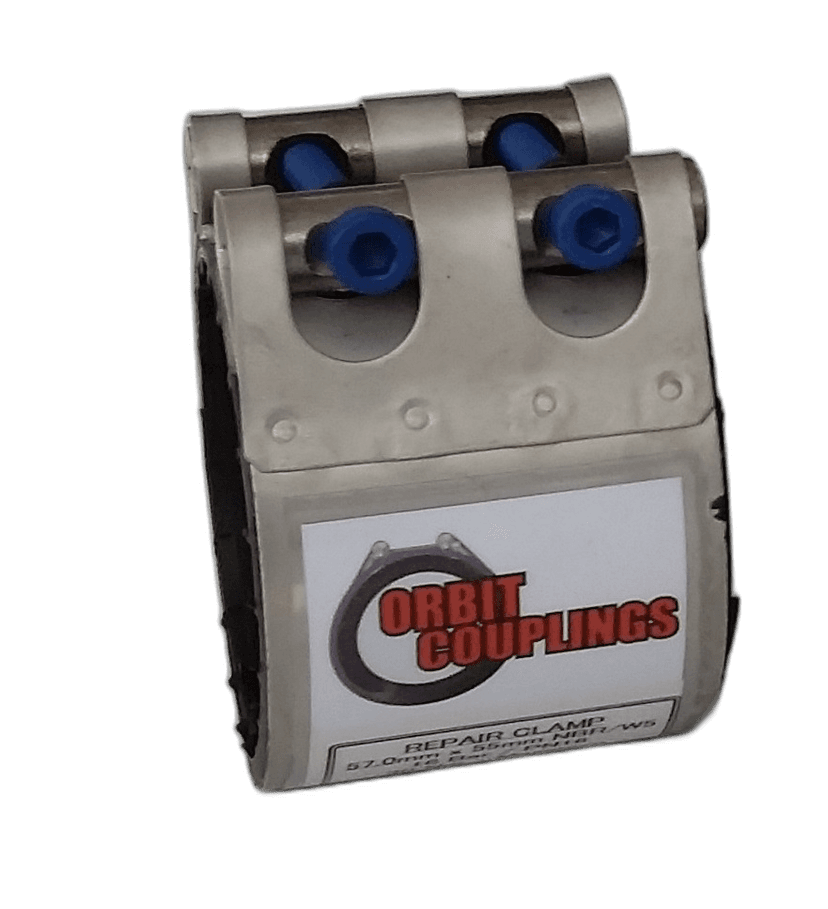

The Orbit Pipe Repair Clamp Series 1 and 55mm long with 2 bolts. For small Outside diameter pipes only. Wrap around your small OD pipe to seal any leaking hole or crack. Manufactured from 316 stainless steel and rubber. For Pipe Repair Use Only. This cannot be used as a pipe coupling.

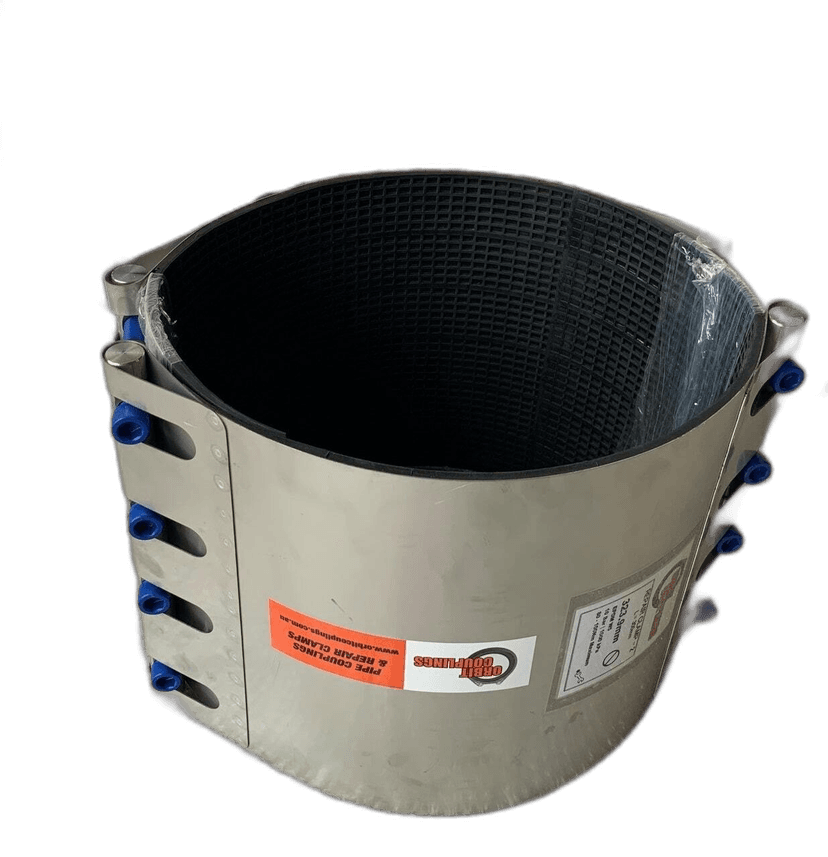

The Orbit Pipe Repair Clamp 300mm wide with reinforced mesh backing for extensive leak areas. Heavy-duty 316 stainless steel construction with WRAS-approved EPDM rubber for the most demanding repair situations.

One-piece pipe repair clamp for quick emergency repairs. Wraps around pipe to seal leaks and cracks.

Two-piece pipe repair clamp for larger diameter pipes. Easy installation with two-part design.

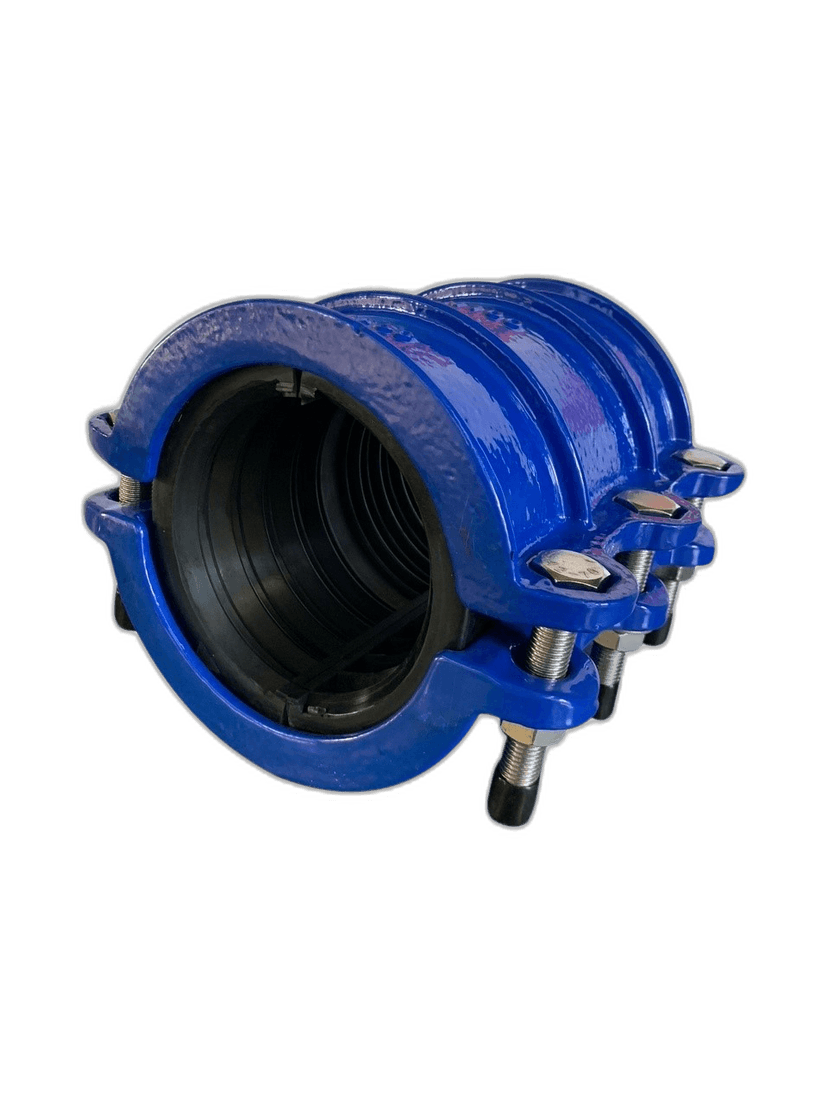

The Universal Dual Clamp is a Ductile Iron pipe repair clamp. Size range: 88.9mm OD to 323.9mm OD. PN16 Rated. Featuring a Ductile Iron body in 2 parts, FBE coated, and with an EPDM rubber seal, Stainless steel fasteners. This pipe repair clamp is designed to provide extra strength to a weak section of the pipe, using the seal design and casing design, to seal and strengthen the section of pipe.

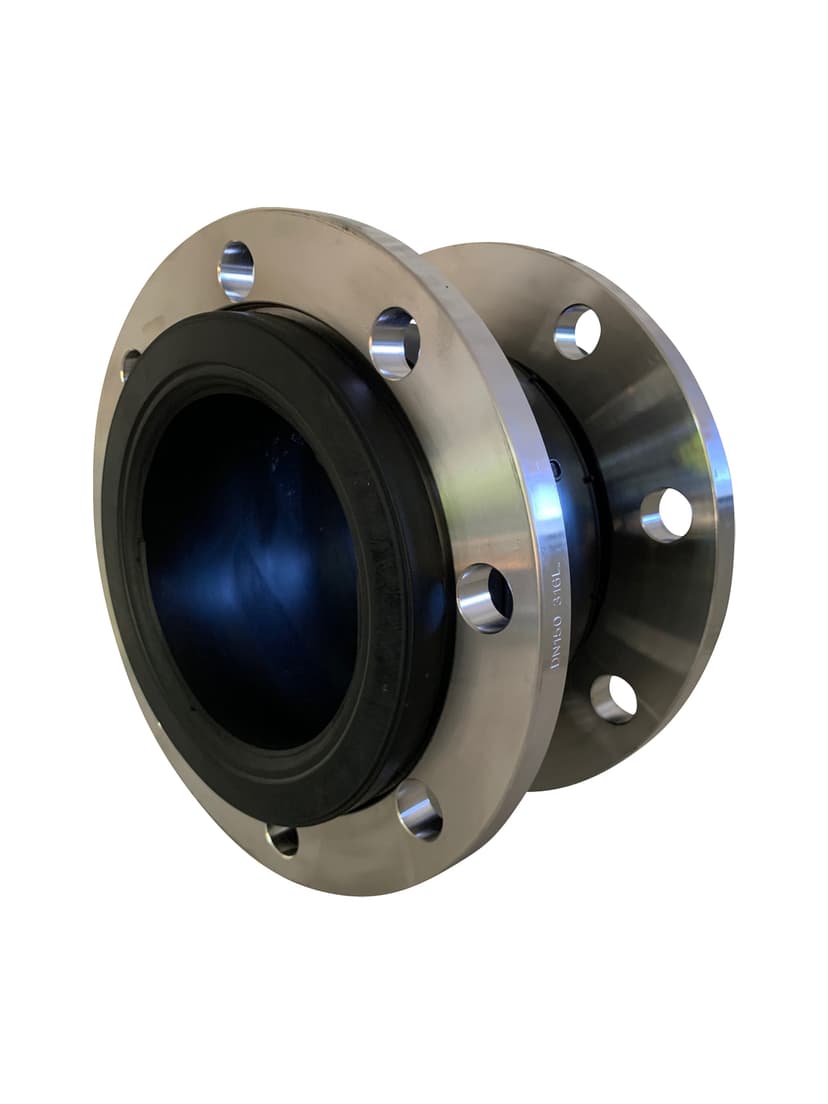

The FSF Single Sphere Rubber Expansion Joint fitted with 316 stainless steel flanges. Available in specification options AS2129 Table D, Table E, AS4087 PN16, or ASME 150/ANSI 150LB. The FSF model is a common model in Australia. Also known as a vibration eliminator or rubber bellow, the rubber construction allows your pipes to expand and contract, flex, remove vibration and noise, and provide angular movement. Movements of 4mm to 25mm are allowable on the FSF model. Tie rods/Control rods should be installed when excessive movements are likely to occur. These are sold as a seperate item on the website. Available in size range DN25 (1") to DN600 (24") Please advise if the flanges on each end are different or the same. - Available in a wide range of flange specifications - contact us for a quote. - Available in a range of rubber materials such as Neoprene, Nitrile, Buna-N, NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only. Indoor use only. For outdoor use and corrosive environments, Passivation must be requested on the quote request and highlighted on the purchase order.

The Concentric Reducing Rubber Expansion Joint has a centre line which remains the same, and has one end larger or smaller than the other. This enables the pipeline to have some flexibility and connection from one larger pipe to a smaller pipe. Available in size range DN25 (1") to DN600 (24") Please advise if one flange is different from the other, for example - large flange is ANSI 150LB and small flange is Table E. - Higher Pressure Rating available - contact for details - Different material options available, such as stainless steel flanges, NBR, EPDM or Viton rubber options are available. Contact us for a quote. - 12 months warranty on manufacturing defects only.

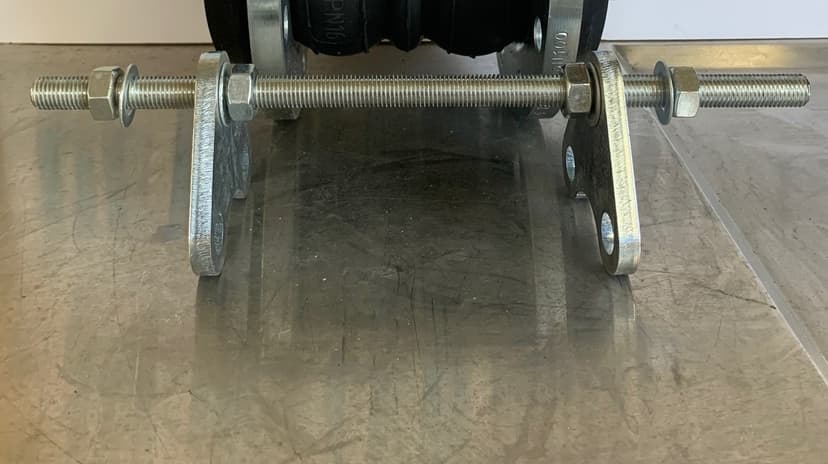

Galvanised/ Zinc Plated Steel Control rod for Rubber Expansion Joints. When fitted to rubber expansion joints and mating flanges these will stop excessive movement which prevents the rubber expansion joint from failing. The price is for 1 x control rod. If you need 2 or 4 x control rods, you need to make the quantity 2 or 4 or however many you need. The price quoted is relevant to the Nominal Bore Size of the rubber expansion joint, and manufactured from Galvansied Steel/ Zinc plated steel. Please advise what the flange specification is, as the control rods are manufactured to suit the flange specification. - 12 months warranty on manufacturing defects only. 316 stainless steel Control Rods are an option to be submitted separately. For outdoor use and corrosive environments, Passivation on 316 stainless steel must be requested on the quote request and highlighted on the purchase order.

The Double Arch Rubber Expansion Joint with an unfilled arch provides greater movement and flexibility than a Single Arch. Movements of 40mm and upwards are acheivable with two arches. Tie rods/Control rods should be installed if excessive movement is likely to occur. Available in size range DN50 (2") to DN1000 - The double arch can be unfilled or filled depending on the application and customer requirements. - More allowable movement than a single arch rubber expansion joint. - Available in a wide range of rubber materials. - Available in a wide range of flange specifications such as AS4087 PN16, AS2129 Table D, ANSI 150LB/ASME 150. - Available in a wide range of flange/backing ring materials such as 316 stainless steel, hot dipped galvanised, and zinc plated steel. - 12 months warranty on manufacturing defects only. For a 316 stainless steel backing ring option - submit a separate quote request For outdoor use and corrosive environments, Passivation must be requested on the 316 stainless steel quote request and highlighted on the purchase order.

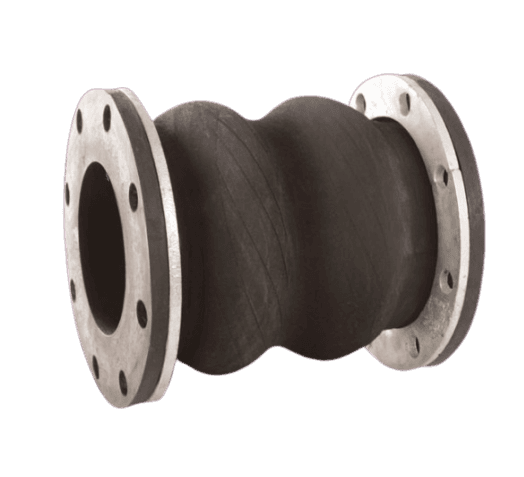

Double Arch Rubber Expansion Joint with filled arches creating a smooth bore internally. Size range: DN50(2") to DN1000 Flange options: AS2129 Table D, Table E, AS4087 PN16, ANSI 150LB/ASME 150 and more. Backing ring material options: Hot dip galvanised steel, zinc plated, 316 stainless steel. Rubber material options: EPDM, NBR, FKM VITON and more. For a 316 stainless steel backing ring option - submit a separate quote request For outdoor use and corrosive environments, Passivation must be requested on the 316 stainless steel quote request and highlighted on the purchase order.

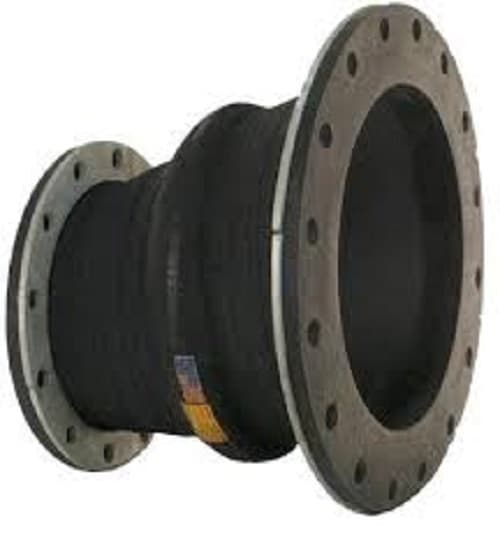

Eccentric Filled Arch Reducing Rubber Expansion Joint, a hand made model with a single filled arch. Available with backing rings to suit your specifications. Pressure rating to be advised. Available in size range DN50(2") to DN600 (24") The filled arch model will provide good movements for a slurry line or pump suction line with a vacuum rating of 750 mm H.g. SLURRY BELLOW SUCTION BELLOW Rubber material EPDM with galvanised backing rings as standard. - Available in a range of flange specifications - contact us for a quote - Available in a range of rubber materials - contact us for a quote - 12 months warranty on manufacturing defects only. For a 316 stainless steel backing ring option - submit a separate quote request For outdoor use and corrosive environments, Passivation must be requested on the 316 stainless steel quote request and highlighted on the purchase order.

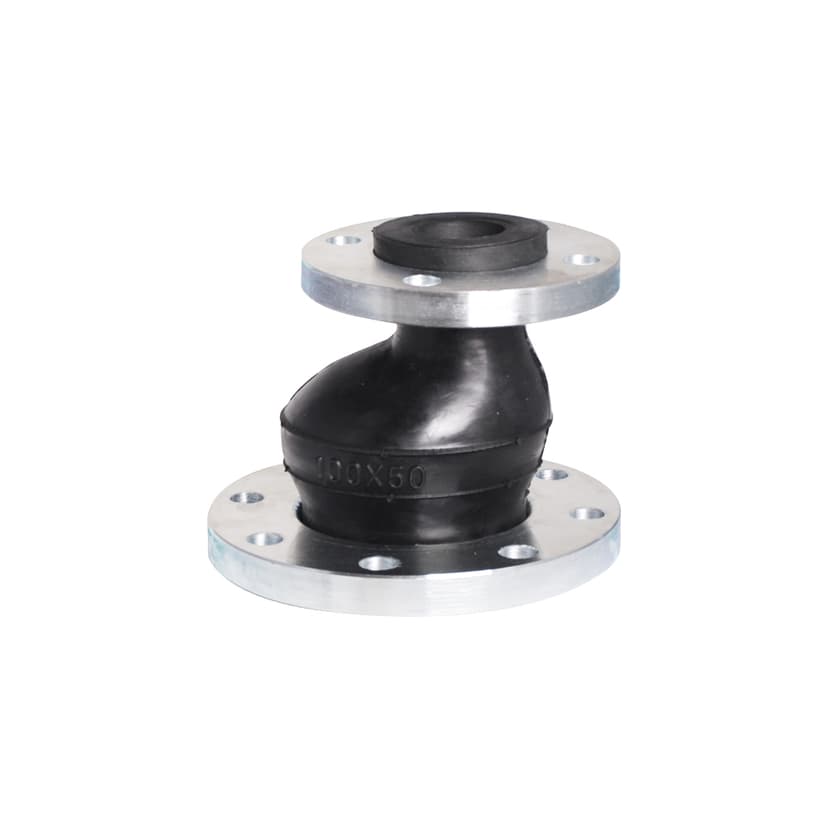

The Eccentric Reducing Rubber Expansion Joint in a sphere design has a centre line which is offset, and has one end larger or smaller than the other. This enables the pipeline to have some flexibility and connection from one larger pipe to a smaller pipe. Please advise if one flange is different from the other, for example - large flange is ANSI 150LB and small flange is Table E. - Higher Pressure Rating available - contact for details - Different material options available, such as stainless steel flanges, NBR, EPDM or Viton rubber options are available. Contact us for a quote. - 12 months warranty on manufacturing defects only.

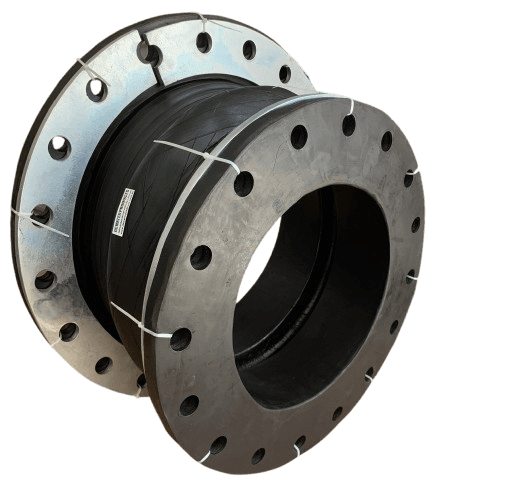

Eccentric Unfilled Arch Reducing Rubber Expansion Joint, a hand made model with a single unfilled arch. Available with backing rings to suit your specifications. Pressure rating to be advised. Available in size range DN50 (2") to DN600 (24") The unfilled arch model will provide good movements, but should not be used on a slurry line or pump suction line. A filled arch model should be used instead. Rubber material EPDM with galvanised backing rings as standard. - Available in a range of flange specifications - contact us for a quote - Available in a range of rubber materials - contact us for a quote - 12 months warranty on manufacturing defects only. For a 316 stainless steel backing ring option - submit a separate quote request For outdoor use and corrosive environments, Passivation must be requested on the 316 stainless steel quote request and highlighted on the purchase order.

Single sphere rubber expansion joint - a common model in Australia. Functions as a vibration eliminator or rubber bellow. Enables pipes to expand and contract, flex, remove vibration and noise, and provide angular movement. EPDM rubber with zinc plated steel Table E or ANSI 150LB flanges. Other flange specifications on request.

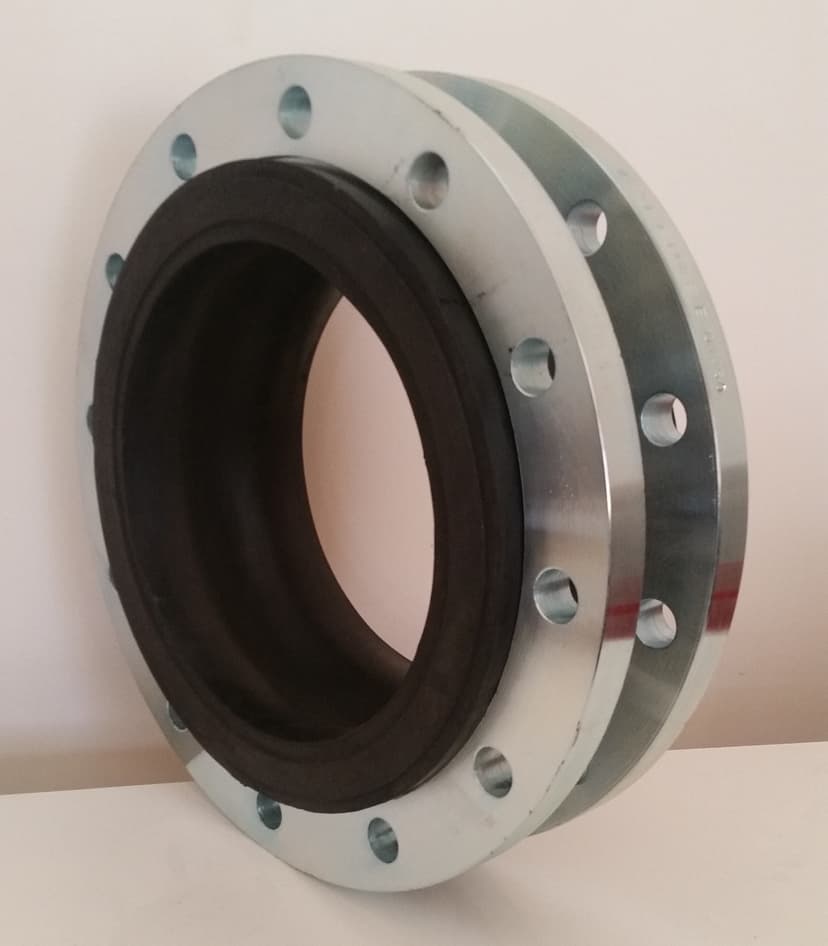

FSF-B single sphere rubber expansion joint with shorter face-to-face dimension (130mm overall length). Ideal for confined installations. Functions as a vibration eliminator or rubber bellows. EPDM rubber with zinc plated Table E or ANSI 150LB flanges. Other flange specifications on request.

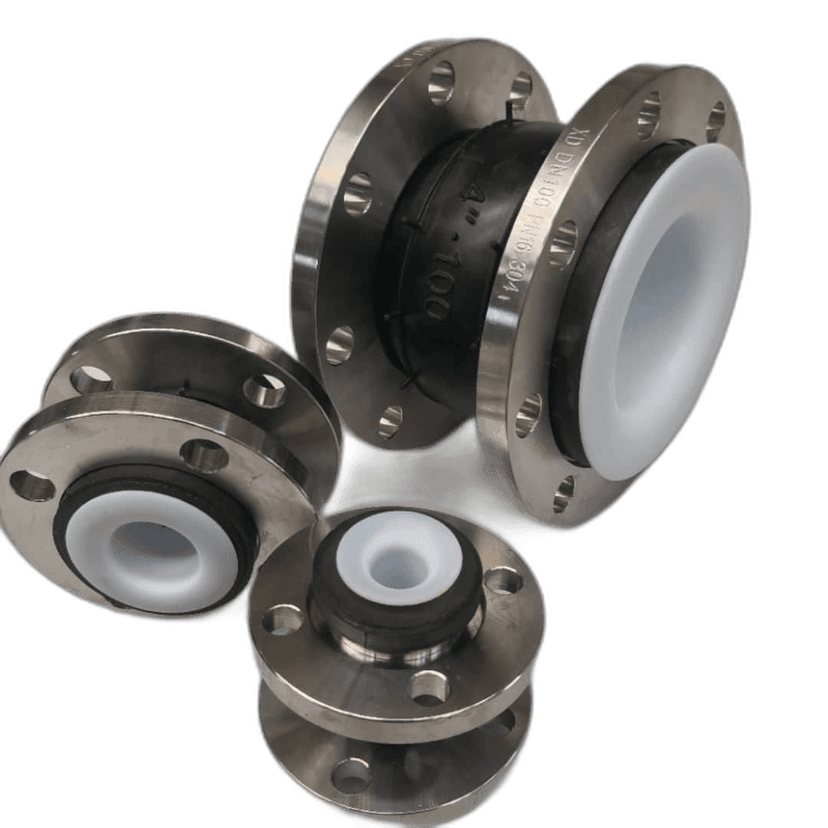

PTFE lined rubber expansion joint with internal PTFE lining bonded to rubber. Designed specifically for vibration elimination only - does not accommodate large movements, axial expansion, compression, angular deflection, or lateral movements when PTFE liner is installed. Ideal for chemical applications requiring PTFE compatibility.

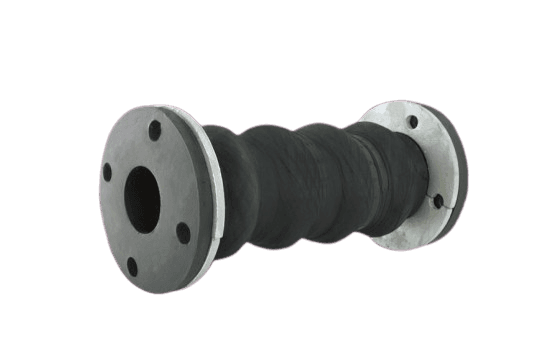

The Quadruple Arch Rubber Expansion Joint has four arches and provides a lot of movement to a pipeline. Allowable movements of 80mm and upwards are easily achievable. Tie Rods/Control rods should be installed if excessive movement is likely to occur. Available in size range DN50 (2") to DN1500 - Available in a range of sizes - contact us for a quote. - Available in a range of flange specifications - contact us for a quote. - Available in a range of rubber material options such as NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only. For a 316 stainless steel backing ring option - submit a separate quote request For outdoor use and corrosive environments, Passivation must be requested on the 316 stainless steel quote request and highlighted on the purchase order.

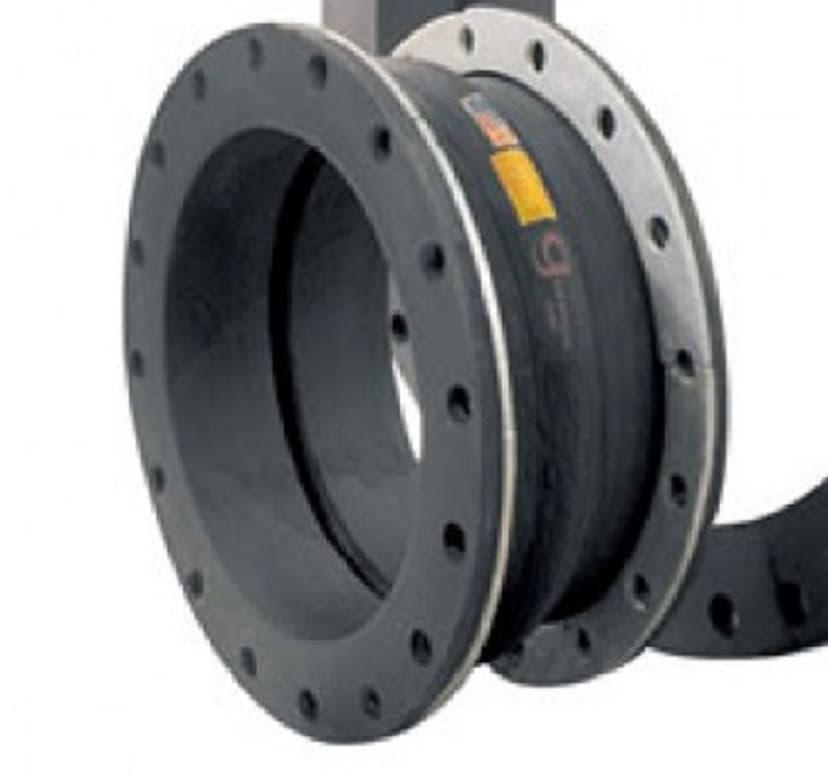

The Single Arch Rubber Expansion Joint with an unfilled arch allows for greater flexibility and angular movement compared with a single sphere model. Allowable movements of 25mm are achievable with a single unfilled arch. Tie rods/Controls rods should be installed if excessive movement is likely to occur. Available in size range DN25 (1") to DN3500 - Available in a range of flange specifications such as ANSI 150LB and flange materials such as 316 stainless steel - contact us for a quote. - A filled arch model is also in our range of rubber expansion joints - contact us for a quote. - Available in a range of rubber material options such as NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only. If a 24 months warranty is required contact us for a quote. Flange specification to be advised. For outdoor use and corrosive environments, Passivation must be requested on 316 stainless steel on the quote request and highlighted on the purchase order.

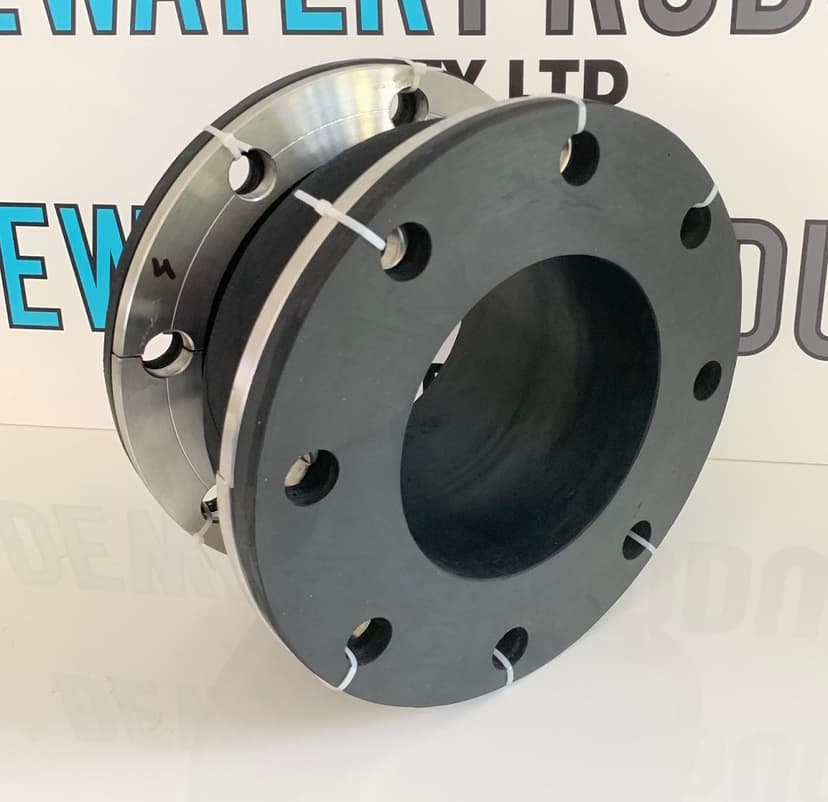

The Single Arch Rubber Expansion Joint with a filled arch, has a smooth straight bore internally, ideal for applications where clogging could occur such as in slurry pipes, or where a greater vacuum pressure is present on a pump suction line. The filled arch model is for vibration elimination on suction pipelines and slurry pipelines. Allowable movements of 10mm are acheivable with a single filled arch. Tie Rods/Control rods should be installed when excessive movements are likely to occur. Available in size range DN25 (1") to DN3500 Slurry bellow Suction bellow Also they can be installed on the suction side of pumps as they have a vacuum rating of 750 mm H.g. and dont require a vacuum ring to reach this rating. Typically Flanged Table E or ANSI 150LB/ASME 150. Available in a range of other flange specifications. Advise us when ordering. Typically with 50% less expansion, contraction and angular deflection compared with the unfilled single arch model. - Available in a range of flange materials such as 316 stainless steel - contact us for a quote. - Available in a range of different rubber materials such as NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only. If a 24 months warranty is required contact us for a quote. For 316 stainless steel backing rings, a separate enquiry must be submitted. For outdoor use and corrosive environments, Passivation must be requested on the 316 stainless steel quote request and highlighted on the purchase order.

Sunshield for a rubber expansion joint, installed on a piping system for outdoor installations. Prevents UV rays from destroying the rubber, and extends the service life. Fabricated from 316 stainless steel and passivated. Fabricated to suit the specific size of the rubber expansion joint from DN50 to DN1500.

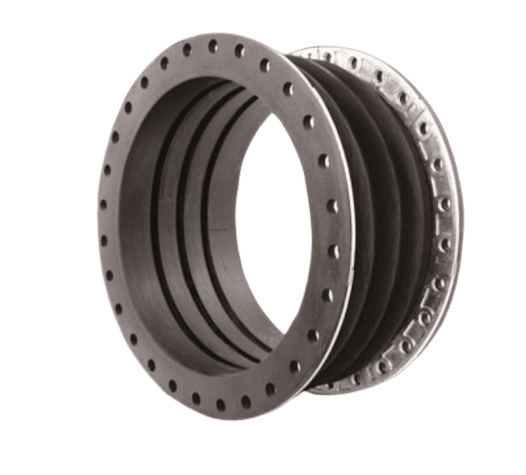

The Triple Arch Rubber Expansion Joint has three arches which can be filled or unfilled. The triple arch rubber expansion joint provides greater movement and flexibility compared to the single arch and double arch models. Movements of 60mm and upwards are achievable. Tie Rods/Control rods should be installed if excessive movements are likely to occur. Available in size range DN50 (2") to DN3000 - Available in a range of sizes and flange options - contact us for a quote. - Available in a range or rubber material options such as NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only. If a 24 months warranty is required contact us for a quote. 316 Stainless steel backing ring option must be submitted separately for a quote request. For outdoor use and corrosive environments, Passivation must be requested on the quote request and highlighted on the purchase order.

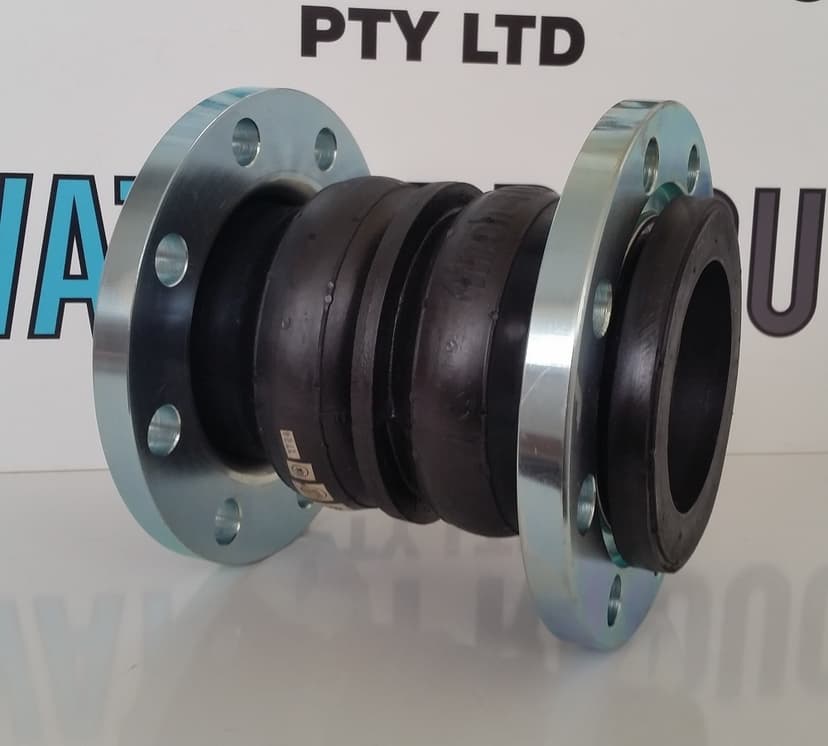

The Twin Sphere Rubber Expansion Joint has two spheres providing more flexibility and movement compared to a single sphere model. Also known as a vibration eliminator and rubber bellow. Allowable movements range from 27mm to 65mm depending on the nominal bore size and direction of movement. Tie rods/Control rods should be installed when excessive movements are likely to occur. Available in size range DN25 (1") to DN750 (30") Most common flanges are Table E or ANSI 150LB, advise when ordering, and that the same flange specification is the same on both ends. It can be common for different flanges to fitted on each end. - Available in a range of different flange specifications - contact us for a quote. - Available in a range of flange materials such as 316 stainless steel - contact us for a quote. - Available in a range of different rubber materials such as NBR, EPDM, Viton - contact us for a quote - 12 months warranty on manufacturing defects only.

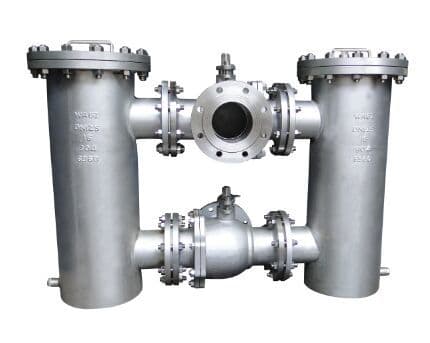

The Duplex Basket Strainer is fabricated from 316 Stainless Steel. It comes with 3 way Ball Valves with an L or T port to be specified when ordering. Size range: DN50(2") to DN100(4") The 3 way Ball Valve option is only available in the size range DN50 to DN100. Any size larger than DN100(4") will need to be supplied with butterfly valves. A full 316 stainless steel strainer system. SAF 2205 materials can be quoted on request. Standard mesh size is 3mm, but other mesh sizes can be supplied on request. Quick release T Bolts as standard, but not shown on this current image. - 12 months warranty on manufacturing defects only. For outdoor use and corrosive environments, Passivation must be requested on the quote request and highlighted on the purchase order.

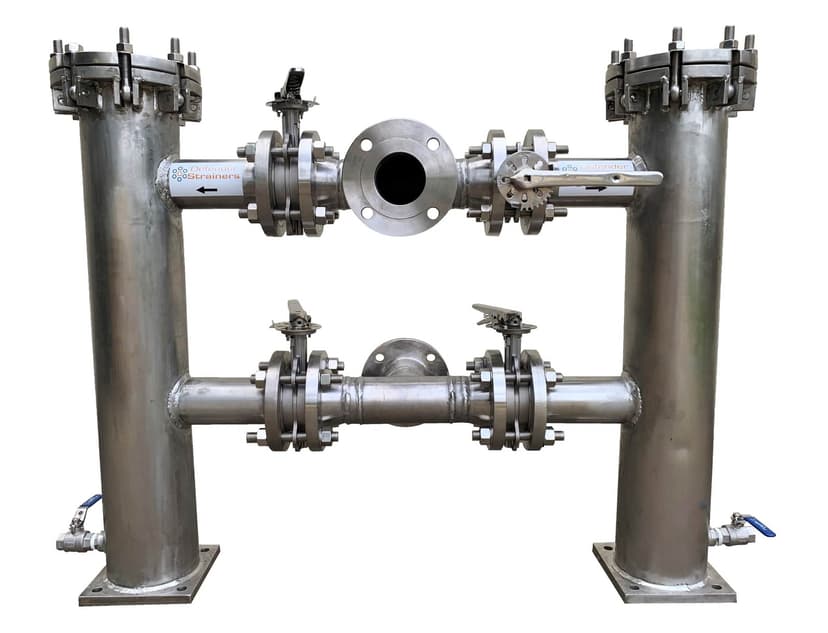

The Duplex Basket Strainer is fabricated from 316 stainless steel. It comes fitted with full 316 stainless steel butterfly valves ( CF8M body and 316ss disc, 316ss stem, with EPDM seat ). Size range: DN50 (2") to DN300 (12") Standard mesh size is 3mm, but other sizes can be supplied on request. T- Bolts for quick release on the top lids are standard. - 12 months warranty on manufacturing defects only. For outdoor use and corrosive environments, Passivation must be requested on the quote request and highlighted on the purchase order.

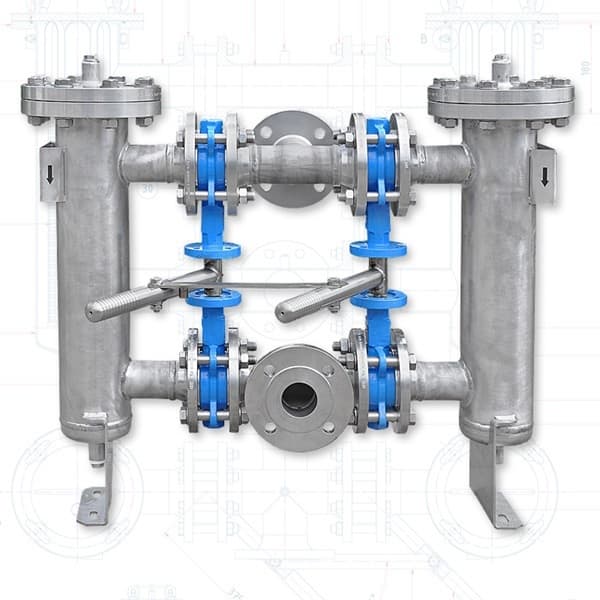

The Duplex Basket Strainer is fabricated from Carbon Steel and fitted with 316 stainless steel filter screens internally. Ductile Iron body butterfly valves with 316ss disc and EPDM seat. Size range: DN50(2") to DN300(12") Standard mesh size is 3mm, but other sizes can be supplied on request. Quick release T - Bolts come standard on the top lid, althought the current image doesnt show this. - 12 months warranty on manufacturing defects only.

The Fabricated Basket Strainer comes fitted with a davit arm for lifting the top lid and a cable hoist to lift out the internal basket screen. In large sizes of Basket Strainers, internal basket screens become very heavy when full, and it is safer to use a lifting hoist to lift out the internal basket safely. It is the same case for the top lid of a basket strainer which are very heavy in larger sizes of basket strainers. A davit arm will ensure the safe removal and installation of the top lid. -The height of the legs can be customised to your requirements. - Working pressure to be specified when ordering, as well as flange specifcation and aperture size. - 12 months warranty on manufacturing defects only. 316 stainless steel is an option to be submitted separately on a quote request. For outdoor use and corrosive environments, Passivation must be requested on the 316 stainless steel quote request and highlighted on the purchase order.

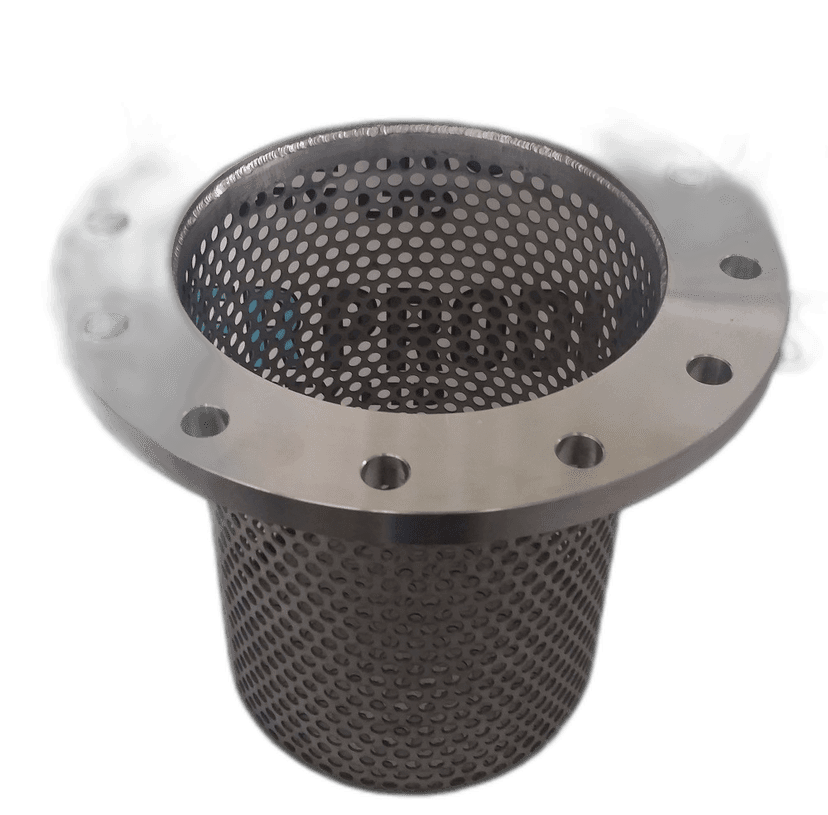

Flanged suction strainer prevents large debris from being sucked into pump systems. Installed at the suction end of pipelines. Manufactured from 316 stainless steel with 13mm standard aperture size. Flanged Table D AS2129 configuration with alternative flange specs available on request.

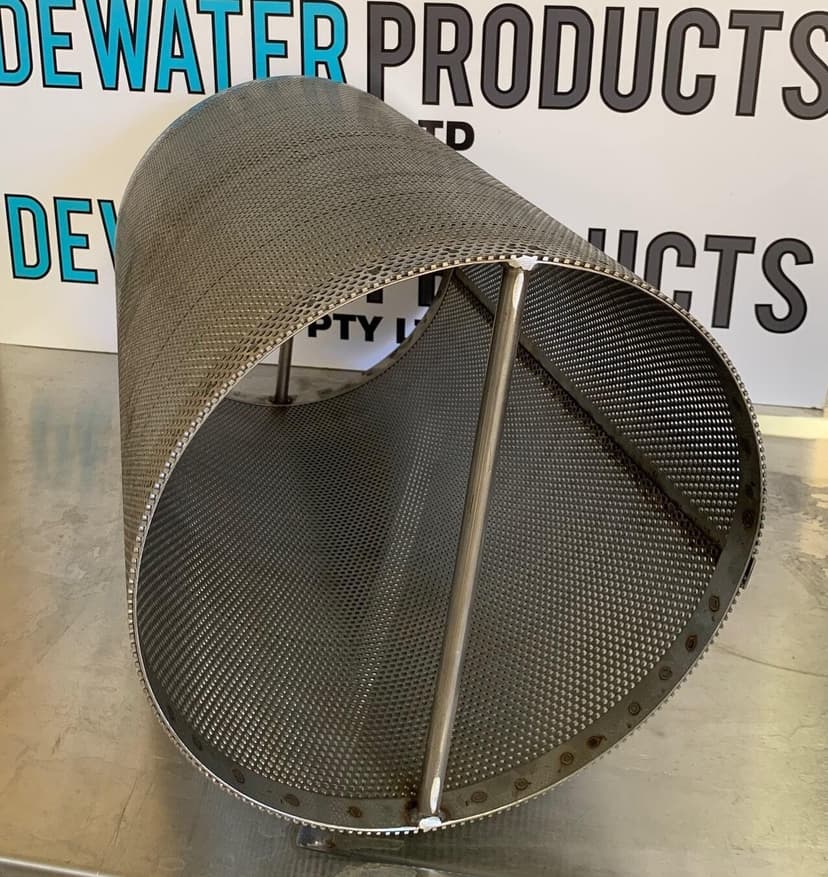

The Heavy Duty Y Strainer filter screen is manufactured from 316 stainless steel, with added strengthening and cross bars. With the added cross bars, removing a dirty screen is made much easier, as well as easier installation of the filter screen once cleaned. Note: Y strainer filter screens without cross bars can be very difficult to remove from the Y strainer at service time, and generally dont last as long. Heavy Duty Y strainer filter screens are designed for very demanding processes in pipelines, such as high pressure, and large heavy debris that would ruin a normal cheaper filter screen. Essential dimensions required are as follows: Screen Outside Diameter, Inside diameter, Length, mesh size. Must be advised when ordering. - Also available in different materials - contact us for a quote.

Oversized simplex basket strainer, using a larger body size than normal. Having the ability to collect more debris with the larger internal strainer basket, reducing the frequency of shut downs and maintance. Virtually zero pressure drop compared to a standard size simplex basket strainer. Manufactured from 316 stainless steel. Different mesh sizes available. Available in a range of sizes and flange specifications. For outdoor use and corrosive environments, Passivation must be requested on the quote request and highlighted on the purchase order.

AS4087 PN16 flanged Simplex Basket Strainer in 316 stainless steel. The 316 Stainless Steel Simplex Basket Strainer is installed in a pipeline to filter debris and collect them inside the inner basket. Ideally suited for a corrosive application, or where 316 stainless steel is the preferred body material. Standard filter mesh size is 3mm. - Available in different stainless steel grades such as 304, and even Duplex Stainless Steel - contact us for a quote. - Available in a range of flange specifications such as Table D, Table E - contact us for a quote. - Available in a range of screen filter sizes to suit your choice - contact us for a quote. - 12 months warranty on manufacturing defects only. For outdoor use and corrosive environments, Passivation must be requested on the quote request and highlighted on the purchase order.

AS2129 Table D flanged Simplex Basket Strainer in 316 stainless steel. The 316 Stainless Steel Simplex Basket Strainer is installed in a pipeline to filter debris and collect them inside the inner basket. Ideally suited for a corrosive application, or where 316 stainless steel is the preferred body material. Standard filter mesh size is 3mm. - Available in different stainless steel grades such as 304, and even Duplex Stainless Steel - contact us for a quote. - Available in a range of flange specifications such as Table D, Table E - contact us for a quote. - Available in a range of screen filter sizes to suit your choice - contact us for a quote. - 12 months warranty on manufacturing defects only. For outdoor use and corrosive environments, Passivation must be requested on the quote request and highlighted on the purchase order.

AS2129 Table E flanged Simplex Basket Strainer in 316 stainless steel. The 316 Stainless Steel Simplex Basket Strainer is installed in a pipeline to filter debris and collect them inside the inner basket. Ideally suited for a corrosive application, or where 316 stainless steel is the preferred body material. Standard filter mesh size is 3mm. - Available in different stainless steel grades such as 304, and even Duplex Stainless Steel - contact us for a quote. - Available in a range of flange specifications such as Table D, Table E - contact us for a quote. - Available in a range of screen filter sizes to suit your choice - contact us for a quote. - 12 months warranty on manufacturing defects only. For outdoor use and corrosive environments, Passivation must be requested on the quote request and highlighted on the purchase order.

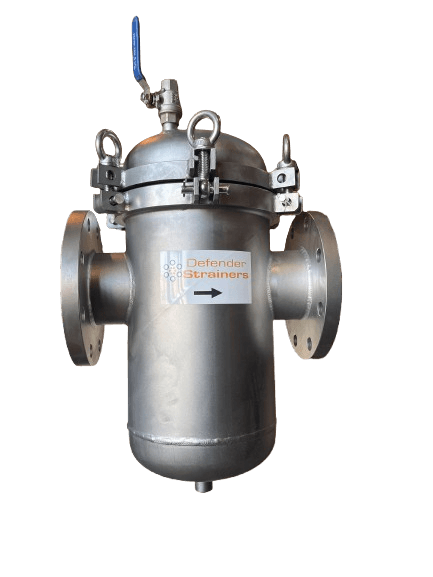

ANSI 150LB flanged Simplex Basket Strainer in 316 stainless steel. The 316 Stainless Steel Simplex Basket Strainer is installed in a pipeline to filter debris and collect them inside the inner basket. Ideally suited for a corrosive application, or where 316 stainless steel is the preferred body material. Standard filter mesh size is 3mm. - Available in different stainless steel grades such as 304, and even Duplex Stainless Steel - contact us for a quote. - Available in a range of flange specifications such as Table D, Table E - contact us for a quote. - Available in a range of screen filter sizes to suit your choice - contact us for a quote. - 12 months warranty on manufacturing defects only. For outdoor use and corrosive environments, Passivation must be requested on the quote request and highlighted on the purchase order.

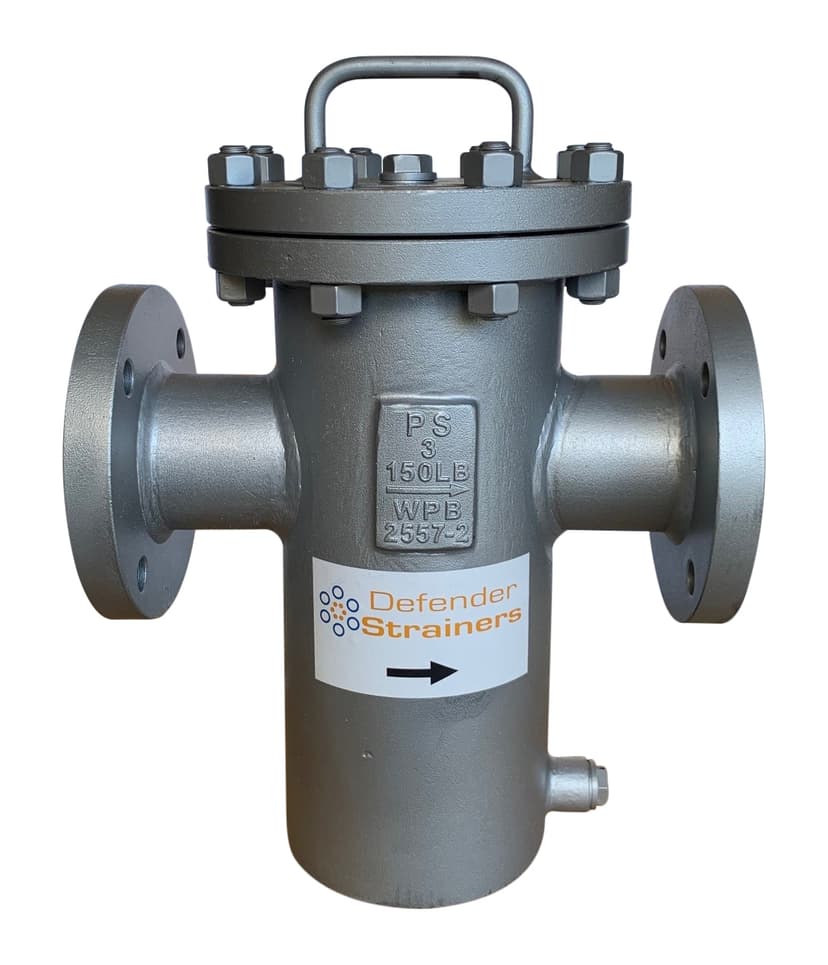

The WCB Cast Steel Simplex Basket Strainer is installed in a pipeline to filter out large debris and collecting them inside the inner basket screen. Ideally suited where corrosion is not of great concern. Standard flanges are ANSI 150LB/ASME 150. The standard filter screen is manufactured from 304 stainless steel and with a standard aperture size of 0.4mm. - A 316 stainless steel filter screen option is available at extra cost, contact us for a quote. - Available in a range of flange specifications such as Table D, Table E - contact us for a quote. - Available in a range of screen aperture sizes, such as 3mm - contact us for a quote. - 12 months warranty on manufacturing defects only.

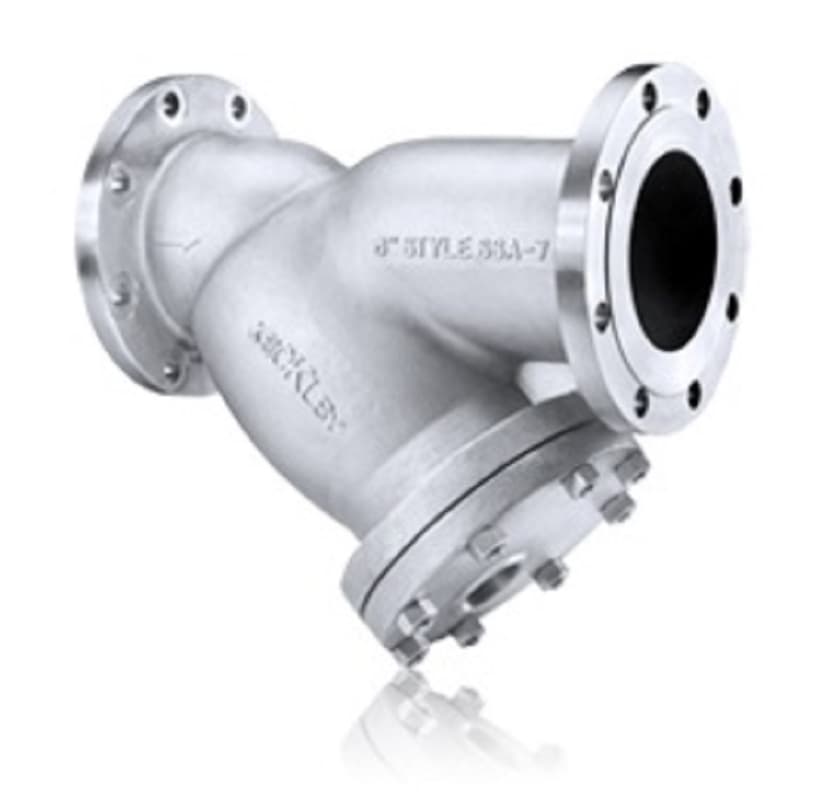

Permanent pipeline strainer for filtering debris with 316 stainless steel body. Y-shaped design allows horizontal or vertical installation. Ideal for pre-pump filtration and applications requiring infrequent cleaning.

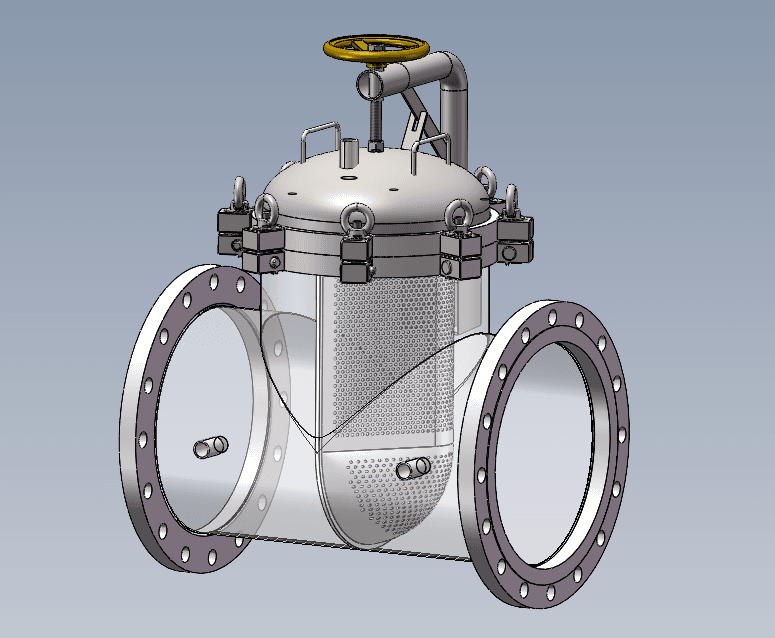

Tee Strainer fabricated from 316 stainless steel, flanged AS4087 PN16 with 3mm aperture mesh. Quick release top lid.

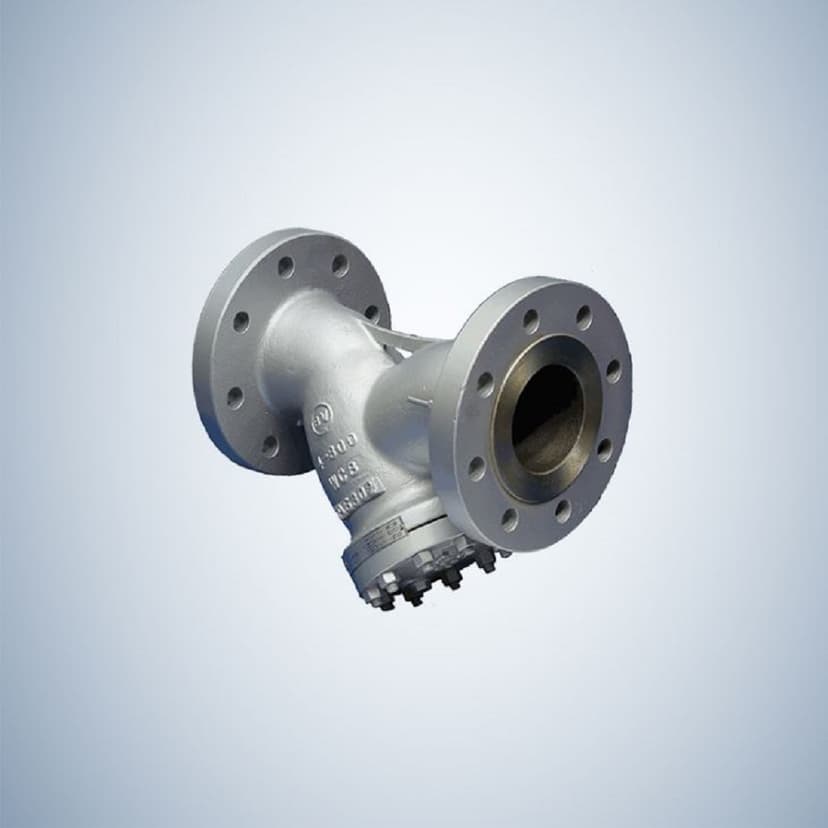

The WCB Cast Steel Y Strainer with WCB Body and stainless steel screen internally is installed in a non corrosive application to filter large debris in a piping system. Flanged ANSI 150LB/ASME 150. - Available in a range of flange specifications - contact us for a quote. - Available with different screen aperture sizes - contact us for a quote. - 12 months warranty on manufacturing defects only.

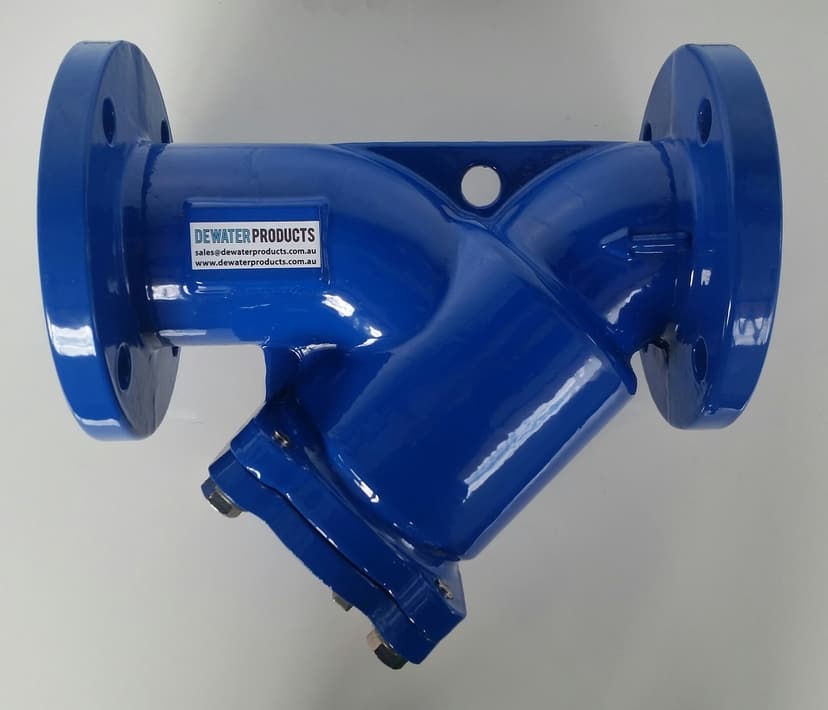

The FBE Coated Y strainer comes in various body materials depending on the size and flange class, and also aperture size requested. Size range: DN50(2") to DN450(18") Body material options can vary from Cast or Ductile Iron, WCB Cast steel, Fabricated carbon steel. All FBE coated Y Strainers come with a Stainless Steel filter screen internally. It is best if you contact Dewater Products Pty Ltd directly if you have specifc specification requirements such as aperture size, screen material, face to face dimension, and flange spec. None standard aperture sizes can be supplied at additional cost. Contact us for more information. - 12 months warranty on manufacturing defects only.
