Foot Valve - HDPE - Flanged Table E
Foot Valve - HDPE - Flanged Table E
Free delivery to metro areas
The HDPE Foot Valve is installed to stop large debris from entering the pump system and stops back flow maintaining priming for the pump.
Discounts apply to your total order quantity across all products
Select Size & Quantity
Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
Description

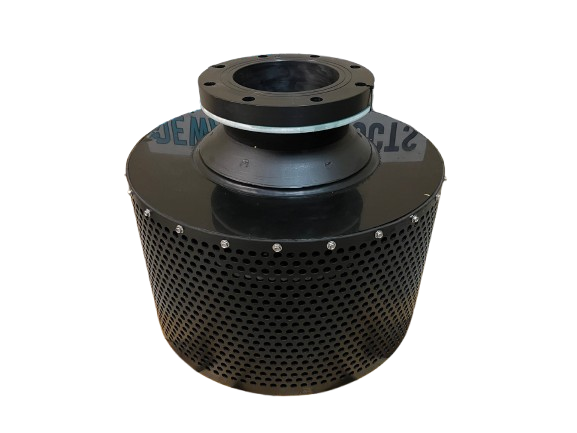

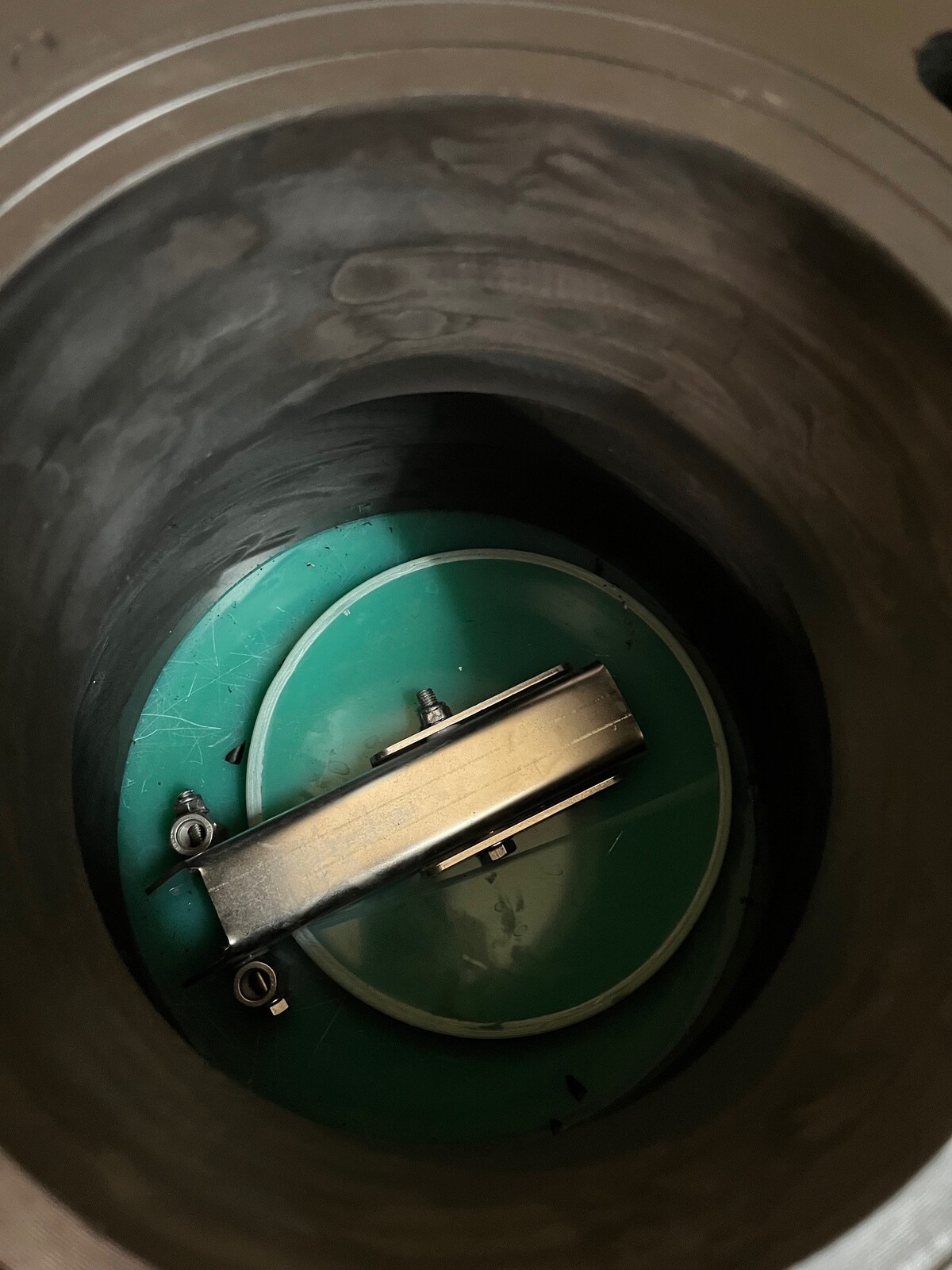

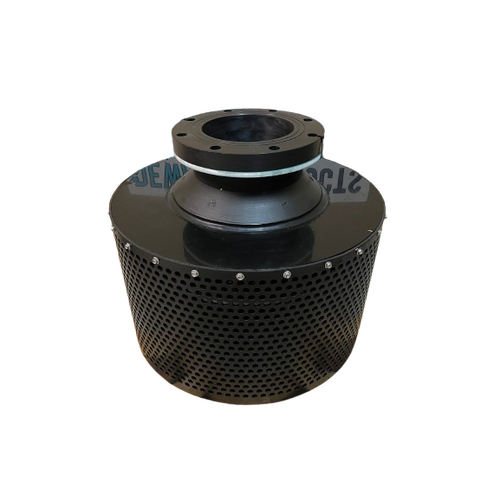

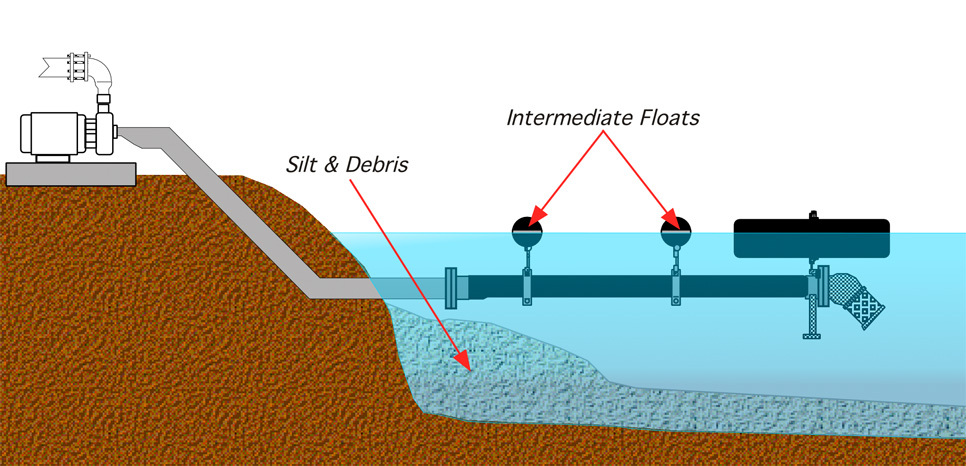

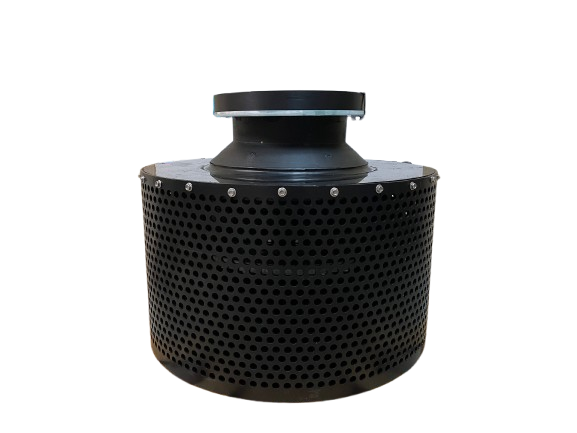

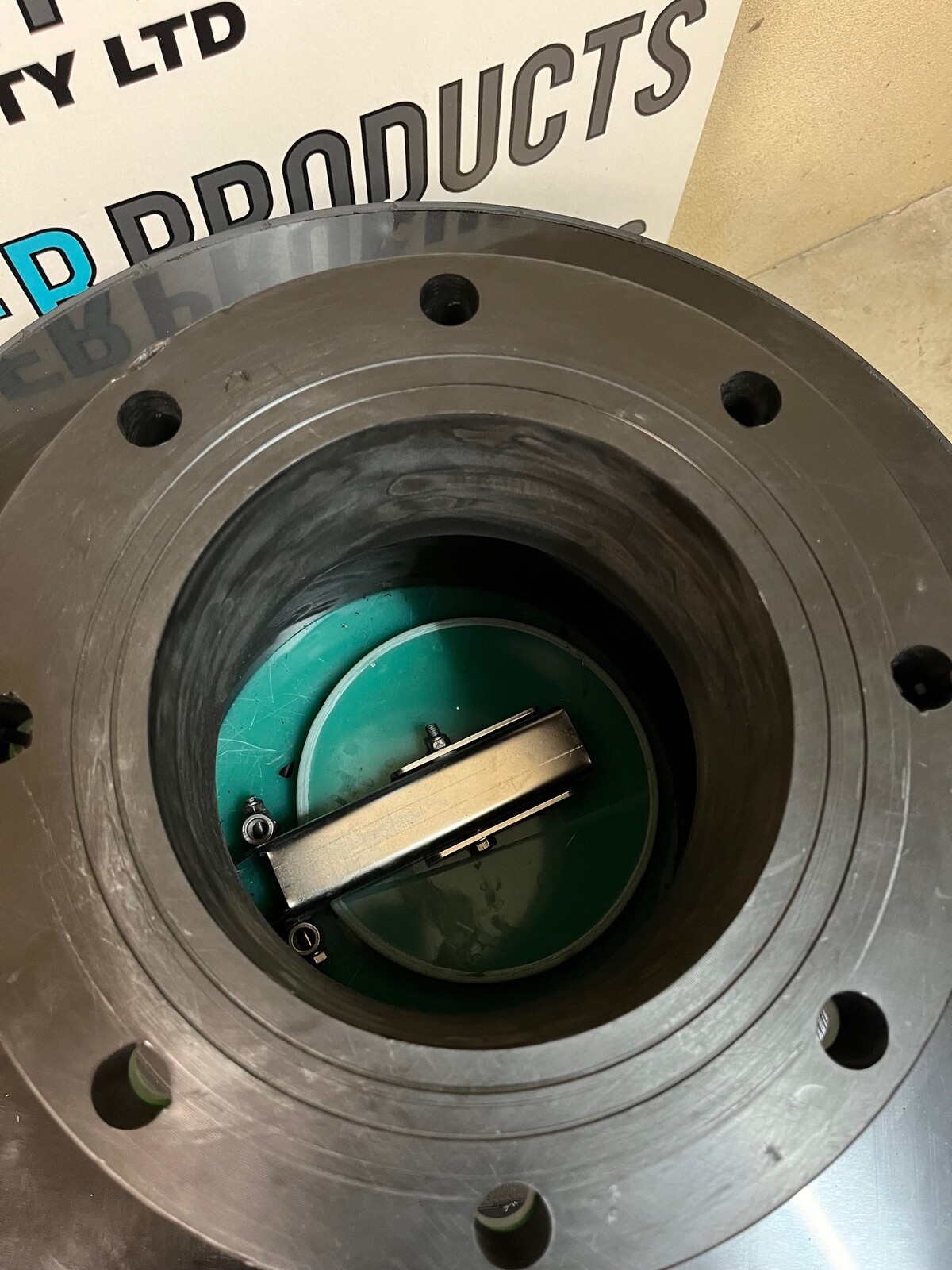

The HDPE Foot Valve is installed to stop large debris from entering the pump system and stops back flow maintaining priming for the pump. Size range: DN80(3") to DN400(16"). Over size DN150(6") The Poly Foot Valve comes with Anti Vortex plates in the screen. No water swirling occurs, maximising an unrestrictive water flow. Installed on the suction side of a pump. Keep your suction line primed with this valve. HDPE poly Flanged Foot valves are available in sizes DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400. The Poly Foot Valve can be installed vertically, or at a 45 degrees angle. The disc has a spring closure mechanism. Available in a range of flange specifications such as Table D, Table E, ANSI 150LB/ ASME 150 - contact us for a quote. 12 months warranty on manufacturing defects only.
Features
- •Size From: 80mm
- •Body: HDPE/EPDM
- •Pressure Range: 0 - 10 BAR
