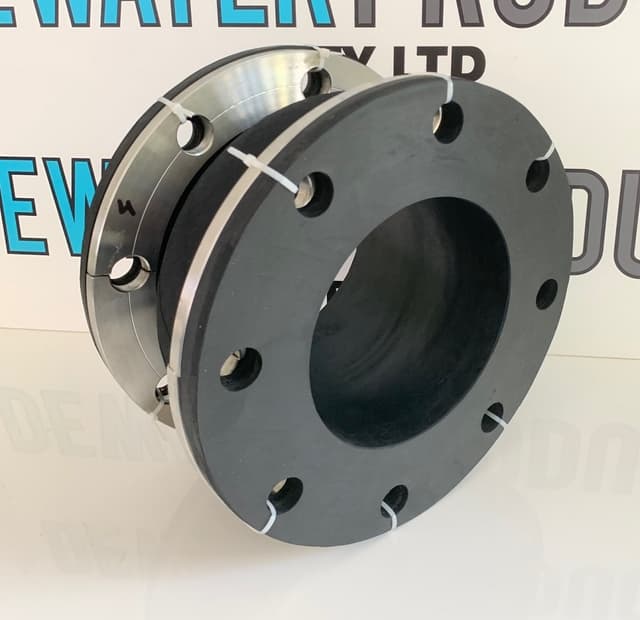

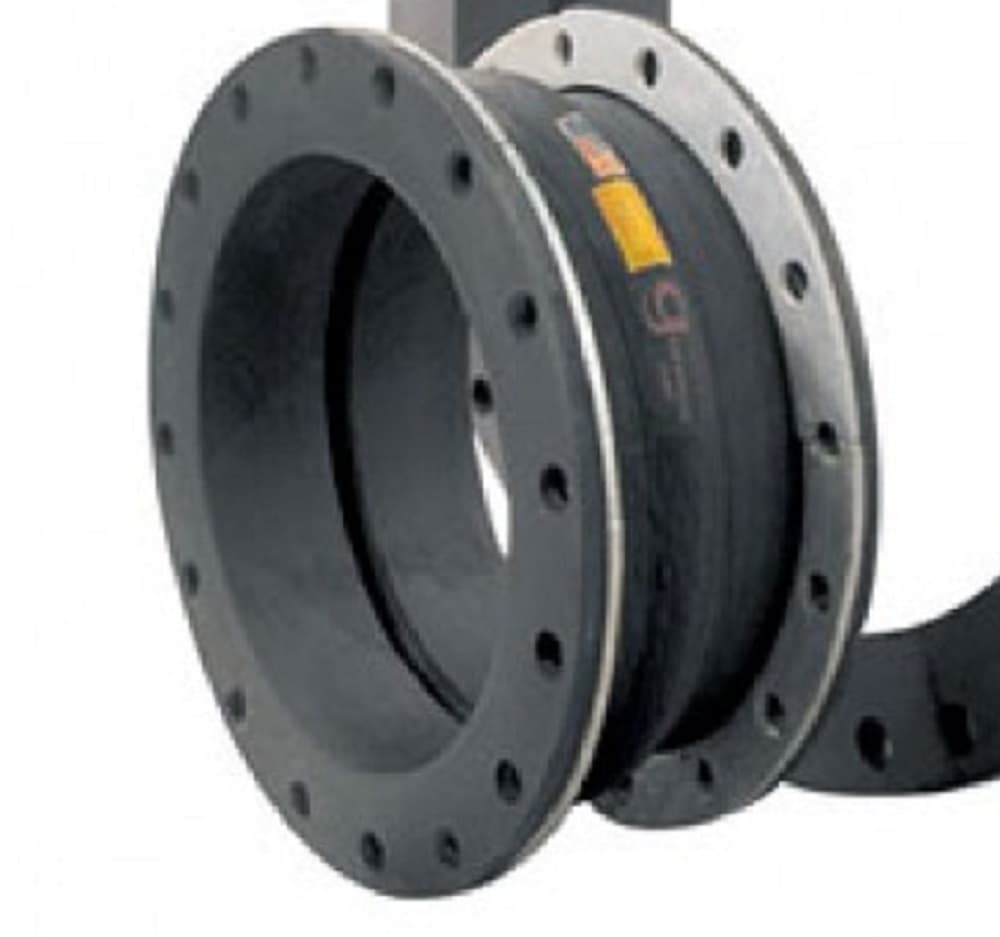

Single Arch Rubber Expansion Joint with unfilled arch
Single Arch Rubber Expansion Joint with unfilled arch
Free delivery to metro areas
The Single Arch Rubber Expansion Joint with an unfilled arch allows for greater flexibility and angular movement compared with a single sphere model.
In stock now
- 50mm: 1 in stock
Other sizes and larger quantities: 3 to 5 weeks
Discounts apply to your total order quantity across all products
Select Size & Quantity
Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
Description
The Single Arch Rubber Expansion Joint with an unfilled arch allows for greater flexibility and angular movement compared with a single sphere model. Allowable movements of 25mm are achievable with a single unfilled arch. Tie rods/Controls rods should be installed if excessive movement is likely to occur. Available in size range DN25 (1") to DN3500 - Available in a range of flange specifications such as ANSI 150LB and flange materials such as 316 stainless steel - contact us for a quote. - A filled arch model is also in our range of rubber expansion joints - contact us for a quote. - Available in a range of rubber material options such as NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only. If a 24 months warranty is required contact us for a quote. Flange specification to be advised. For outdoor use and corrosive environments, Passivation must be requested on 316 stainless steel on the quote request and highlighted on the purchase order.
Features
- •Size From: 50mm
- •Unfilled Arch Body: EPDM/Zinc plated steel
- •Pressure Range: 0 to 16 BAR
