Description

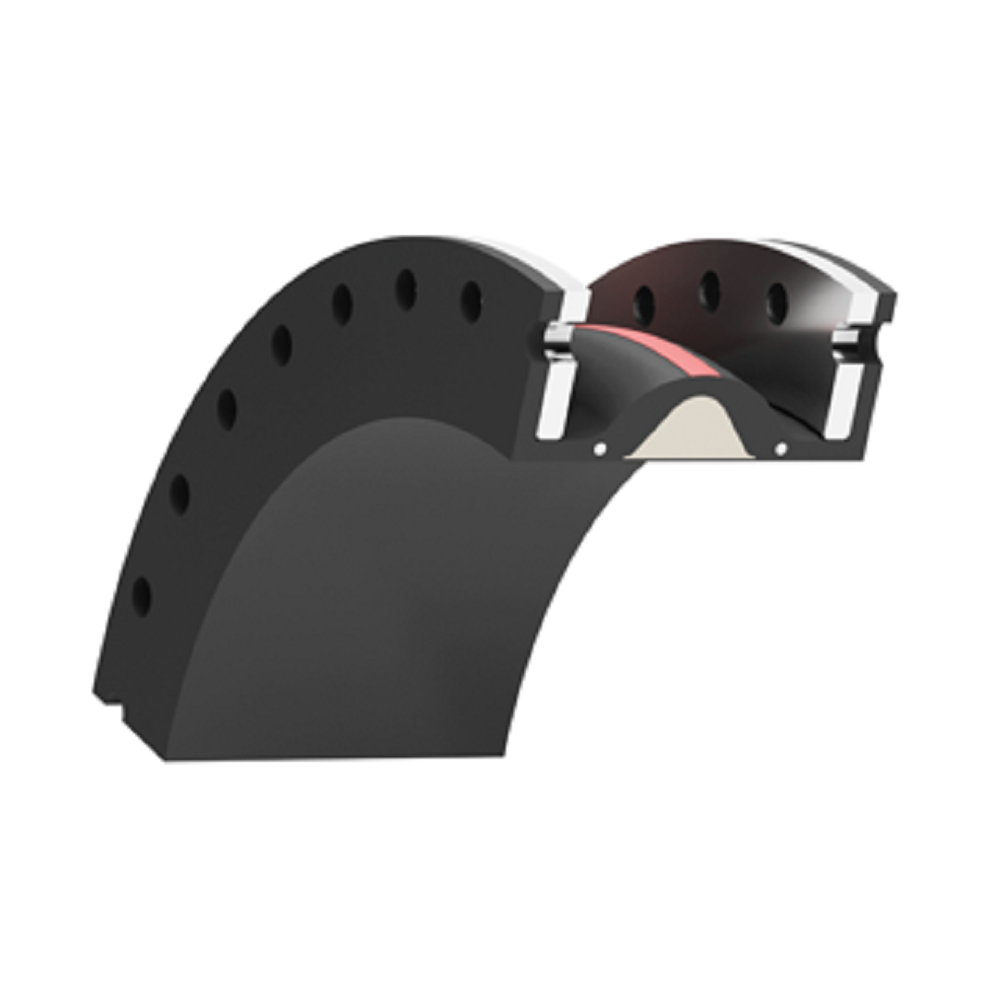

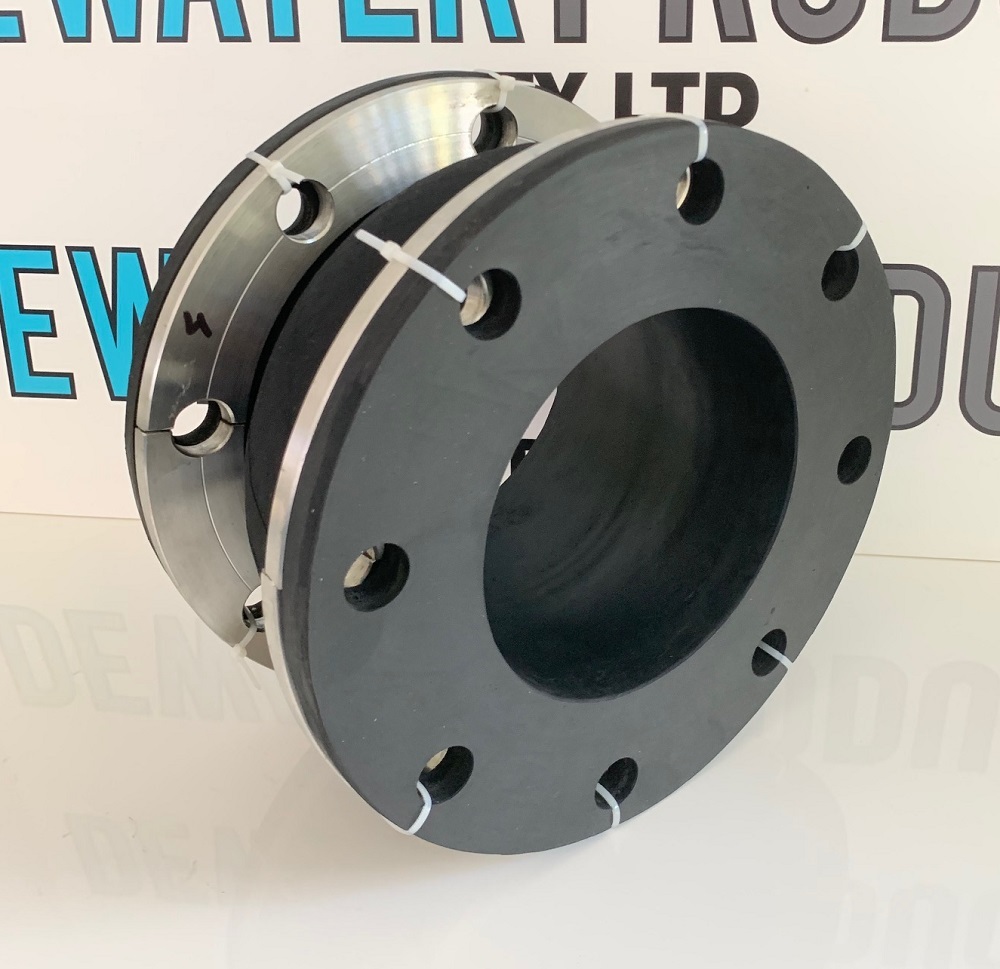

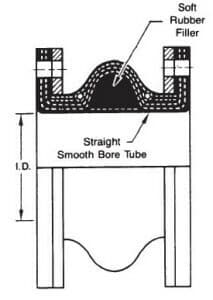

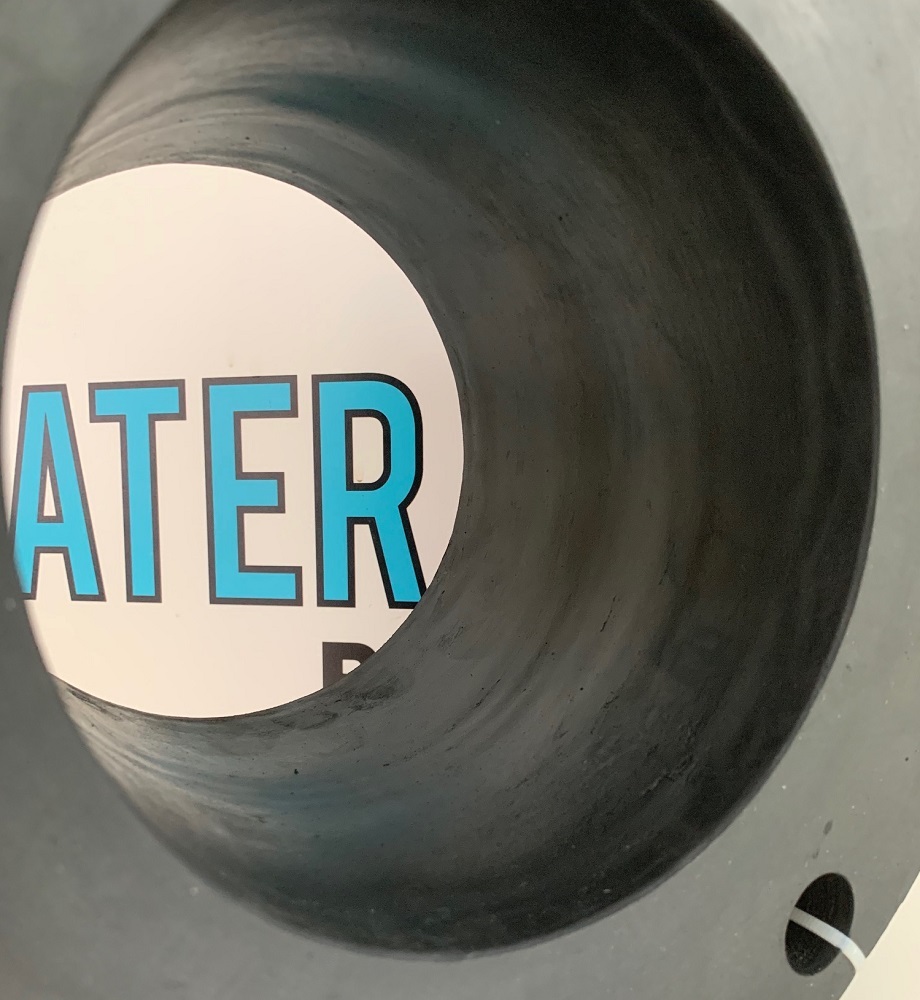

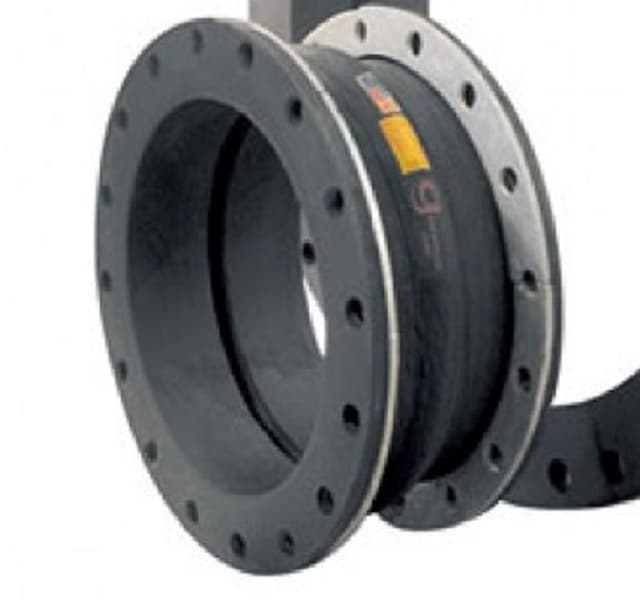

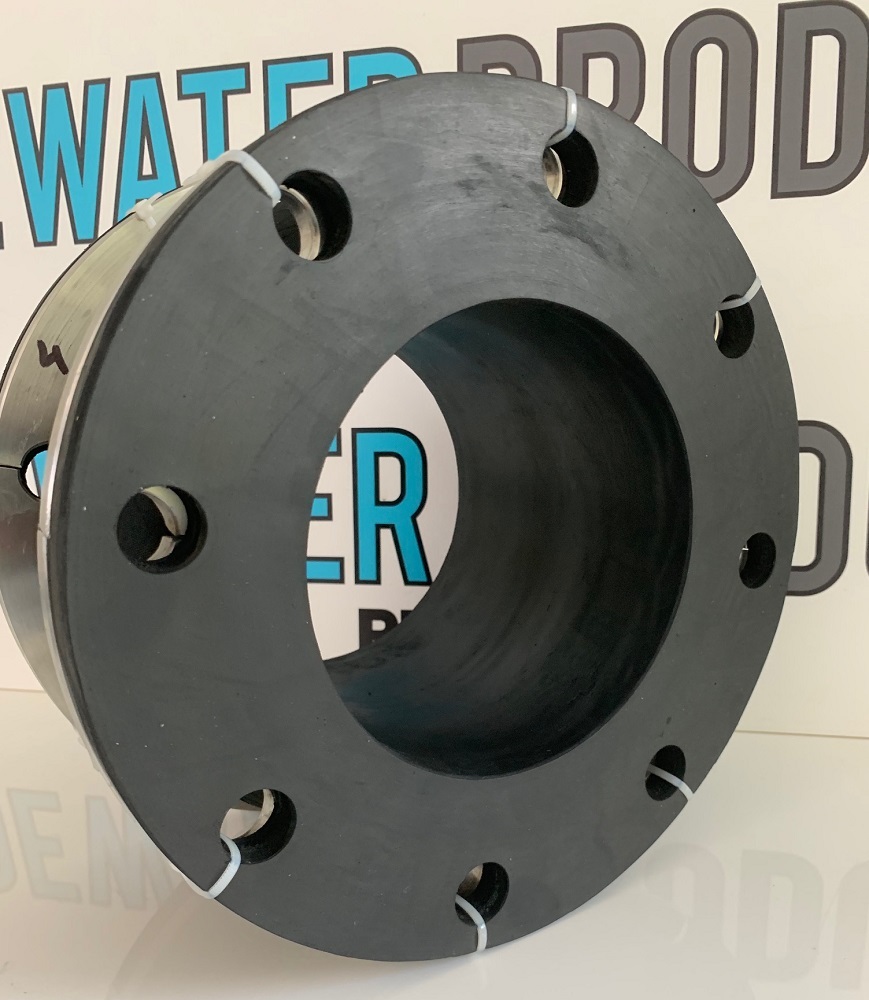

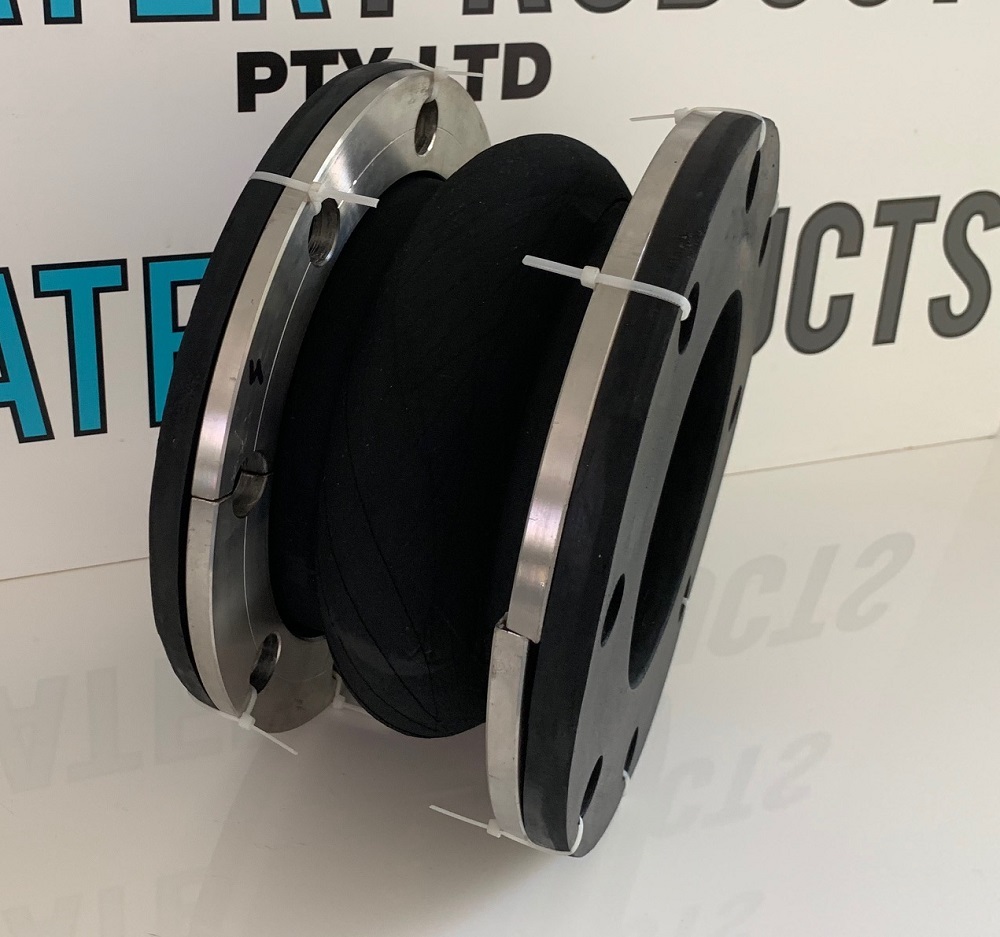

The Single Arch Rubber Expansion Joint with a filled arch, has a smooth straight bore internally, ideal for applications where clogging could occur such as in slurry pipes, or where a greater vacuum pressure is present on a pump suction line. The filled arch model is for vibration elimination on suction pipelines and slurry pipelines. Allowable movements of 10mm are acheivable with a single filled arch. Tie Rods/Control rods should be installed when excessive movements are likely to occur. Available in size range DN25 (1") to DN3500 Slurry bellow Suction bellow Also they can be installed on the suction side of pumps as they have a vacuum rating of 750 mm H.g. and dont require a vacuum ring to reach this rating. Typically Flanged Table E or ANSI 150LB/ASME 150. Available in a range of other flange specifications. Advise us when ordering. Typically with 50% less expansion, contraction and angular deflection compared with the unfilled single arch model. - Available in a range of flange materials such as 316 stainless steel - contact us for a quote. - Available in a range of different rubber materials such as NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only. If a 24 months warranty is required contact us for a quote. For 316 stainless steel backing rings, a separate enquiry must be submitted. For outdoor use and corrosive environments, Passivation must be requested on the 316 stainless steel quote request and highlighted on the purchase order.

Features

• •Size From: 50mm
• •Filled Arch Body: EPDM/Zinc plated steel
• •Pressure Range: 0 to 16 BAR
