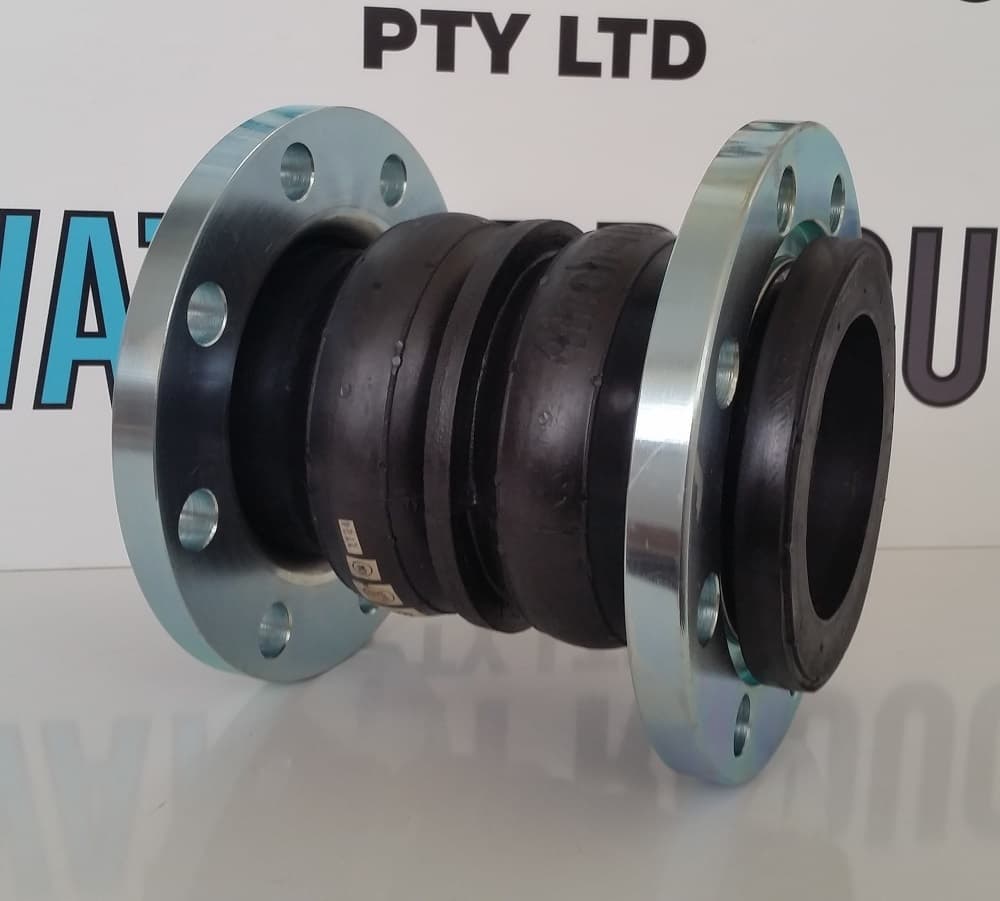

Twin Sphere Rubber Expansion Joint FTF with Table E or ANSI 150LB Zinc flanges
Twin Sphere Rubber Expansion Joint FTF with Table E or ANSI 150LB Zinc flanges
Free delivery to metro areas
The Twin Sphere Rubber Expansion Joint has two spheres providing more flexibility and movement compared to a single sphere model.
Discounts apply to your total order quantity across all products
Select Size & Quantity
Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
Description
The Twin Sphere Rubber Expansion Joint has two spheres providing more flexibility and movement compared to a single sphere model. Also known as a vibration eliminator and rubber bellow. Allowable movements range from 27mm to 65mm depending on the nominal bore size and direction of movement. Tie rods/Control rods should be installed when excessive movements are likely to occur. Available in size range DN25 (1") to DN750 (30") Most common flanges are Table E or ANSI 150LB, advise when ordering, and that the same flange specification is the same on both ends. It can be common for different flanges to fitted on each end. - Available in a range of different flange specifications - contact us for a quote. - Available in a range of flange materials such as 316 stainless steel - contact us for a quote. - Available in a range of different rubber materials such as NBR, EPDM, Viton - contact us for a quote - 12 months warranty on manufacturing defects only.
Features
- •Size From: 32mm
- •Body: EPDM / Zinc plated steel
- •Pressure Range: 0 TO 16 BAR
