Defender Valves

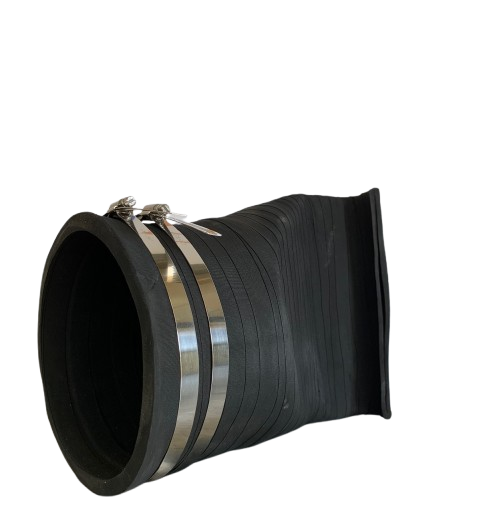

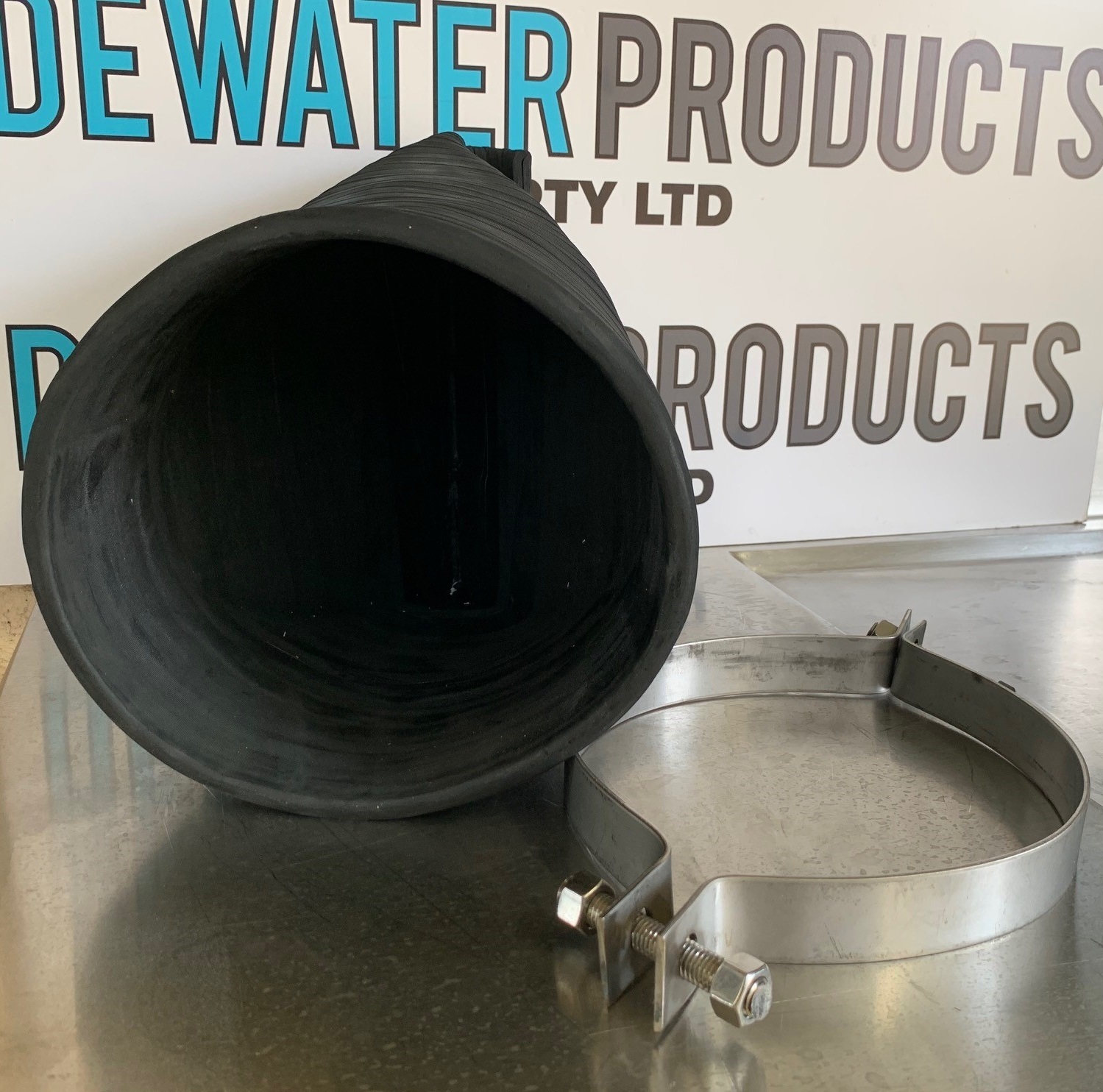

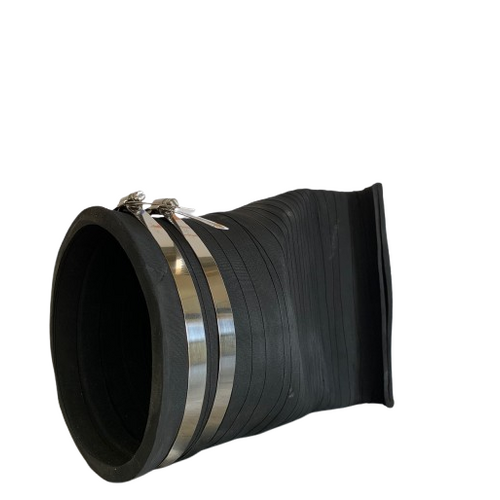

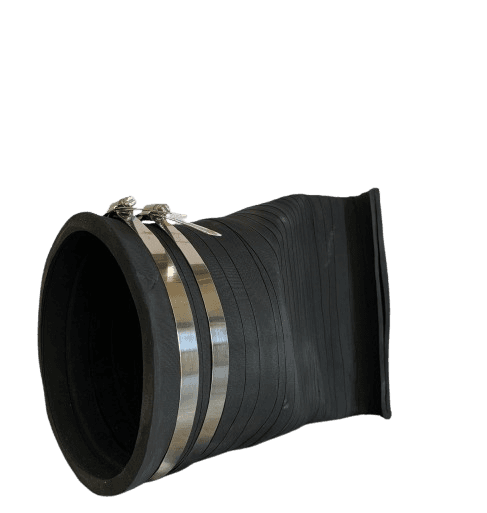

DB-1 Slip On Duckbill Check Valve - Neoprene
1 / 5
Defender Valves
DB-1 Slip On Duckbill Check Valve - Neoprene
Free delivery to metro areas
The Slip On Duckbill Check Valve model DB-1 is installed over the end of a plain ended pipe to prevent back flow.
Size:88.9mm to 1700.0mm
Body:Neoprene
Max Temp:0 - 80 Deg C
In stock now
- 110.0mm: 2 in stock
- 160.0mm: 3 in stock
- 225.0mm: 1 in stock
- 250.0mm: 1 in stock
- 355.0mm: 1 in stock
- 355.6mm: 1 in stock
Other sizes and larger quantities: 3 weeks if nil stock
Bulk Pricing:2-4 qty5% off5-9 qty10% off10+ qty15% off
Discounts apply to your total order quantity across all products
Select Size & Quantity
Ex GST
Lead time: 3 weeks if nil stock

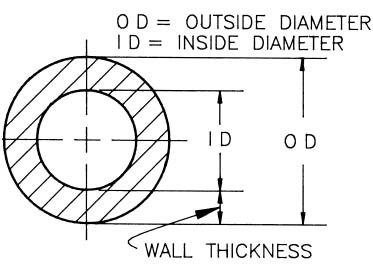

Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
SKU:DB-1
Lead Time:3 weeks if nil stock
Description
The Slip On Duckbill Check Valve model DB-1 is installed over the end of a plain ended pipe to prevent back flow. The DB-1 model is a Flat bottom model, with a flared top to enhance flow rates and reduce head loss.
Features
- •Curved Bill model provides 50% more sealing area compared to straight bill
- •Better tighter seal when debris are present
- •from 25cm of fluid/water to crack the valve open(curved bill) - the valve does not fully open at this low head pressure, full flow is required and zero back pressure for the valve to fully open*
- •Available in a wide range of sizes: 88.9mm to 1700.0mm
- •Available in different rubber materials: Neoprene, NBR, EPDM, Viton
- •12 months warranty on manufacturing defects only
Applications

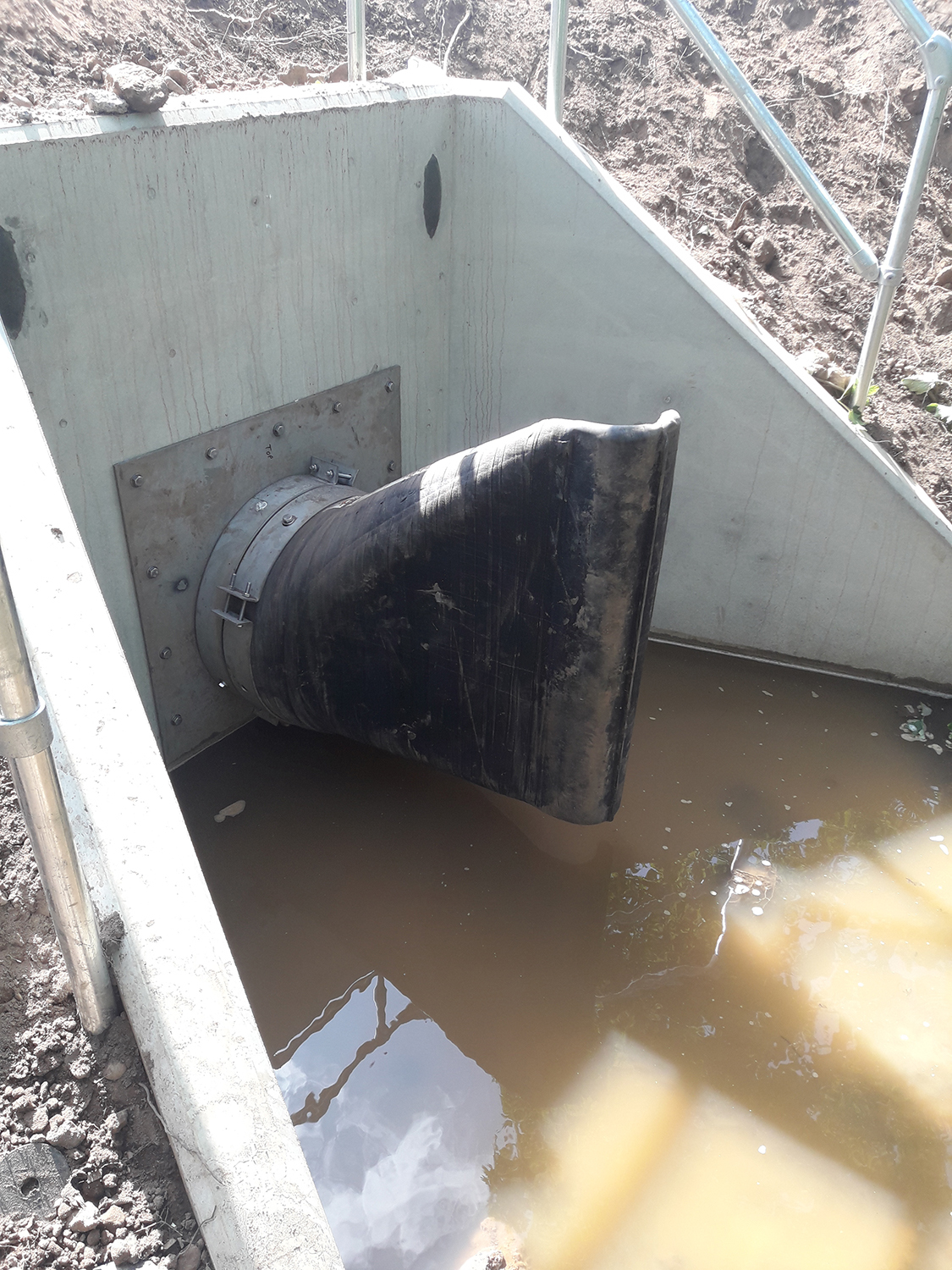

- •Storm water systems
- •Outfall pipes
- •Backflow prevention
