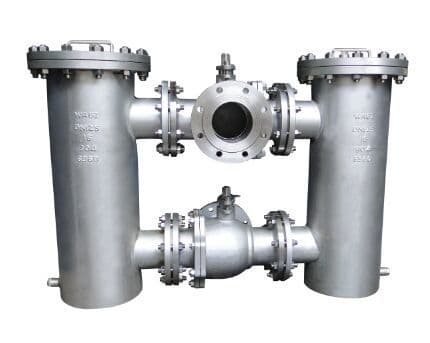

Duplex Basket Strainer 316SS fitted with 3 way flanged ball valves ANSI 150LB
Duplex Basket Strainer 316SS fitted with 3 way flanged ball valves ANSI 150LB
Free delivery to metro areas
The Duplex Basket Strainer is fabricated from 316 Stainless Steel. It comes with 3 way Ball Valves with an L or T port to be specified when ordering.
Discounts apply to your total order quantity across all products
Select Size & Quantity
Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
Description
The Duplex Basket Strainer is fabricated from 316 Stainless Steel. It comes with 3 way Ball Valves with an L or T port to be specified when ordering. Size range: DN50(2") to DN100(4") The 3 way Ball Valve option is only available in the size range DN50 to DN100. Any size larger than DN100(4") will need to be supplied with butterfly valves. A full 316 stainless steel strainer system. SAF 2205 materials can be quoted on request. Standard mesh size is 3mm, but other mesh sizes can be supplied on request. Quick release T Bolts as standard, but not shown on this current image. - 12 months warranty on manufacturing defects only. For outdoor use and corrosive environments, Passivation must be requested on the quote request and highlighted on the purchase order.
Features
- •Size From: 50mm
- •Body: 316 Stainless Steel
- •Pressure Range: 0-20 BAR
- •Mesh: 3mm other options available
