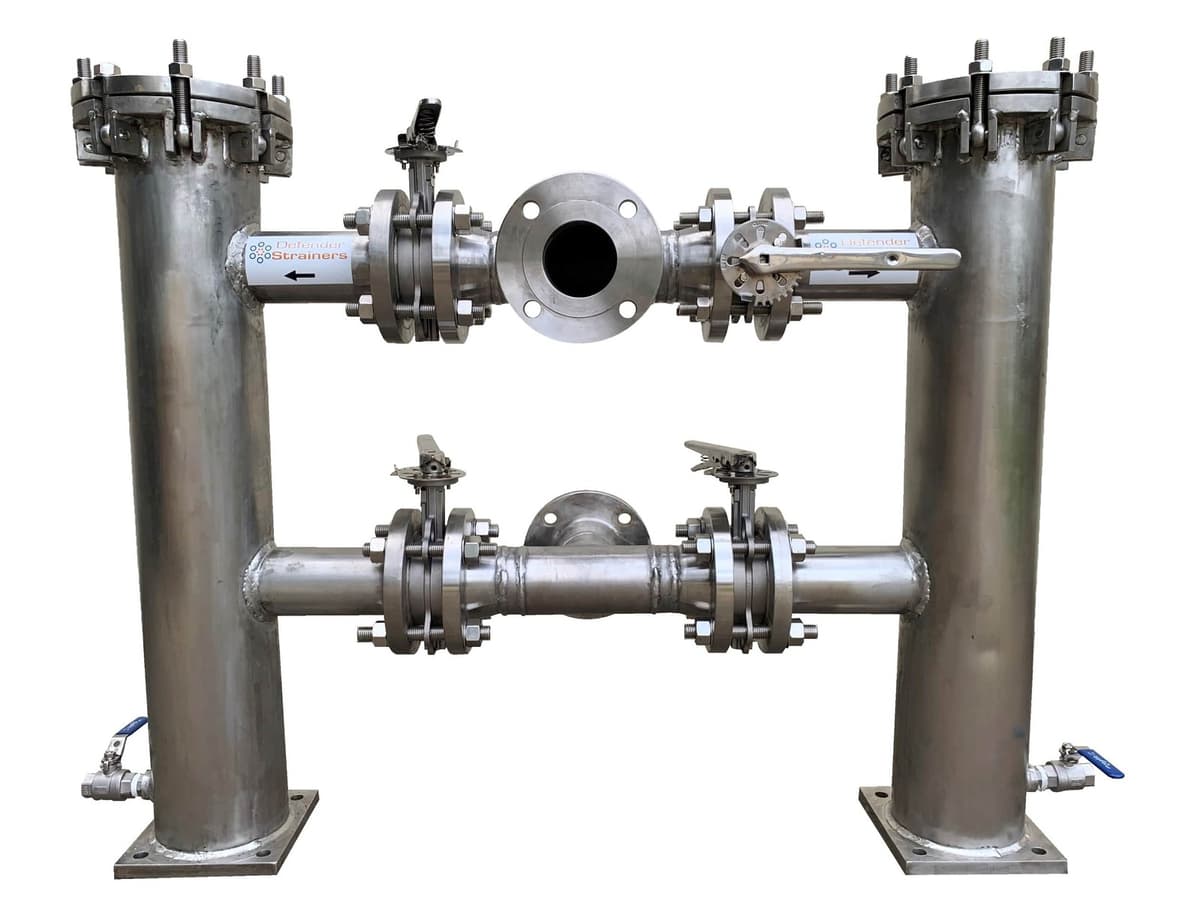

Duplex Basket Strainer 316SS fitted with SS butterfly valves flanged ANSI 150LB
Duplex Basket Strainer 316SS fitted with SS butterfly valves flanged ANSI 150LB
Free delivery to metro areas
The Duplex Basket Strainer is fabricated from 316 stainless steel. It comes fitted with full 316 stainless steel butterfly valves ( CF8M body and 316ss disc, 316ss stem, with EPDM seat ).
Discounts apply to your total order quantity across all products
Select Size & Quantity
Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
Description
The Duplex Basket Strainer is fabricated from 316 stainless steel. It comes fitted with full 316 stainless steel butterfly valves ( CF8M body and 316ss disc, 316ss stem, with EPDM seat ). Size range: DN50 (2") to DN300 (12") Standard mesh size is 3mm, but other sizes can be supplied on request. T- Bolts for quick release on the top lids are standard. - 12 months warranty on manufacturing defects only. For outdoor use and corrosive environments, Passivation must be requested on the quote request and highlighted on the purchase order.
Features
- •Size From: 50mm
- •Body: 316 Stainless Steel
- •Pressure Range: 0-16 BAR
- •Mesh: 3mm other options available
