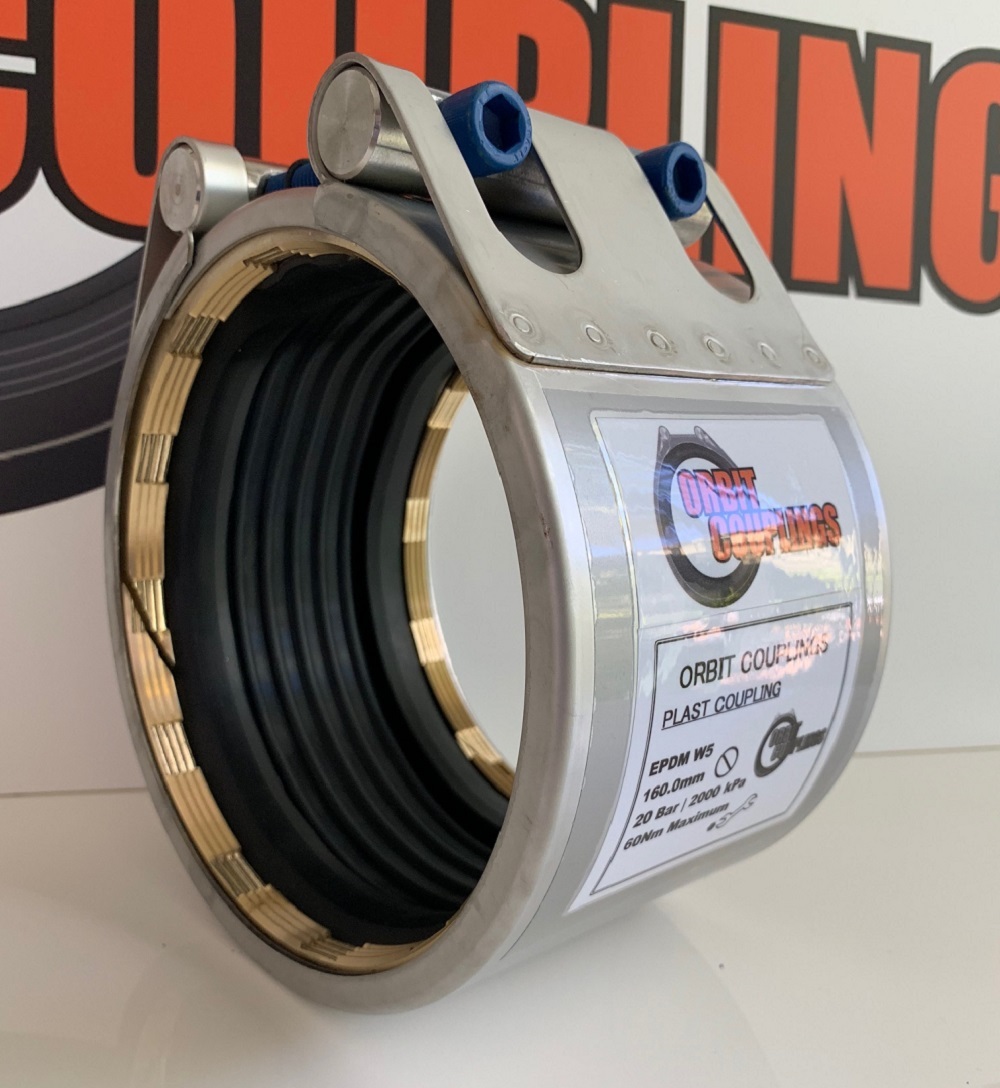

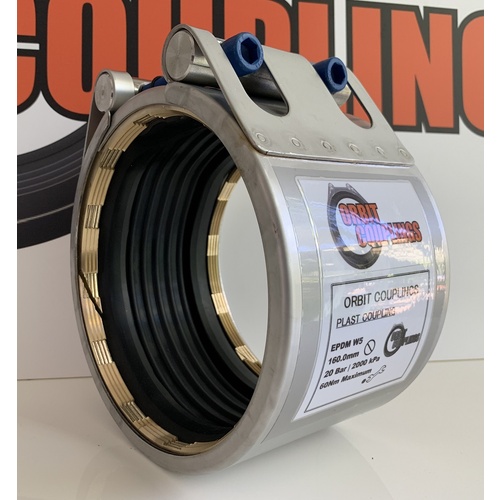

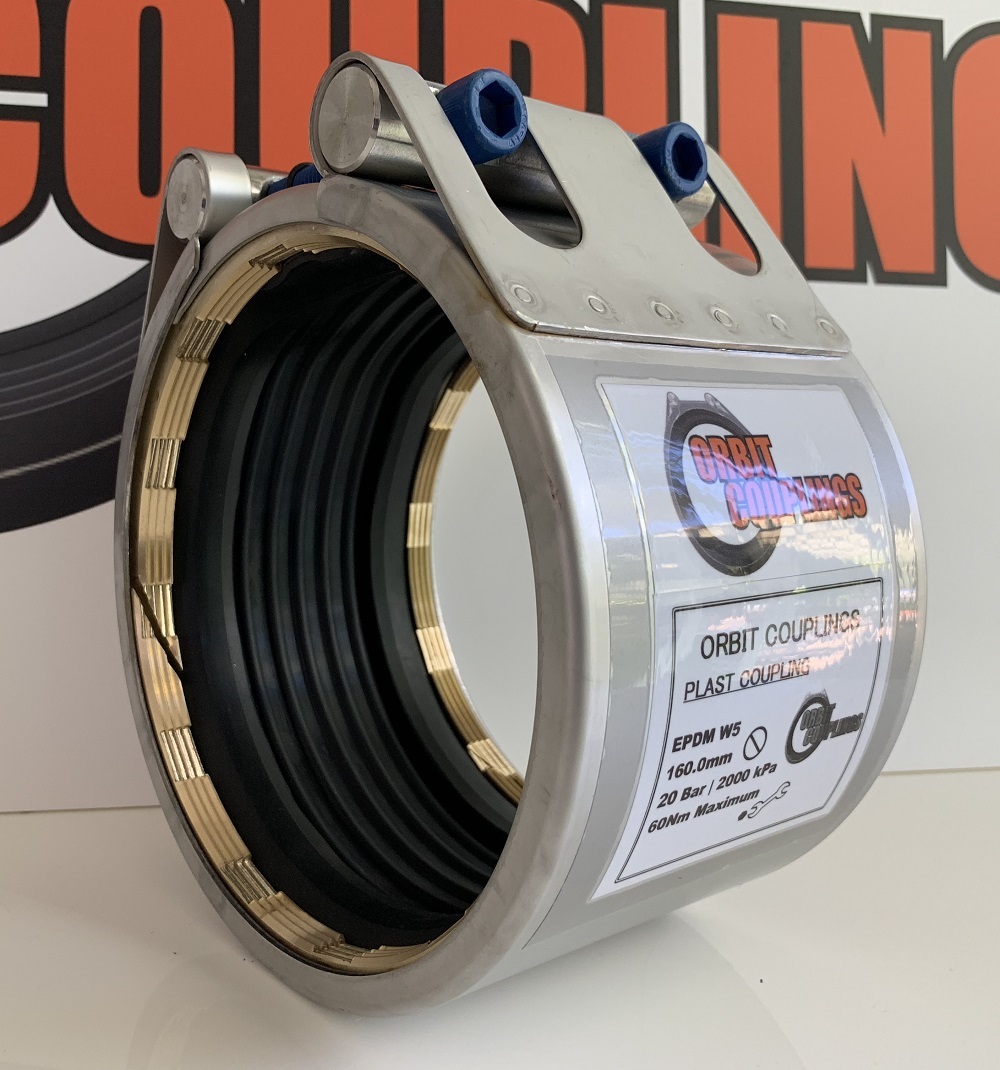

The Plast Coupling is the easiest pipe coupling model specifically used for connecting plastic pipes such as HDPE pipe.
In stock now
- 110.0mm: 2 in stock
Other sizes and larger quantities: 2 to 3 weeks
Discounts apply to your total order quantity across all products
Select Size & Quantity
Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
Description

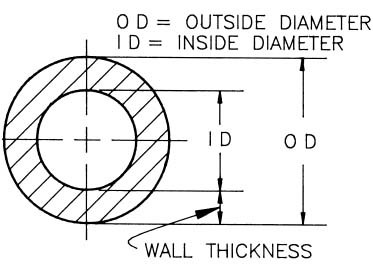

The Plast Coupling is the easiest pipe coupling model specifically used for connecting plastic pipes such as HDPE pipe. The coupling is designed to provide axial restraint and pull out resistance, using progressive anchor rings. Tightening the two bolts will lock the two pipes together using this mechanical pipe coupling. This mechanical Plast pipe coupling is used to connect two HDPE pipes together, in a fast and easy manner. Please ensure your pipe outside diameter matches the size of coupling. The Plast coupling is sized to suit the Outside diameter of the HDPE pipe. 63mm outside diameter, 75mm outside diameter, 90mm outside diameter, 110mm outside diameter, 125mm outside diameter, 140mm outside diameter, 160mm outside diameter, 180mm outside diameter, 200mm outside diameter, 225mm outside diameter, 250mm outside diameter. - Different rubber material options are available such as NBR, EPDM, Viton - contact us for a quote. *Other outside diameter sizes not mentioned can be manufactured on request* - 12 months warranty on manufacturing defects only.
Features
- •Size From: 63.0mm
- •Body: 316ss/EPDM
- •Pressure Range: 0 TO 20 BAR
