Quadruple Arch Rubber Expansion Joint
Quadruple Arch Rubber Expansion Joint
Free delivery to metro areas

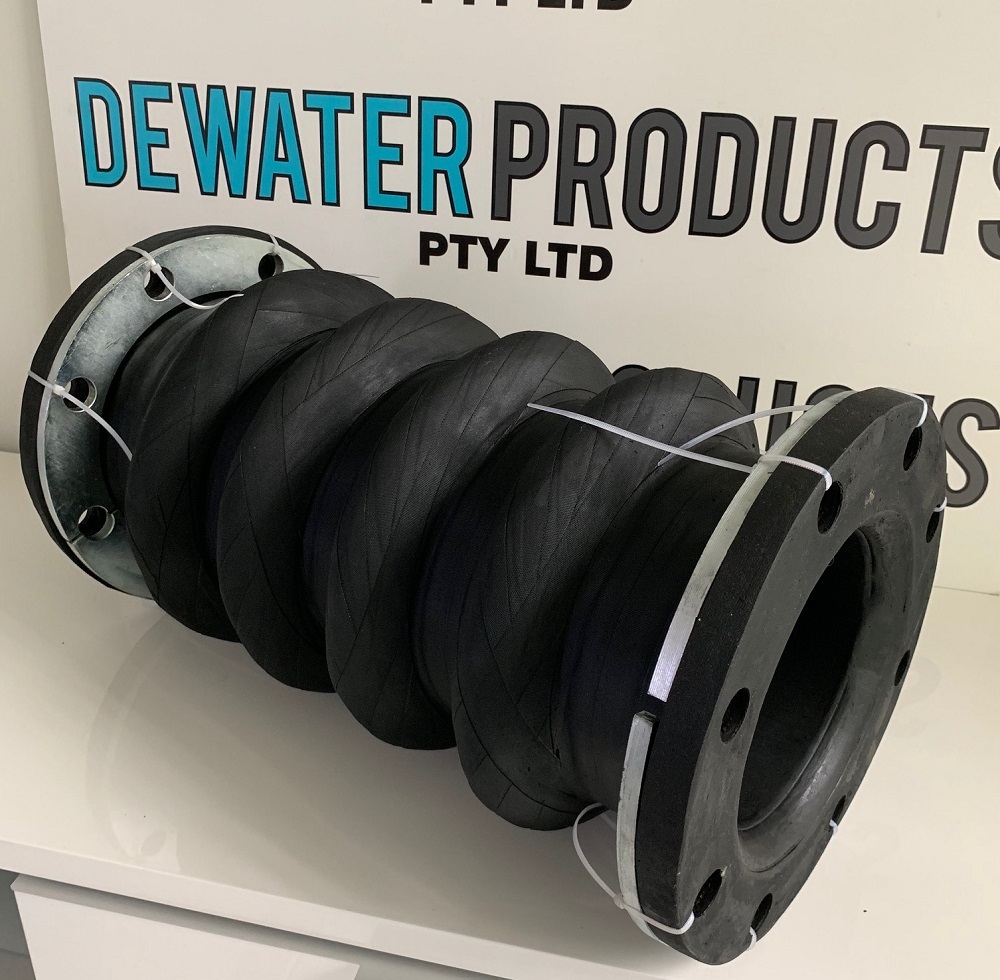

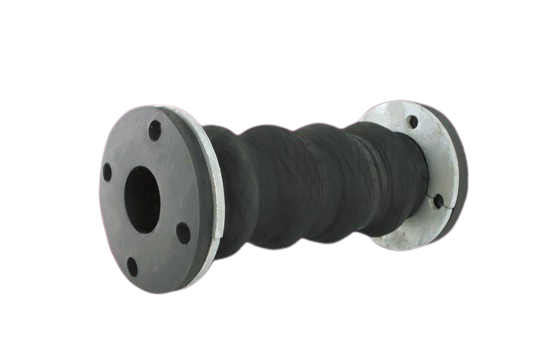

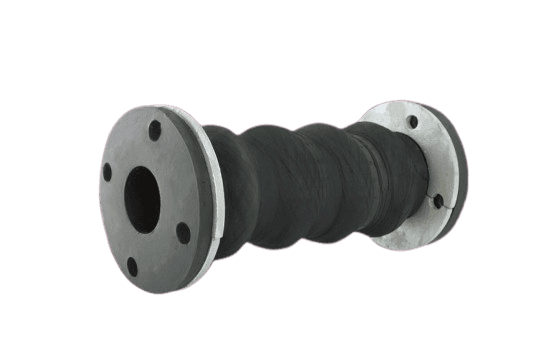

The Quadruple Arch Rubber Expansion Joint has four arches and provides a lot of movement to a pipeline.
Discounts apply to your total order quantity across all products
Select Size & Quantity
Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
Description
The Quadruple Arch Rubber Expansion Joint has four arches and provides a lot of movement to a pipeline. Allowable movements of 80mm and upwards are easily achievable. Tie Rods/Control rods should be installed if excessive movement is likely to occur. Available in size range DN50 (2") to DN1500 - Available in a range of sizes - contact us for a quote. - Available in a range of flange specifications - contact us for a quote. - Available in a range of rubber material options such as NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only. For a 316 stainless steel backing ring option - submit a separate quote request For outdoor use and corrosive environments, Passivation must be requested on the 316 stainless steel quote request and highlighted on the purchase order.
