Defender Valves
PTFE Lined Butterfly Valve - Universal Wafer
1 / 3
Defender Valves
PTFE Lined Butterfly Valve - Universal Wafer
Free delivery to metro areas

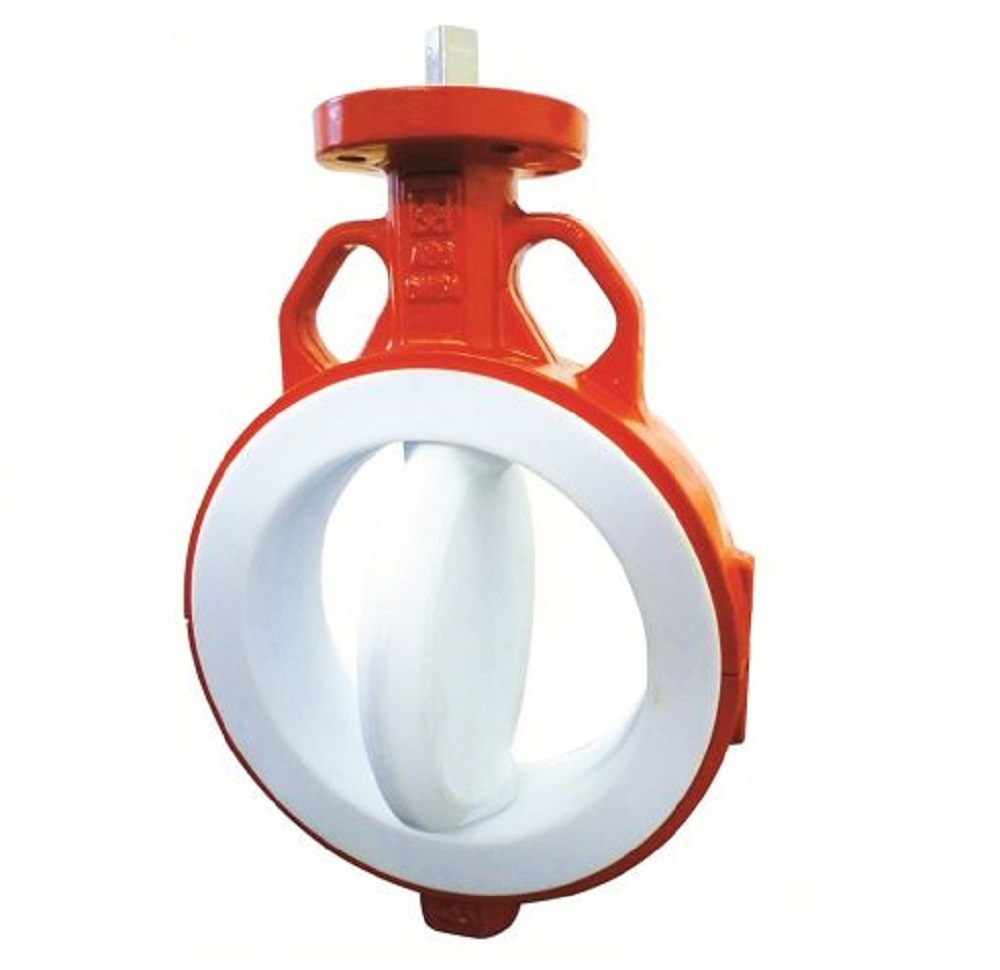

PTFE Lined Butterfly Valve with disc and seat fully encapsulated with PTFE. Universal wafer pattern to suit ANSI 150LB/Table D/E flanges.
Size:from 50mm
Body:Cast Iron with PTFE Lining/PTFE
Max Temp:-20°C to +120°C
Bulk Pricing:2-4 qty5% off5-9 qty10% off10+ qty15% off
Discounts apply to your total order quantity across all products
Select Size & Quantity
Ex GST
Lead time: 1 to 3 weeks
Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
SKU:PTFELBFLYW
Lead Time:1 to 3 weeks
Description

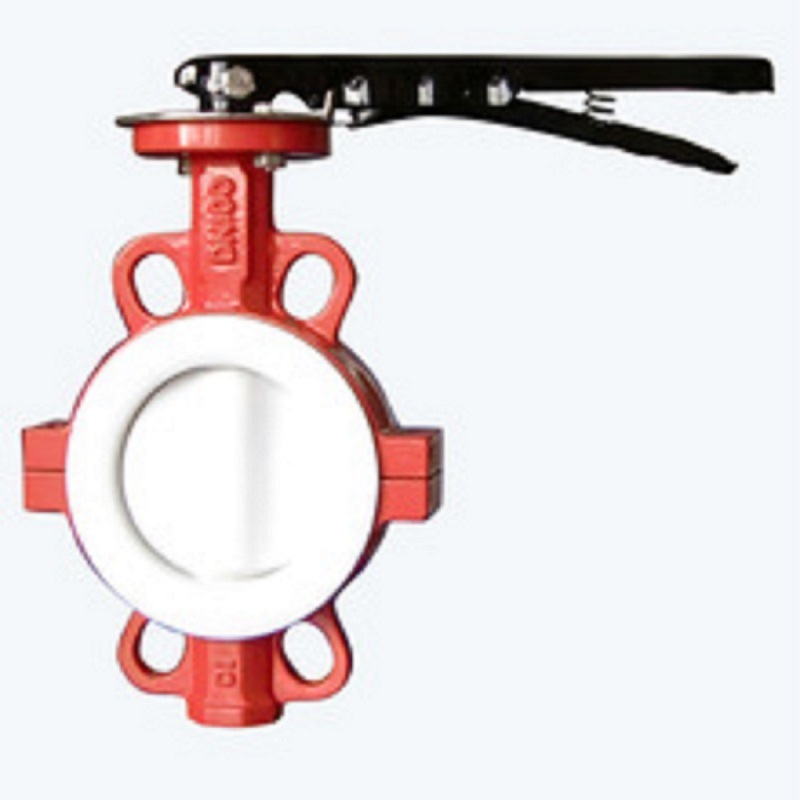

PTFE Lined Butterfly Valve with disc and seat fully encapsulated with PTFE. Universal wafer pattern to suit ANSI 150LB/Table D/E flanges. Lever operated for smaller sizes, gearbox operated for larger sizes.
Features
- •Disc and seat fully encapsulated with PTFE
- •Maximum operating temperature: 120°C
- •Rated to PN10 working pressure up to DN200
- •Universal wafer pattern (ANSI 150LB/Table D/E)
- •Lever operated (small sizes) / Gearbox operated (large sizes)
- •Excellent chemical resistance
- •12 months warranty on manufacturing defects only
Applications
- •Chemical process control
- •Corrosive fluid isolation
- •Acid and alkali handling
- •Food and beverage processing
- •Pharmaceutical production
- •Water treatment chemicals
