Bore-Flex Rubber

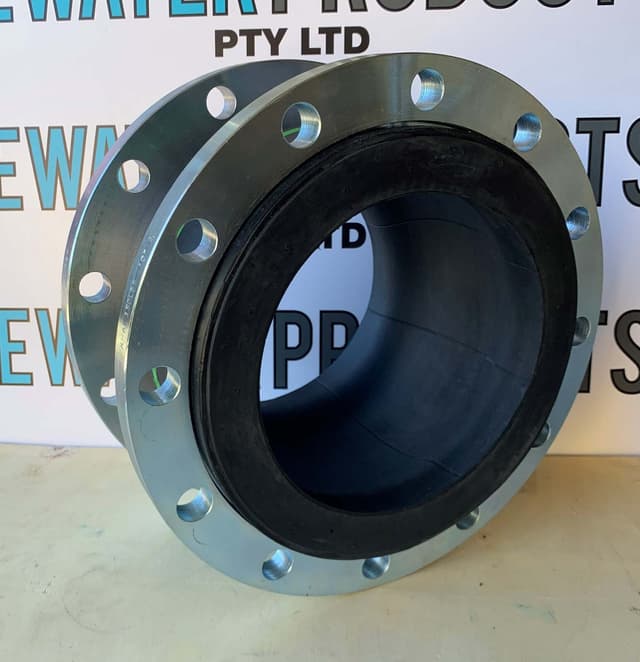

FSF-B Single Sphere Rubber Expansion Joint fitted with Table E or ANSI 150LB Zinc flanges
1 / 4
Bore-Flex Rubber
FSF-B Single Sphere Rubber Expansion Joint fitted with Table E or ANSI 150LB Zinc flanges
Free delivery to metro areas

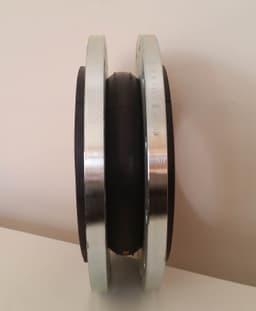

FSF-B single sphere rubber expansion joint with shorter face-to-face dimension (130mm overall length).
Size:from 40mm
Body:EPDM Rubber / Zinc plated steel
Max Temp:-20°C to +110°C
Bulk Pricing:2-4 qty5% off5-9 qty10% off10+ qty15% off
Discounts apply to your total order quantity across all products
Select Size & Quantity
Ex GST
Lead time: 3 weeks if out of stock
Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
SKU:FSF-BREJ
Lead Time:3 weeks if out of stock
Description
FSF-B single sphere rubber expansion joint with shorter face-to-face dimension (130mm overall length). Ideal for confined installations. Functions as a vibration eliminator or rubber bellows. EPDM rubber with zinc plated Table E or ANSI 150LB flanges. Other flange specifications on request.
Features
- •Compact design - 130mm overall length
- •EPDM rubber construction (NBR, Viton available)
- •Zinc plated steel Table E or ANSI 150LB flanges
- •316SS flanges available on request
- •Ideal for confined installations
- •8mm compression, 3mm elongation allowable
- •Absorbs vibration and noise
- •Tie rods/control rods recommended for excessive movement
- •12 month warranty on manufacturing defects
Applications
- •Confined space installations
- •Pump connections - absorb vibration
- •Compact piping systems
- •Retrofit applications with limited space
- •HVAC systems
- •Water and wastewater systems
