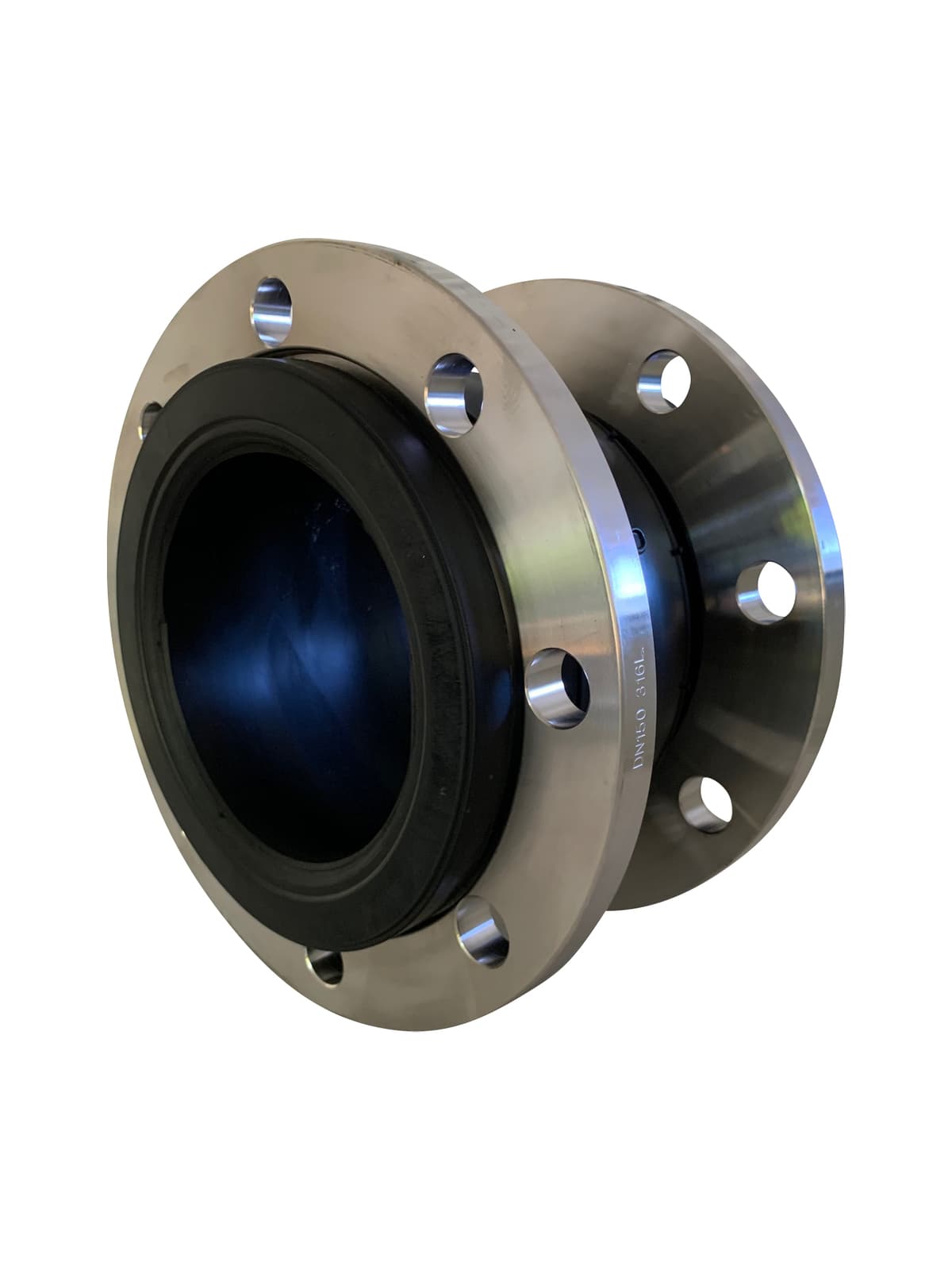

316SS Flanged FSF Single Sphere Rubber Expansion Joint Table E or ANSI 150LB
316SS Flanged FSF Single Sphere Rubber Expansion Joint Table E or ANSI 150LB
Free delivery to metro areas
The FSF Single Sphere Rubber Expansion Joint fitted with 316 stainless steel flanges. Available in specification options AS2129 Table D, Table E, AS4087 PN16, or ASME 150/ANSI 150LB.
Discounts apply to your total order quantity across all products
Select Size & Quantity
Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
Description
The FSF Single Sphere Rubber Expansion Joint fitted with 316 stainless steel flanges. Available in specification options AS2129 Table D, Table E, AS4087 PN16, or ASME 150/ANSI 150LB. The FSF model is a common model in Australia. Also known as a vibration eliminator or rubber bellow, the rubber construction allows your pipes to expand and contract, flex, remove vibration and noise, and provide angular movement. Movements of 4mm to 25mm are allowable on the FSF model. Tie rods/Control rods should be installed when excessive movements are likely to occur. These are sold as a seperate item on the website. Available in size range DN25 (1") to DN600 (24") Please advise if the flanges on each end are different or the same. - Available in a wide range of flange specifications - contact us for a quote. - Available in a range of rubber materials such as Neoprene, Nitrile, Buna-N, NBR, EPDM, Viton - contact us for a quote. - 12 months warranty on manufacturing defects only. Indoor use only. For outdoor use and corrosive environments, Passivation must be requested on the quote request and highlighted on the purchase order.
Features
- •Size From: 32mm
- •Element: EPDM/316 Stainless Steel flanges
- •Pressure Range: 0 TO 16 BAR
