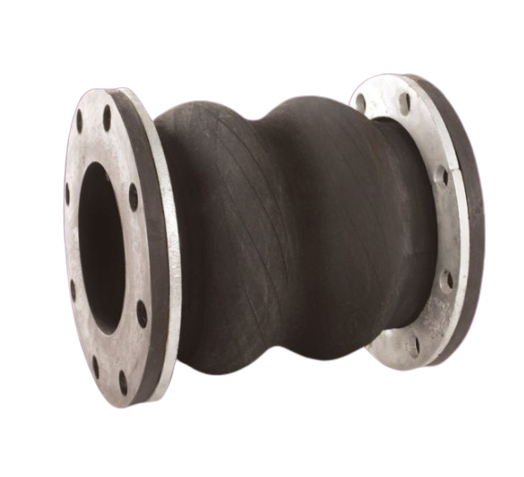

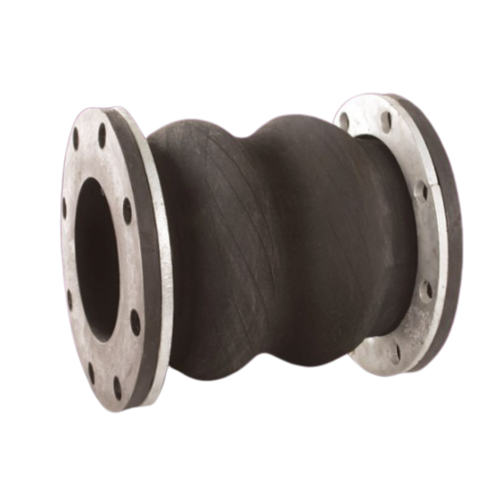

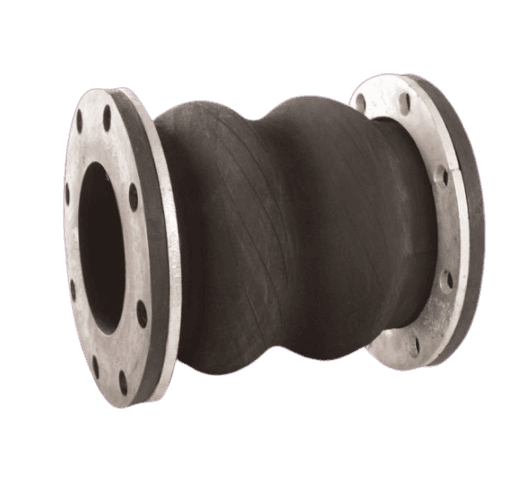

Double Arch Rubber Expansion Joint - unfilled arch
Double Arch Rubber Expansion Joint - unfilled arch
Free delivery to metro areas
The Double Arch Rubber Expansion Joint with an unfilled arch provides greater movement and flexibility than a Single Arch.
Discounts apply to your total order quantity across all products
Select Size & Quantity
Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
Description
The Double Arch Rubber Expansion Joint with an unfilled arch provides greater movement and flexibility than a Single Arch. Movements of 40mm and upwards are acheivable with two arches. Tie rods/Control rods should be installed if excessive movement is likely to occur. Available in size range DN50 (2") to DN1000 - The double arch can be unfilled or filled depending on the application and customer requirements. - More allowable movement than a single arch rubber expansion joint. - Available in a wide range of rubber materials. - Available in a wide range of flange specifications such as AS4087 PN16, AS2129 Table D, ANSI 150LB/ASME 150. - Available in a wide range of flange/backing ring materials such as 316 stainless steel, hot dipped galvanised, and zinc plated steel. - 12 months warranty on manufacturing defects only. For a 316 stainless steel backing ring option - submit a separate quote request For outdoor use and corrosive environments, Passivation must be requested on the 316 stainless steel quote request and highlighted on the purchase order.
