Description

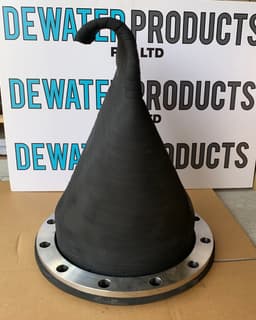

Size range from DN80 to DN1600 The DB-2 Flanged Duckbill Check Valve model can be bolted to the mating flange at the end of a pipe to prevent back flow, or be bolted to a storm water concrete headwall. Available in a range of different flange specifications such as AS2129 Table E, Table D, ASME 150/ANSI 150LB, AS4087 PN16. Cracking pressure is from 25cm of water/2.48kPa - the valve does not fully open at 25cm of water, full flow is required to fully open the valve with no back flow on the outside of the valve*. ( Curved bill ) Head loss is 2kPa average. 2 design options as follows: - Flared model - Flat bottom model Choosing a Curved Bill or Straight Bill: - Curved Bill model - provides 50% more sealing area compared to the straight bill ended duckbill check valve, enabling a better tighter seal when debris are present. Does require a slightly higher cracking pressure to crack open the valve compared to the Straight Bill model. - Straight Bill model - cracks open with minimal cracking pressure but does not fully open the valve. If debris are present there is a high chance it will effect sealing performance. Supplied with a 316 stainless steel backing flange, the rubber duckbill check valve will last for many years in operation. Choose the Neoprene rubber material if the duckbill check valve will be fitted near the Ocean and in contact with salt water. - Available in a range of different flange specifications on request. - Available in a range of different rubber materials on request, such as Neoprene, NBR, EPDM, Viton etc. - 12 months warranty on manufacturing defects only.

Features

• •Size From: 80mm
• •Body: Neoprene/316ss
• •Pressure Range: 0-1 BAR
