Eccentric Unfilled Arch Reducing Rubber Expansion Joint
Eccentric Unfilled Arch Reducing Rubber Expansion Joint
Free delivery to metro areas

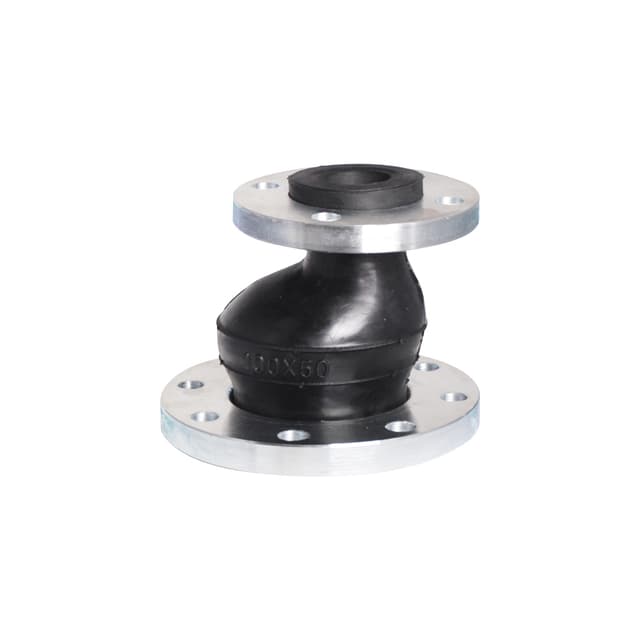

Eccentric Unfilled Arch Reducing Rubber Expansion Joint, a hand made model with a single unfilled arch.
Discounts apply to your total order quantity across all products
Select Size & Quantity
Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
Description
Eccentric Unfilled Arch Reducing Rubber Expansion Joint, a hand made model with a single unfilled arch. Available with backing rings to suit your specifications. Pressure rating to be advised. Available in size range DN50 (2") to DN600 (24") The unfilled arch model will provide good movements, but should not be used on a slurry line or pump suction line. A filled arch model should be used instead. Rubber material EPDM with galvanised backing rings as standard. - Available in a range of flange specifications - contact us for a quote - Available in a range of rubber materials - contact us for a quote - 12 months warranty on manufacturing defects only. For a 316 stainless steel backing ring option - submit a separate quote request For outdoor use and corrosive environments, Passivation must be requested on the 316 stainless steel quote request and highlighted on the purchase order.
Features
- •Size From: 50mm x 65mm
- •Body: EPDM / Zinc Plated Steel
- •Pressure Range: 0 to 16 BAR
