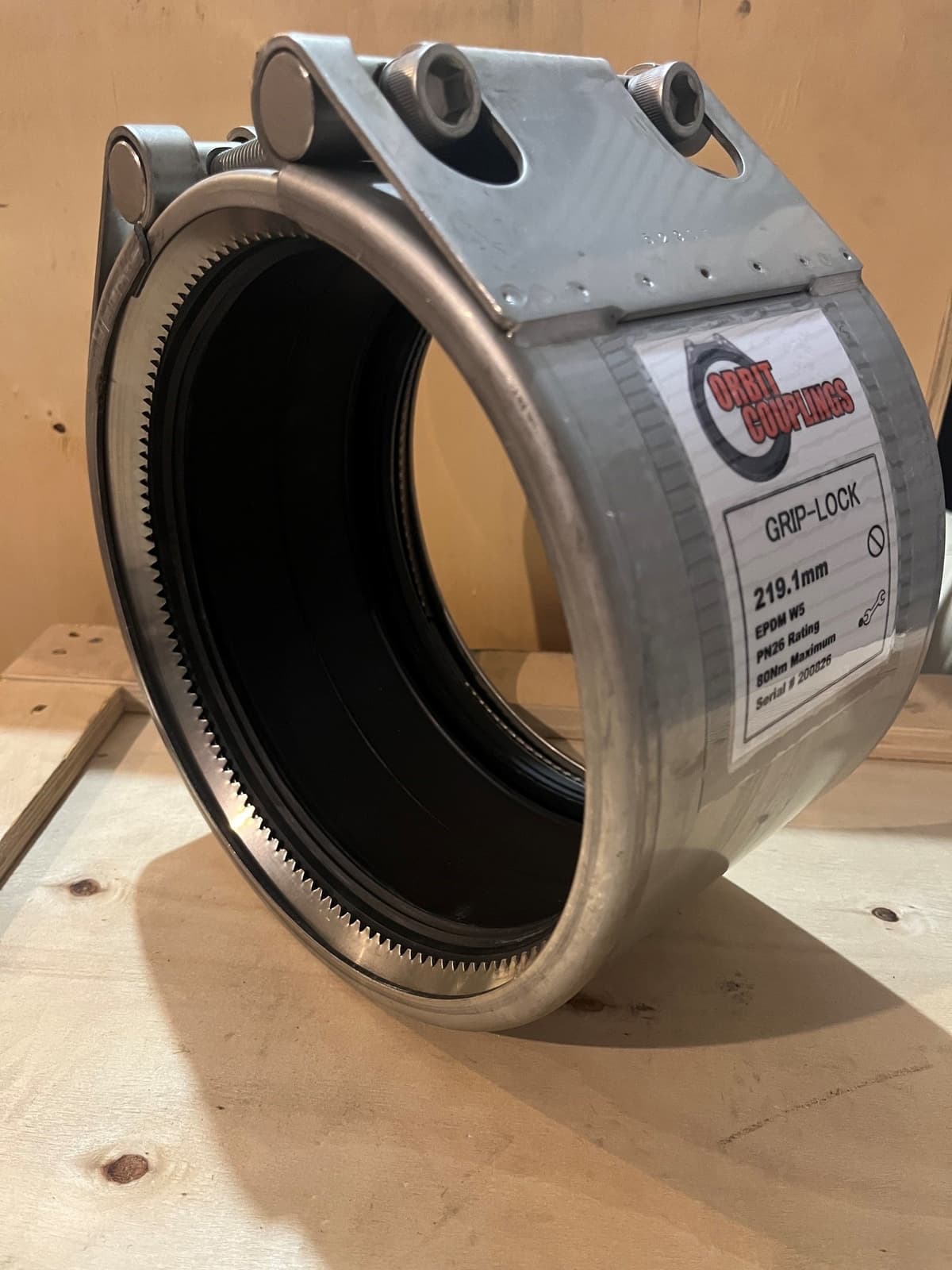

Orbit Grip-Lock Restrained Pipe Coupling
Orbit Grip-Lock Restrained Pipe Coupling
Free delivery to metro areas
The Orbit Grip-Lock is a high pressure, axially restrained pipe coupling for connecting metal pipe. Grip rings and teeth lock the pipes together as the bolts are tightened, and solid bars stop the...
Discounts apply to your total order quantity across all products
Select Size & Quantity
Please check product sizing carefully before ordering.
Applies once per product type. May extend lead time.
Please select now if required—certificates cannot be added after quote submission.
Description
The Orbit Grip-Lock is a high pressure, axially restrained pipe coupling for connecting metal pipe. Grip rings and teeth lock the pipes together as the bolts are tightened, and solid bars stop the connection being pushed or pulled apart, so it resists pull out. Made from 316 stainless steel (W5) with an EPDM, NBR, Viton or silicone seal. For metal pipe materials only. Pressure ratings (16 to 42 bar depending on size) apply to carbon steel pipe only. Measure your pipe outside diameter before selecting the size. Pipe OD range, length, bolt torque and weight for each size are in the datasheet. Size range 76.3mm to 406.4mm.
Features
- •Axially restrained, pull out resistant
- •High pressure coupling for metal pipe only
- •Grip rings and teeth lock the pipes in place
- •316 stainless steel W5 body
- •EPDM, NBR, Viton or silicone seal
- •Size range 76.3mm to 406.4mm
